Fotonic Sensor

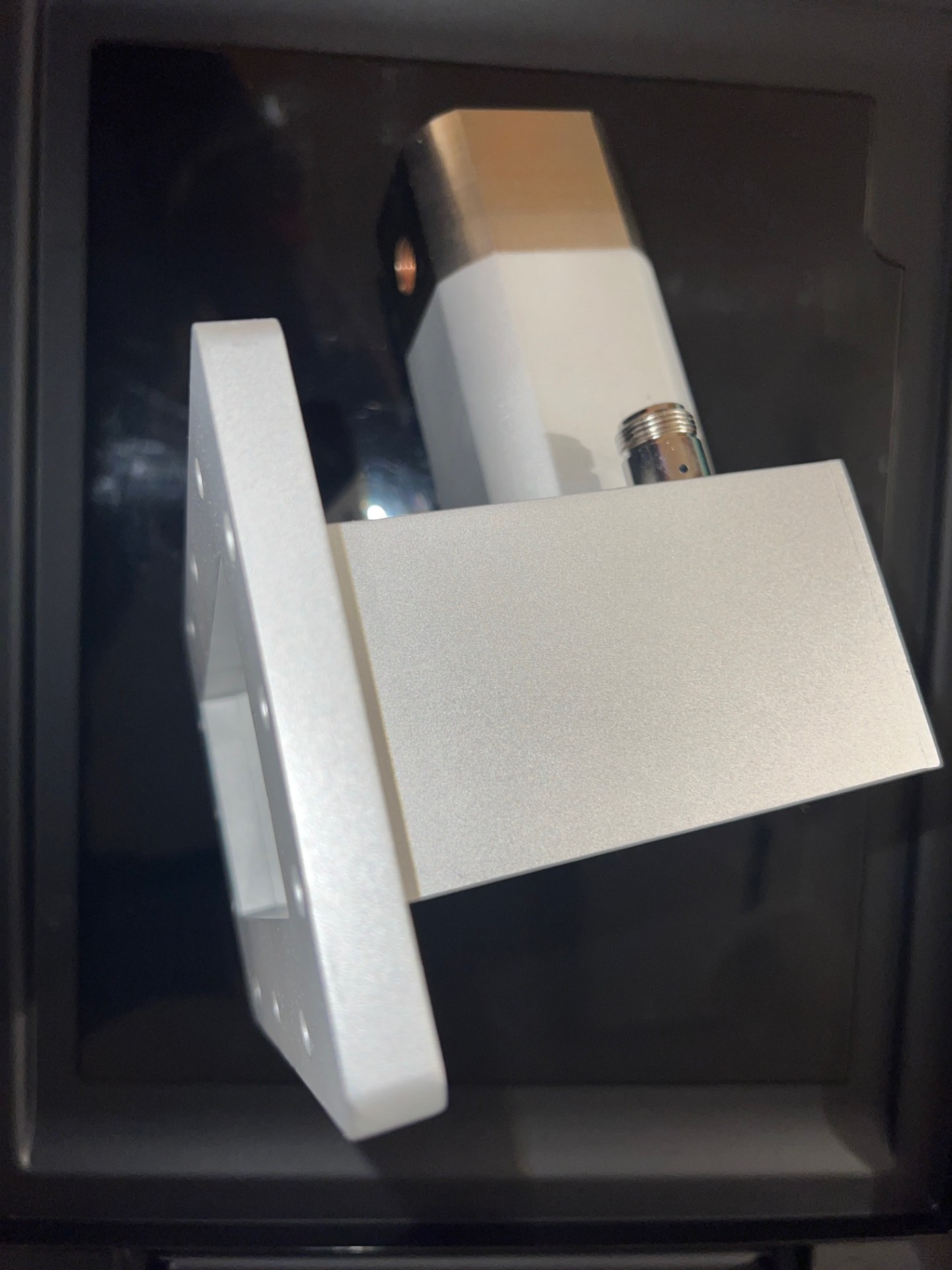

• Creatively designed, compact, dummy load offers high power capacity for its size.
• This is an aluminum WR430 rectangular waveguide component engineered to handle up to 15kW of microwave power.
• Plated brass water cooling section with 1/4" female threaded water-cooling ports.
• Equipped with single directional coupler (nominally 60dB) with N-type power measurement connection.
• Detailed photos available upon request.

• Water-cooled 1kW magnetron head with stainless steel enclosure.
• Goods look to be in new condition.  They have not been tested due to lack of a compatible power supply at Cline Innovations.
• WR284 waveguide output.

Vacuum Package Sealing System

Multivac Model A 300/22

Sodasorb Filter Element - New

PolyPro 5µm Filter Element - New

Single Stage Vacuum Inlet Trap - 4" - Right Angle

50L LN2 Dewar - Dispenses Liquid or Gas

Capacitance Gauge - New in Box

Mykrolis is formerly Millipore Microelectronics

Solar Cell Probe Station

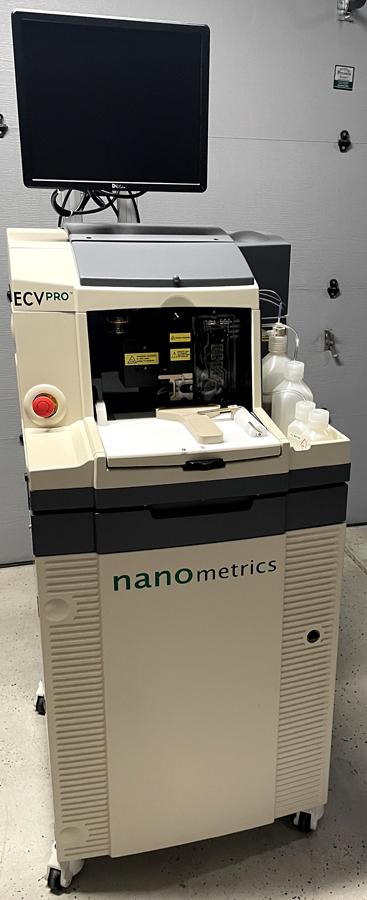

Nanometrics ECVPro Carrier Concentration Profiler

• For Si, SiC, II-VI, III-V & III-Nitrides
• Hamamatsu LC8 UV Light Source
• ECVision In-Situ Camera System
• Dual Frequency Measurement
• Carrier Frequency: 0.3kHz to 50kHz
• Depth Range: 0.05μm to 50μm
• Depth Resolution: 1nm
• Dell PC, Windows 8 OS, ECV Pro SW Version 2.4.6.0

     Installation & Training Available

• Magnetron head with stainless steel enclosure.
• This MH3.0W-SL model number is similar to the more standard model number MH3.0W-S1.  The MH3.0W-S1 is rated for 3.0kW.
• Like the MH3.0W-S1, this magnetron head is assumed to be compatible with the Alter SM1150D (208V) or SM1150T (400V) power supply.
• Cline Innovations can seek more details on the specifications prior to purchase.

• One used unit available in inventory.  Unit is functional, but one or more precision dials need to be replaced before shipment.
• Actual unit may vary from one shown in photos.  We had 2 of these unit in stock, but only one is left in inventory.
• From National Electronics documentation: "...can be used to develop an impedance in the waveguide that is the reciprocal of the impedance of the applicator.  The sum of the two impedances is then seen by the power source as a matched load."
• At 2450MHz:
  • VSWR:  from 1 to 5
  • Power:  3kW
  • Waveguide type:  WR340

• Cline Innovations has muliple YJ1191A magnetron tubes in physical inventory.
• Both NEW-tested and USED-tested YJ1191A tubes are available as of 1/15/2025.
• All YJ1191A tubes are tested prior to sale.  Customer's can choose from units full microwave power output or lower power output unit depending on budget and application needs.
• Since tubes contain fragile components, Cline Innovations handles all tubes with care, regardless of vintage.  Cline Innovations double-boxes tubes when shipped to customers.
