in Horizontal Diffusion Furnaces
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 91036

Offered 2 Offered at $ 3,500.00 (each)

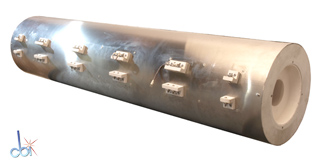

Furnace Tube
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price $ 3,500.00 (each)
Number of Units 2
Manufacturer MRL Industries
Model 400-918104
Maximum Temperature 1,200  ºC  (2,192 ºF, 1,473 ºK)
Other Information Zones: 3, center zone has 3 sections
Load zone: 10.00" long, 2.3 KW, 240 volt.
Center zone: 36.00" long, 5.6 KW, 240 volt.
Source zone: 10.00" long, 2.3 KW, 240 volt.
3.75" Refractory opening, 6" I.D.
Thermocouples not included.
See furnace diagram in "other images" link 5
All heater elements have individual connection terminals, diagram shown is for rated voltage and power
Power Requirements 240 V
Year of Manufacture 1994
Exterior Dimensions
  Width 14.000  in  (35.6 cm)
  Height 64.000  in  (162.6 cm)
Weight 96  lb  (44 kg)
