Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Kuroda Precisio |
Model | SPG-30 |
Description | Aspherical Grinding System |
Plate Speed | 16 RPM |
Plate Drive | 2.50 HP |
Wafer Size Range |  |
Maximum | 75 mm |

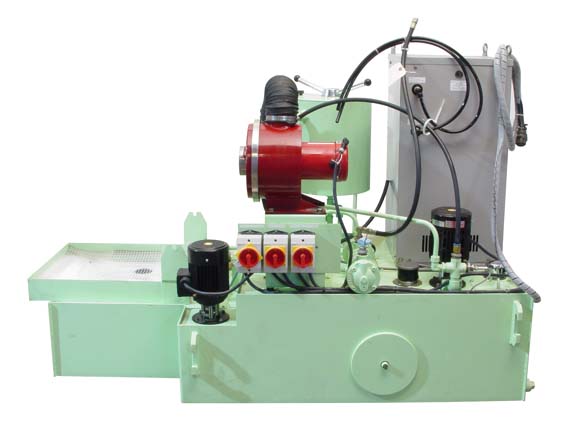

Slurry Tank Capacity | 2.35 L (0.62 gal, 0.52 Br gal) |
Accessories | Optional equipment not included with system Noritake Diamond Wheels
- Size: 180mm Dia x 20mm T x 50mm H
- P/N: 247623, 247622, 247624, 282133, 2821991, 995106, 282133
Fanuc A6 Series AC Motors--NEW
- P/N: A06B-0127-B077/02320--Qty 1
- P/N: A06B-0127-B177--Qty 1
|
Other Information | Specifications: Workpiece material: Glass Max substrate: 300mm X Axis Specifications:
- Stroke: 300mm
- Straightness: 4µm/300mm
- Feed rate: 1-1000mm/min
- Least input increment: 0.1µm
- Control: Totally closed loop by linear scale
Y Axis Specifications:
- Stroke: 300mm
- Straightness: 4µm/300mm
- Feed rate: 1-1000mm/min
- Least input increment: 0.1µm
- Control: Totally closed loop by linear scale
Z Axis Specifications:
- Stroke: 120mm
- Straightness: 4µm/120mm
- Feed rate: 1-1000mm/min
- Least input increment: 0.1µm
- Control: Totally closed loop by linear scale
Spindle Specifications:
- Speed: 500-3600rpm, infinitely variable.
- Spindle motor: 1.5kW, AC200V
- Grinding wheel: Metal bonded diamond
- Gridnding wheel size: ø180mm x ø50.8mm x t20mm

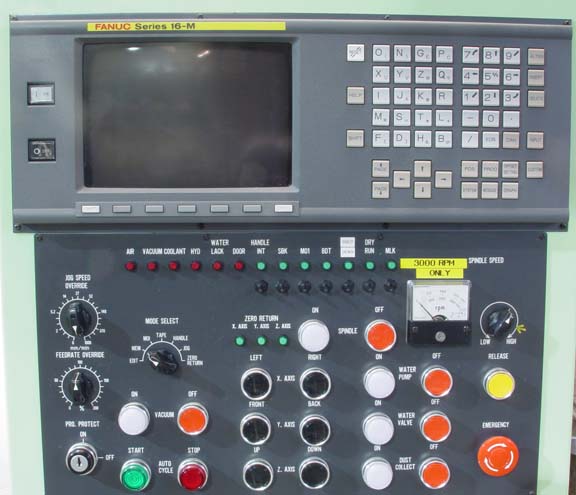

Control Specifications
- FANUC 16M NC control unit
- Automatic operation is performed by PC data
NB: For more detailed information please open the "extended description" link above.
|
Extended Description |
Details at Kuroda SPG-30.pdf |
Power Requirements | 200-208 V
60.0 A
50/60 Hz
3 Phase
|
Year of Manufacture | 2000 |
Exterior Dimensions |  |
Width | 98.425 in (250.0 cm) |
Depth | 98.425 in (250.0 cm) |
Height | 92.520 in (235.0 cm) |
Weight | 8,818 lb (4,000 kg) |
