Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | Tenney |
Model | BTC |
Minimum Temperature | -73 ºC (-99 ºF, 200.00 ºK) |
Maximum Temperature | 200 ºC (392 ºF, 473 ºK) |
Heat/Cool Controls |  |
Control Type | Programmable |
Overtemperature Protection | YES |
Interface | RS 485 |

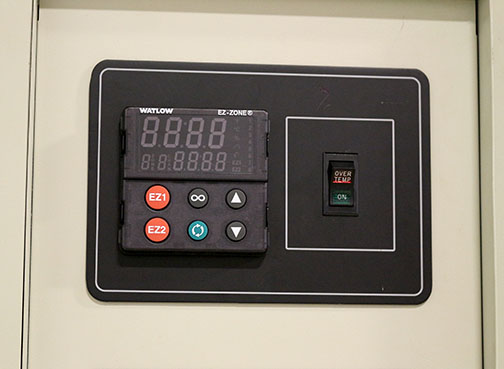

Controller Manufacturer/Model | Watlow EZ-Zone |
Capacity/Volume Box | 4.50 cu ft (0.13 cu m) |

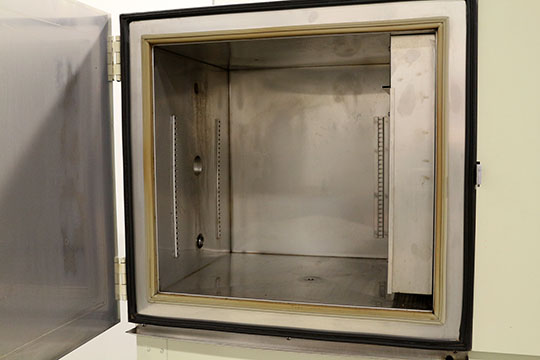

Chamber Characteristics |  |
Chamber Construction | Stainless Steel |
Number of Shelves Provided | 1 |
Number and Size of Access Ports | 1- 2 inch access port |
Number of Rack Positions | 12 |
Chamber Size |  |
Width | 20.00 in (50.80 cm) |
Depth | 18.00 in (45.72 cm) |
Height | 22.00 in (55.88 cm) |
External Cooling | Forced Air Cooled |
Refrigerant Type & Quantity | R-404A at 30 oz / R-23 at 85 psig |
Other Information | Watlow controller part number PM4B1EK-ARAAAA. |
Power Requirements | 230 V
23.0 A
60 Hz
1 Phase
|
Condition | Very Good |
Exterior Dimensions |  |
Width | 63.000 in (160.0 cm) |
Depth | 37.000 in (94.0 cm) |
Height | 38.000 in (96.5 cm) |
Weight | 576 lb (261 kg) |
