FULL DESCRIPTION of Item 45430

in Metal Etchers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 45430

Offered 1 Offered at Best Price

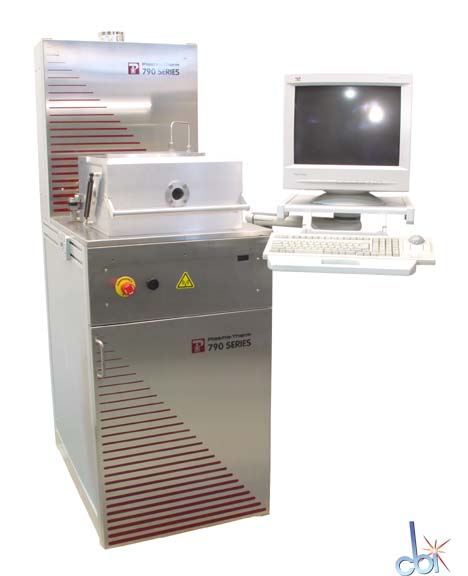

PLASMATHERM REACTIVE ION ETCH SYSTEM 200MM

Reactive Ion Etch System
11" Electrode

PLASMATHERM REACTIVE ION ETCH SYSTEM 200MM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Plasma-Therm
Model 790 11 RIE
Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm
Process Reactive Ion Etch System
Controller Type PC Controller Type

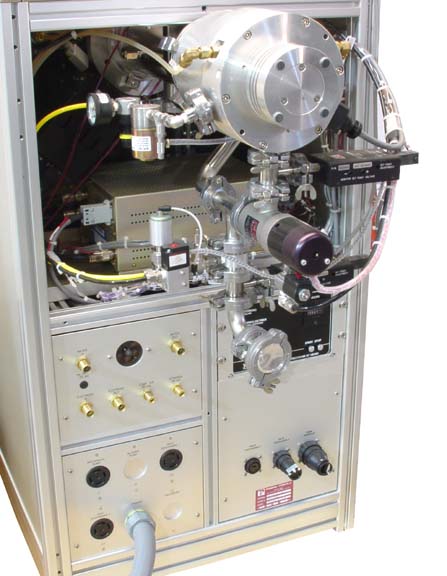

High Vacuum Pump Leybold 361C

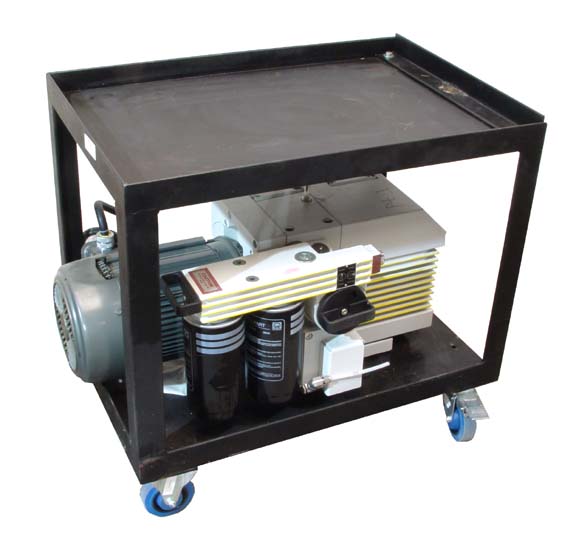

Roughing Pump Leybold D40BCS
RF Generator Model RFPP 5S, 500W
Automatch Text RFPP AM-5

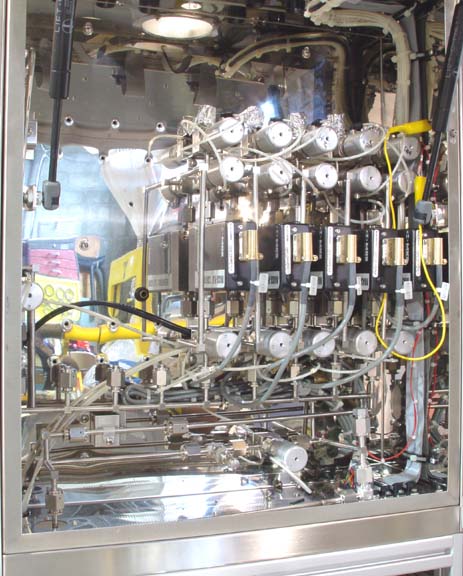

Number of Gas Inputs Five Gas
Chillers
  Number of Chillers 1

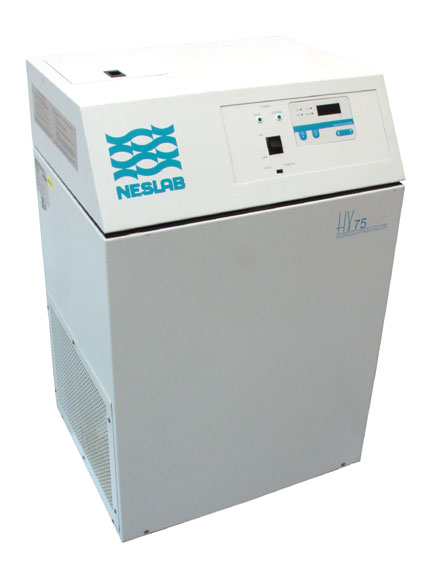

  Chiller #1Manufacturer/Model Neslab HX 75, Air cooled
Accessories



  • Leybold ITR100 active ion gauge
Other Information

Refurbishment to include:

Wet clean of gas shower and chamber
Servicing of throttle valve
Replacement of chamber viewing windows
Rebuilt Leybold 361C turbomolecular vacuum pump
Rebuilt Leybold D40BCS mechanical vacuum pump-Fomblin prepped. Oil not included.

NB: The Gas manifold will not be replaced.



Power Requirements 208 V     60 Hz     3¬†Phase
Year of Manufacture 1998

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
