Item ID: 106972

**1 Offered at Best Price**

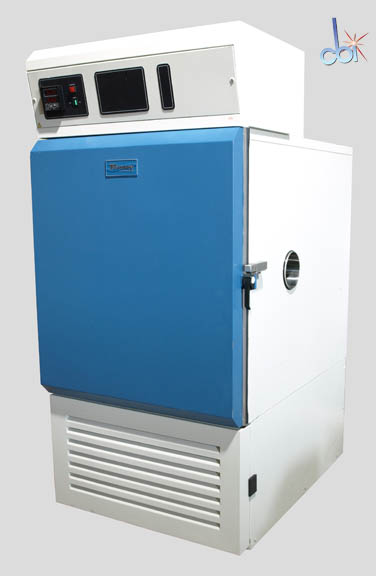

TENNEY TEMPERATURE CHAMBER 200ºC

Temperature Chamber with Watlow PM4B1EK-ARAAAA

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Tenney
Model	T20S
Minimum Temperature	-40 ºC (-40 ºF, 233.00 ºK)
Maximum Temperature	200 ºC (392 ºF, 473 ºK)
Heat/Cool Controls
Control Type	Programmable
Overtemperature Protection	YES
Controller Manufacturer/Model	Watlow PM4B1EK-ARAAAA
Capacity/Volume Box	19.00 cu ft (0.54 cu m)
Chamber Characteristics
Chamber Construction	Stainless Steel
Number and Size of Access Ports	(1) 6", (1) 2"
Chamber Size
Width	30.00 in (76.20 cm)
Depth	31.00 in (78.74 cm)
Height	36.00 in (91.44 cm)
External Cooling	Air Cooled
Refrigerant Type & Quantity	R-404A & R23
Other Information	Heater: 2.5 KW Compressor: 2 H.P. Single Stage Interface: Isolated RS422/RS423 Please inquire about availability of shelves.
Power Requirements	208 V 23.0 A 60 Hz 1 Phase
Exterior Dimensions
Width	42.000 in (106.7 cm)
Depth	56.000 in (142.2 cm)
Height	84.000 in (213.4 cm)
Weight	1,036 lb (470 kg)
