FULL DESCRIPTION of Item 42129

in Automated Coating and Developing Cluster System
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 42129

Offered 1 Offered at Best Price


SUSS MICROTEC GAMMA 60

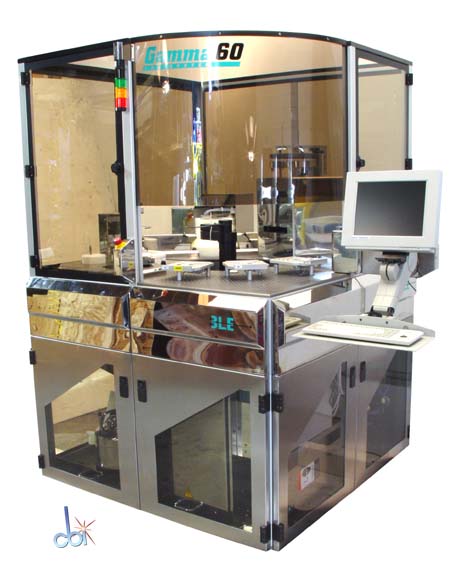

SUSS Gamma 60 Coating and Developing Cluster Tool

SUSS MICROTEC GAMMA 60
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Suss MicroTec
Model GAMMA 60
Wafer Size Range
  Minimum 50 mm
  Maximum 150 mm
  Set Size 75 mm
Number of Photoresist Develop Stations 1
Number of Photoresist Dispenses 3
Number of Developer Dispensers 3
Number of Developer Rinse Dispensers 2
Number of Vapor Prime Hot Plates 1
Number of Hot Plates 2
Number of Chill Plates 1
Number of Cassette Elevators 3
Wafer Edge Bead Removal YES
Wafer Backside Rinse YES
Wafer Handling Standard Robot
Accessories

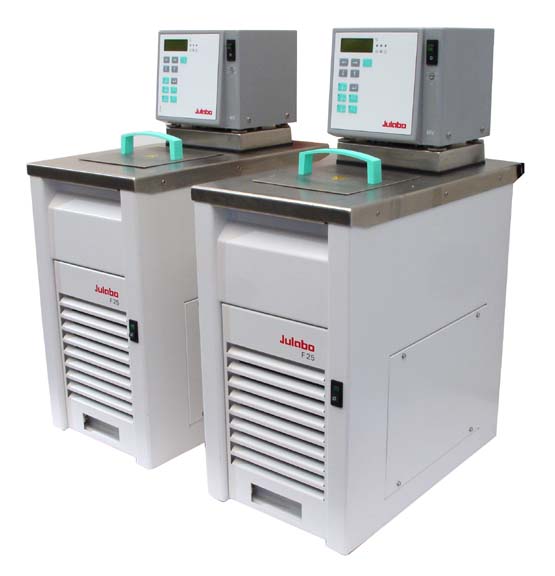

(2) Julabo Model F25 Chillers

Other Information

System currently for both 2" and 3" substrates. Genmark Model GENCOBOT IV

Power requirements: 400V, 3 phase, 50/60 Hz. NB: Transformer can be fitted to customer required voltage.

Year of Manufacture 2001
Condition Excellent
Exterior Dimensions
  Width 50.984  in  (129.5 cm)
  Depth 68.307  in  (173.5 cm)
  Height 74.606  in  (189.5 cm)
Weight 1,800  lb  (816 kg)
CE Marked YES
