FULL DESCRIPTION of Item 248944

in Wafer Inspection Microscopes
Deal directly with Owner:  Catalyst Equipment Corporation of Plano, Texas

Item ID: 248944

Offered 1 Offered at Best Price

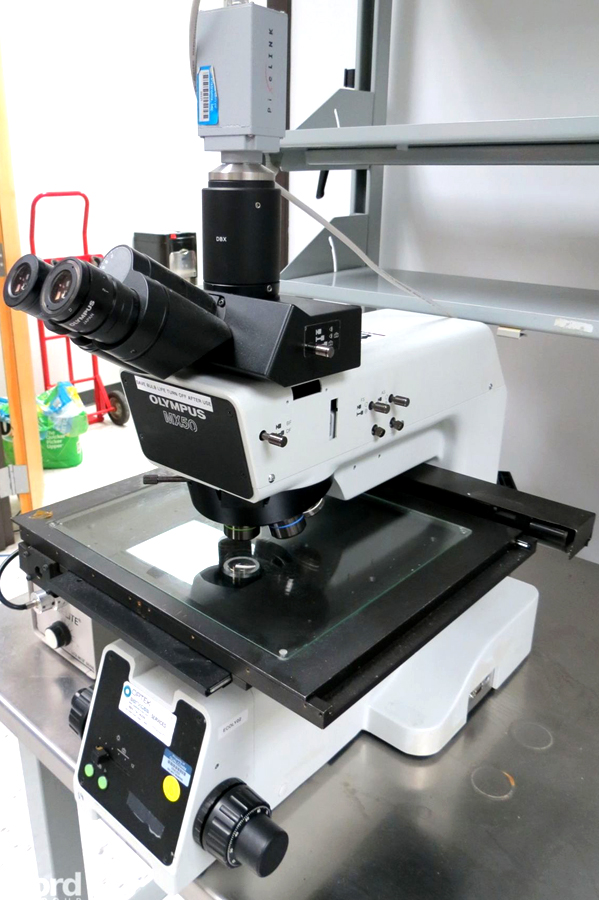

Olympus MX50 Wafer Inspection Microscope

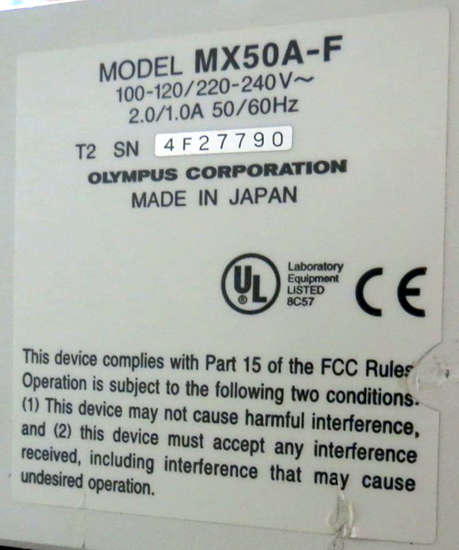

OLYMPUS MX50A-F  Reflected Light Microscope

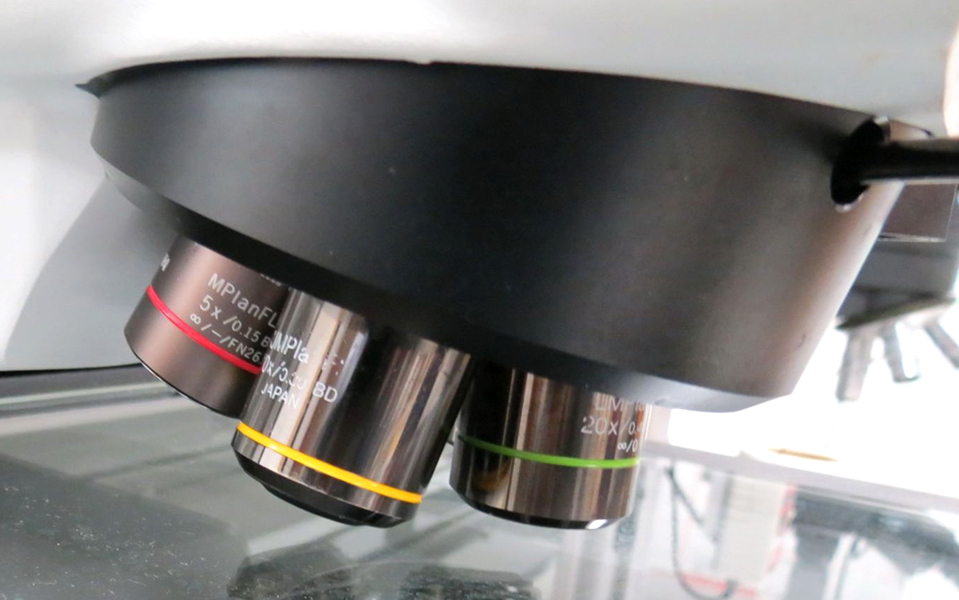

  • Five Position Motorized Turret with the Following Objective Lenses:
    • OLYMPUS MPlanFl N 5X/0.15 BD
    • OLYMPUS UMPlanFl 10X/0.30 BD
    • OLYMPUS LMPlanFl 20X/0.40 BD
    • OLYMPUS LMPlanFl 50X /0.50 BD
  • OLYMPUS Trinocular Head with 2ea OLYMPUS WH10X Eyepieces
    • OLYMPUS DBX Extension Tube with DIAGNOSTIC INST. 1.0X C Mount Adapter

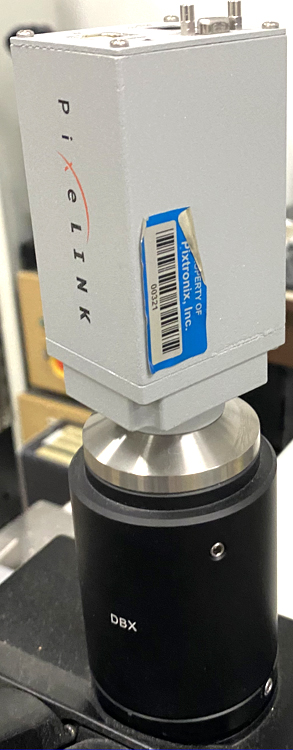

    • PIXELINK PL-B777U Solid State Camera
  • Specimen Stage with 150mm X 150mm XY Travel
  • OLYMPUS MX-LSH Lamp House with 12V 100W Halogen Lamp
  • 100/115VAC 50/60Hz Input Voltage



Olympus MX50 Wafer Inspection Microscope
  Click to see additional image(s)... other images

Location: Austin, Texas
Unit Price Unstated
Number of Units 1
Manufacturer Olympus
Model MX50
Microscope Type Upright
Microscope Configuration Brightfield & Darkfield
Illumination Type Reflected Light
Binocular Angle 45°-Low Eyelevel
Eyepieces
  Model WH10X/22
  Magnification 10 X
  Field Number 22 mm
Trinocular/Phototube Provided YES
Wafer Size 200.00  mm  (7.87 in)
Motorized Nosepiece YES
Multiple Objectives Models
  • OLYMPUS MPlanFl N 5X/0.15 BD
  • OLYMPUS UMPlanFl 10X/0.30 BD
  • OLYMPUS LMPlanFl 20X/0.40 BD
  • OLYMPUS LMPlanFl 50X /0.50 BD
Infinity Corrected Objectives YES
Power Requirements 100-240 V     2.0 A     50/60 Hz     1 Phase
CE Marked YES
Condition Very Good
