FULL DESCRIPTION of Item 84296

in Barrel/Box Plasma Etchers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 84296

Offered 1 Offered at Best Price

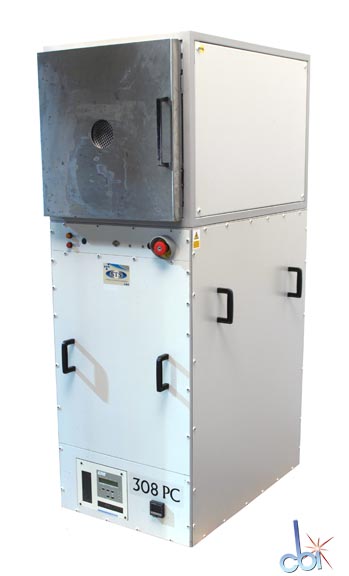

STS SURFACE TECHNOLOGY SYSTEMS BARREL PLASA ETCHER 600 WATT

Barrel Plasma Etcher
STS SURFACE TECHNOLOGY SYSTEMS BARREL PLASA ETCHER 600 WATT
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Surface Tech Sys
Model 308 PC
Etcher Type Barrel
Rated Power Output 600 Watts

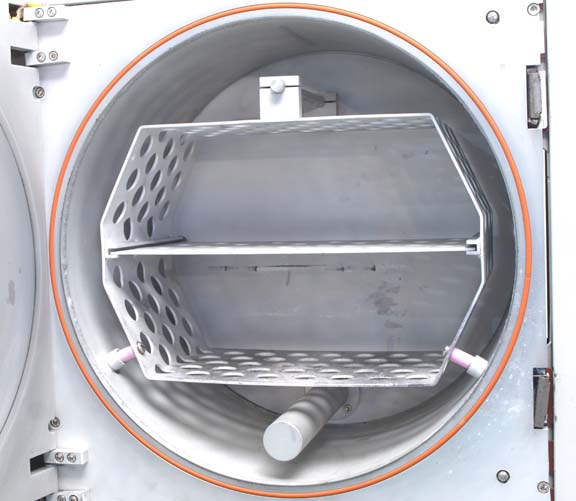

Reactor Center Cylindrical
Reactor Center Size
  Depth 10.00  in  (25.40 cm)
Reactor Center Material Aluminum
Automatching Network Included Yes
Vacuum Pump Included Yes

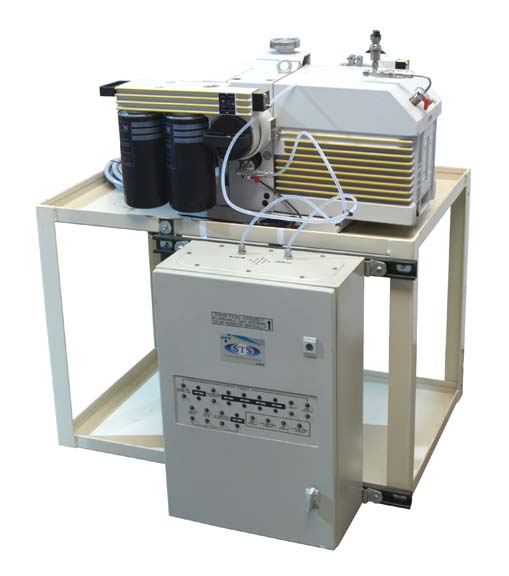

Vacuum Pump Model Leybold D65BCS

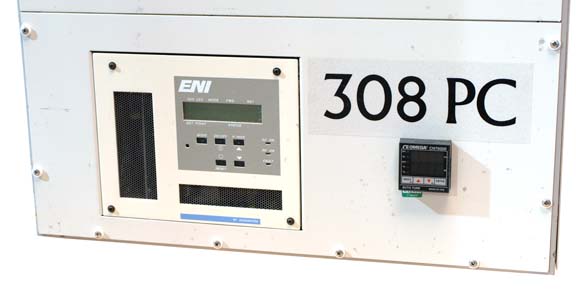

RF Generator Model ENI AGC-6B
Other Information Capacity:
100 of 100mm wafers
50 of 150mm wafers
Process gas: O2, 10% H2/N2
Pressure range: 0 to 2 Torr

Pump PFPE prepped

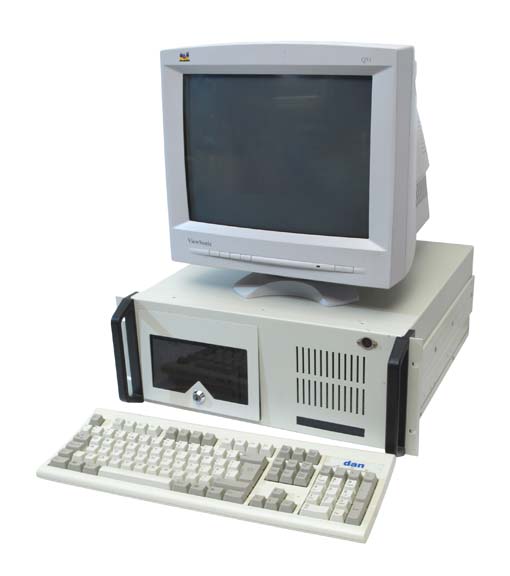

Computer/monitor Plasma power: 600 Watt
Chamber heat

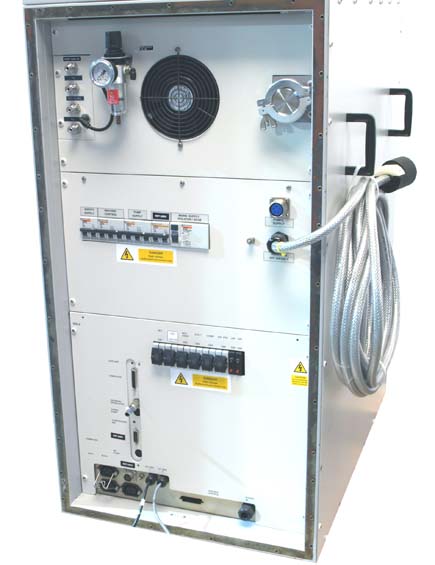

Power Requirements 208 V     25.0 A     50/60 Hz     3 Phase
CE Marked YES
Exterior Dimensions
  Width 21.000  in  (53.3 cm)
  Depth 32.000  in  (81.3 cm)
  Height 65.000  in  (165.1 cm)
