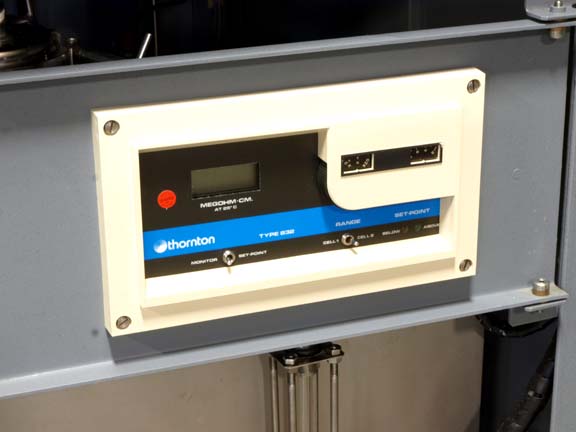

Other Information | Cleaning: 0.0 - 2.0 gr NaCl/in2, resistivity of
Solvent extract testing per DOD-STD-2000-1
Drying: 100%, no moisture remaining on product
Throughput: up to 200 ft2/hour, depending on product

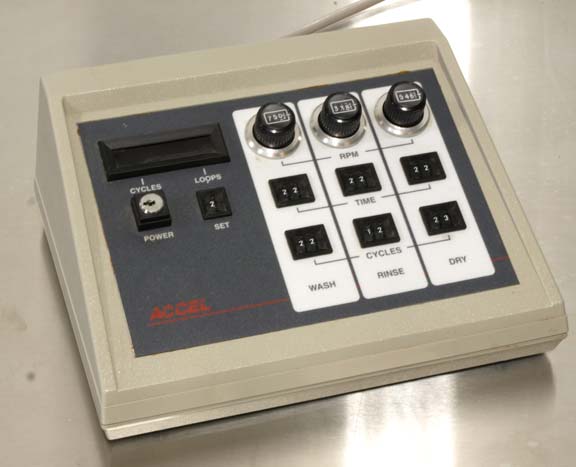

Speed range 0 to 1000 RPM

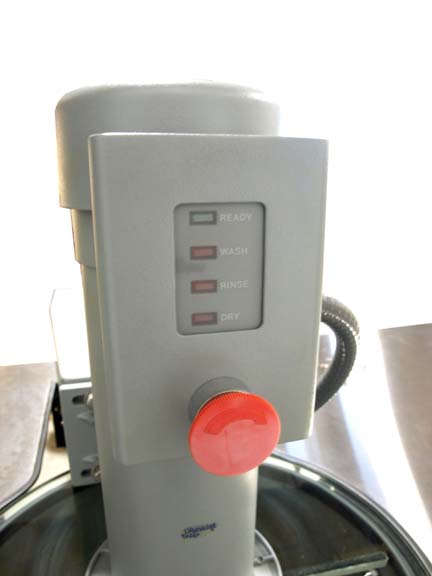

Process time:
Wash--0.5 to 2.0 minutes, typical
Rinse–1.0 to 2.0 minutes, typical
Dry–2.0 to 3.0 minutes, typical
Chemistries:
Aqueous, Bio T200A
Axarel, Ionox HC
Armakleen, Ionox FCR
Bioact, EC-7R IPA
Bioact EC-15, Zestron

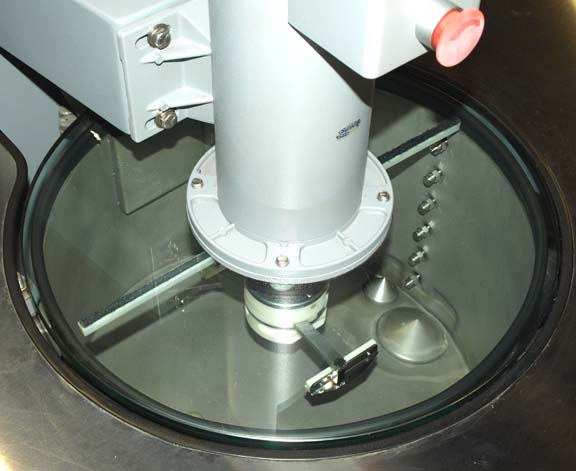

Microcel II same machine, chamber has 16" Dia. will handle a 13" board
More information available
|
