FULL DESCRIPTION of Item 98184

in Profilometers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 98184

Offered 1 Offered at Best Price

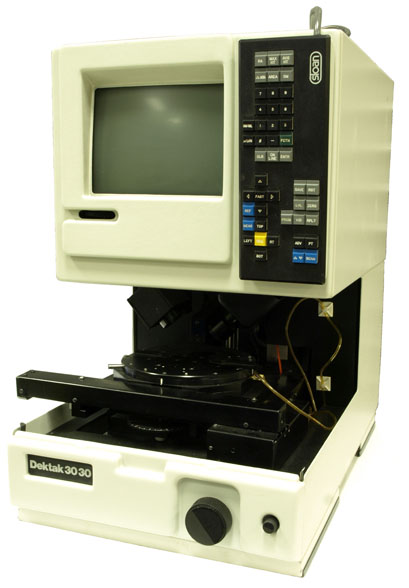

VEECO PROFILOMETER

Profilometer

VEECO PROFILOMETER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Veeco
Model Dektak 3030 Auto II
Description Profilometer
Controller Type Microprocessor Controller Type
Accessories

Thermal printer is included

Environmental shield is not included

Other Information
  • Measuring Range: 100Å to 1310kÅ
  • Scan Speed Range: Low, Medium, High
  • Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range
  • Data Points per micron: 0.04-- 40
  • Scan Length 50 microns to 50 mm
  • Leveling: 2 point programmable or cursor leveling
  • Maximum sample thickness: 1.75 inches

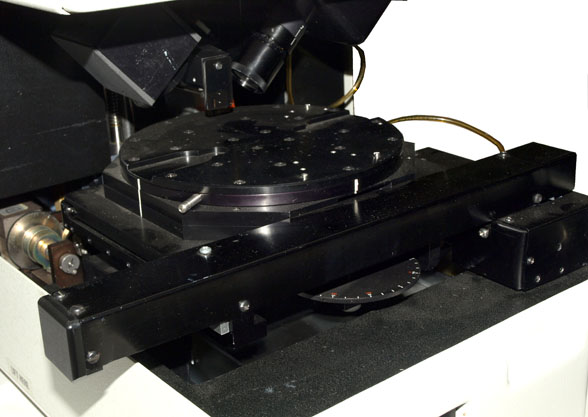

  • Motorized stage
  • Sample stage diameter: 6.375 inches
  • Sample stage translation (from center): X Axis, ±3 inches, Y Axis -3 inches
  • Stylus 12.5 micron radius (other sizes are optional)

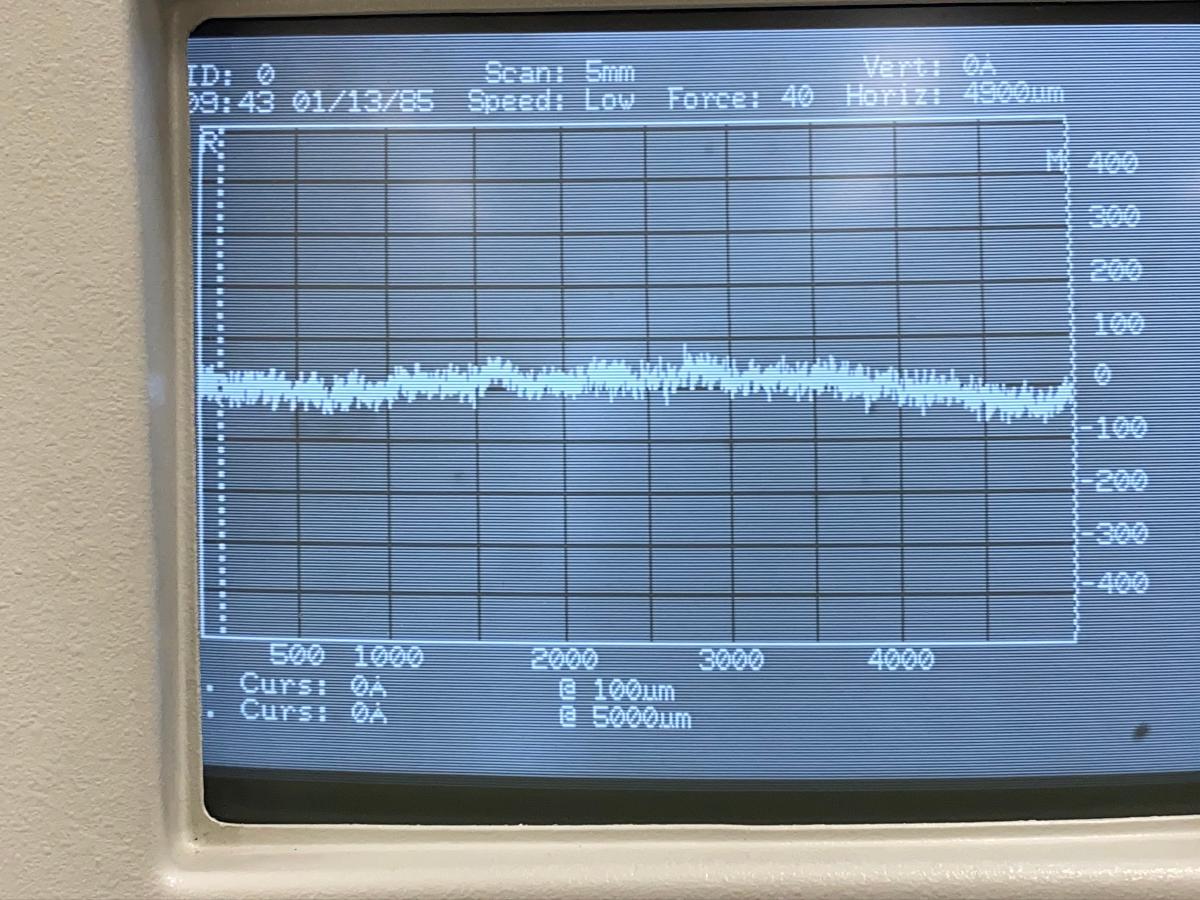

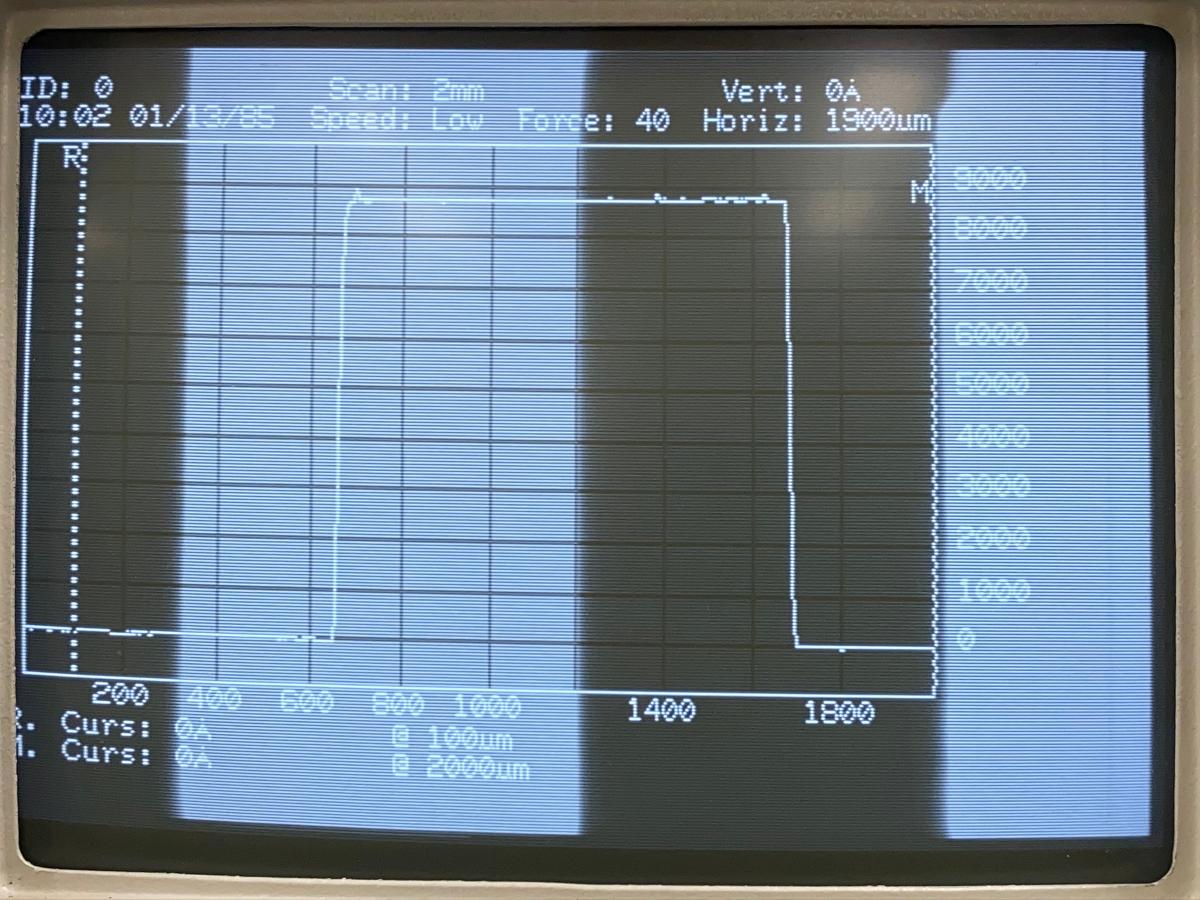

Unit is tested, see additional images 5 and 6 for sample scans

Power Requirements 120 V     2.0 A     50/60 Hz     1 Phase
