FULL DESCRIPTION of Item 45437

in Analytical Wafer Probers 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 45437

Offered 1 Offered at Best Price


MICROMANIPULATOR SEMI-AUTOMATIC PROBER

Semi Automatic Prober

 MICROMANIPULATOR SEMI-AUTOMATIC PROBER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Micromanipulator
Model 6640
Wafer Size Range
  Set Size 150 mm
Microscope Type Stereo Zoom
Vacuum Chuck
  Diameter 6.0000  in  (152.40 mm)
  Plating Material Gold Plated Brass
Vacuum Required 20.00  in Hg  (507.99 mm Hg)
Interface RS 232
Other Information

B&L Stereo Zoom 7 Microscope 10 to 70X

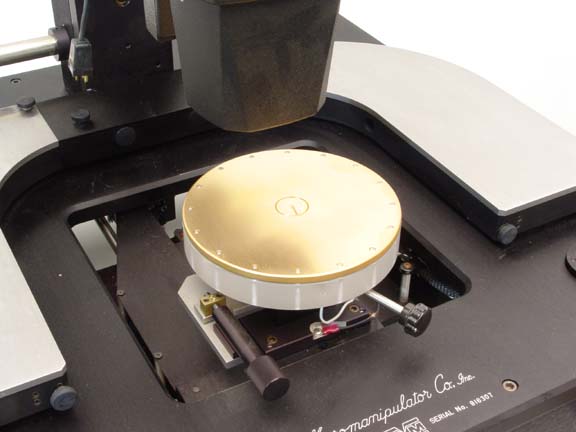

Vacuum Chuck

  • Flatness +-.0005"
  • Electrical isolation exceeds 500 mghohms at 500 VDC
  • Electrically connected via coax cable to BNC at rear of machine

    Fine Lift Control
  • Resolution: 0.3 micron per degree of revolution
  • Range: 0.5"
Power Requirements 120/240 V     15.0 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 24.000  in  (61.0 cm)
  Depth 24.000  in  (61.0 cm)
  Height 22.000  in  (55.9 cm)
Weight 151  lb  (68 kg)
