HYBOND SEMIAUTOMATIC EPOXY DIE BONDER

Semiautomatic Epoxy Die Bonder
HYBOND SEMIAUTOMATIC EPOXY DIE BONDER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Hybond
Model EDB 140A
Description Semiautomatic Epoxy Die Bonder
Accessories Features

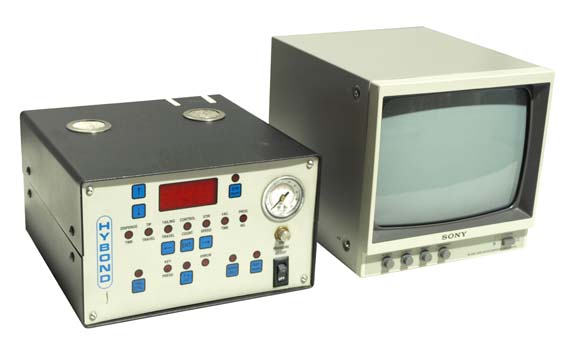

  • Black & White CCTV System
  • Package depth sensor for consistent & precise bond line thickness

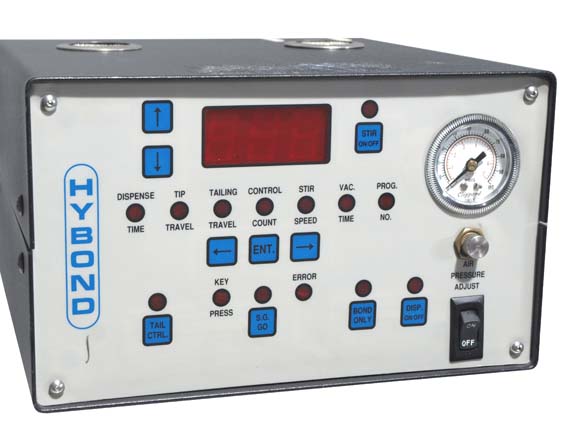

  • Programmable dispense control unit
  • Storage for up to 99 dispense programs
  • Manual X-Y alignment
  • PLC Control

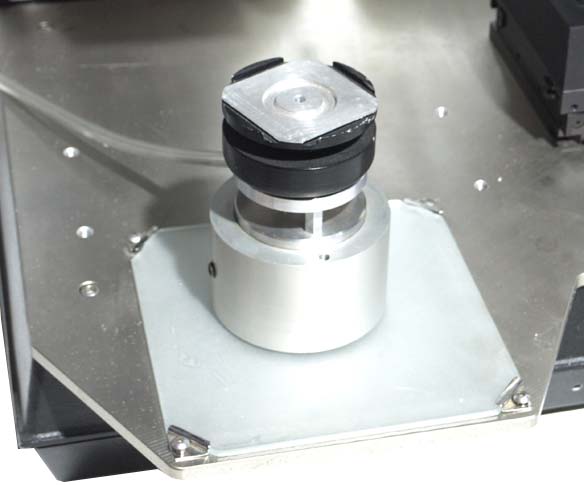

  • Waffle pack / loose die pickup pedestal

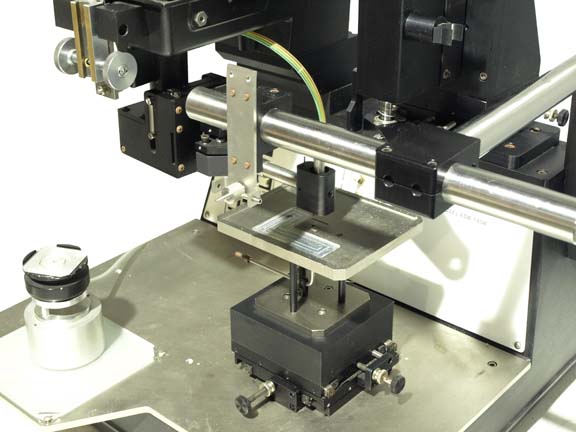

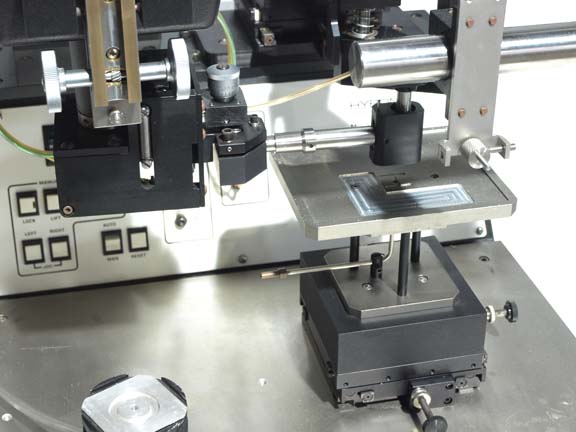

  • Pitch & Roll adjustments for bond head
  • Manual & Semiautomatic operation modes
Other Information Dispense Materials: Epoxy. Bonder is capable of doing conductive silver glass; option not included available from Hybond
Bond Time Range: 7 to 15 seconds
Bond Force Range: 15 to 50 grams
Bondable Die Size Range: 6 x 6 mils (152 x 152 5m) to 750 x 750 mils (1,9 x 1,9 5m)
Placement Accuracy: 1 1 mil (25,4 5m) standard
Bond Line Accuracy: 1.0.5 mil (1m12,7 l5m)
Bond Head Movement: Motorized, rotational, w/ fixed pick-up and placement points
Bond Actuation: By opto-switch at fixed height. Cycle initiated by footswitch
Z Axis Travel / Vertical Bonding Window: 0.5 in (1.20 cm) / 0.125 to 0.500 in. (0,31 to 1,20 cm)
Table Motion: manual, with thumbscrew adjustments (standard)
Condition Excellent
Power Requirements 115 V     5.0 A     60 Hz     1 Phase
Exterior Dimensions
  Width 22.000  in  (55.9 cm)
  Depth 24.000  in  (61.0 cm)
  Height 24.000  in  (61.0 cm)
