Item ID: 3253

Offered 1 Offered at $ 12,500.00

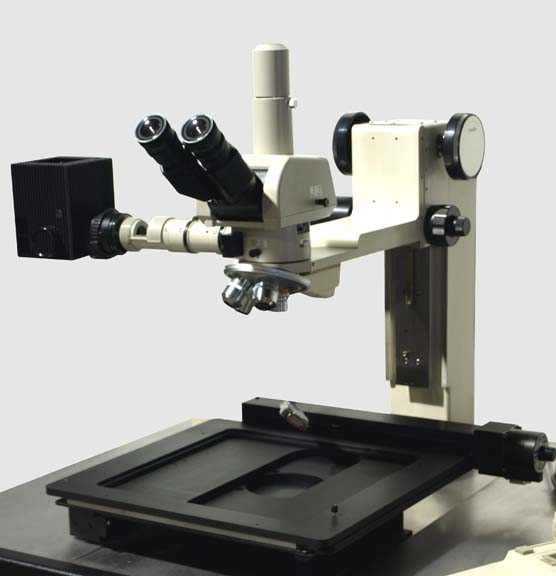

Large Substrate Inspection Microscope
With Brightfield and Darkfield Illumination
12" x 8" XY Stage
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price $ 12,500.00
Number of Units 1
Manufacturer Nikon
Model None
Description Disk Inspection Microscope
Microscope Type Upright
Microscope Configuration Brightfield & Darkfield
Illumination Type Reflected Light
Binocular Angle Variable
  Model CFUWN
  Magnification 10 X
  Field Number 26 mm
  Focusing YES
Trinocular/Phototube Provided YES
Multiple Objectives Models M Plan 5X/0.1
BD Plan 10X/0.25
BD Plan 20X/0.40
BD Plan 40X/0.50 XLWD
Illumination Power Volts: 12     Watts: 100
Power Supply Included YES
Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 305  mm  (12.008 in)     Y : 216  mm  (8.504 in)     Z : 178  mm  (7.008 in)
  Type None
Other Information
  • Microscope mounted on large TMC table with stainless
     steel top and passive-isolation vibration control
  • Stage dimensions: 17 x 16"
  • Ludl Electronic Products motorized XY stage with controller and joystick
Condition Excellent
Exterior Dimensions
  Width 64.000  in  (162.6 cm)
  Depth 34.000  in  (86.4 cm)
  Height 54.000  in  (137.2 cm)
