Item ID: 249550

**1 Offered at Best Price**

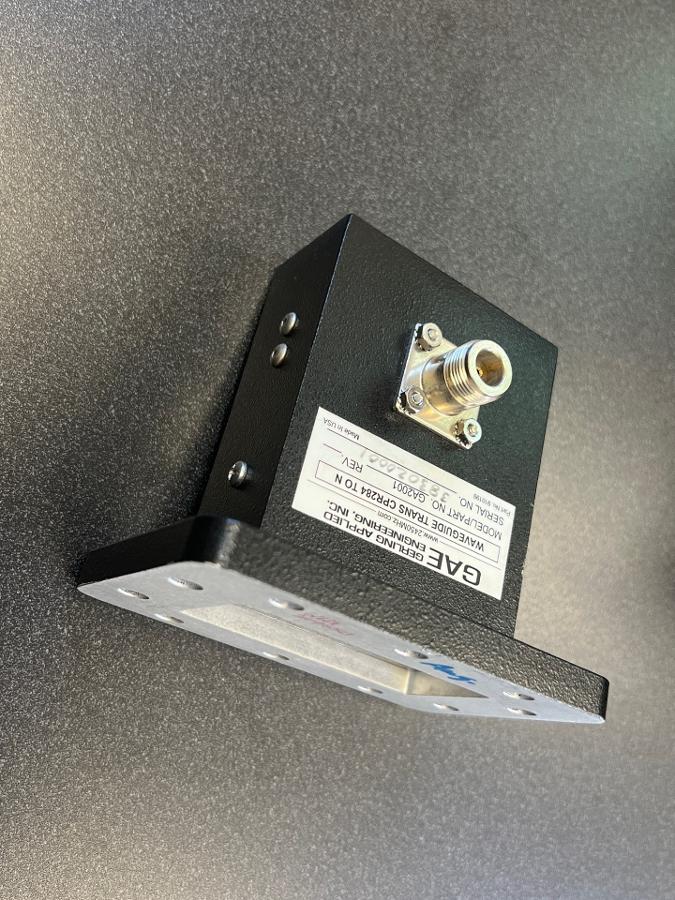

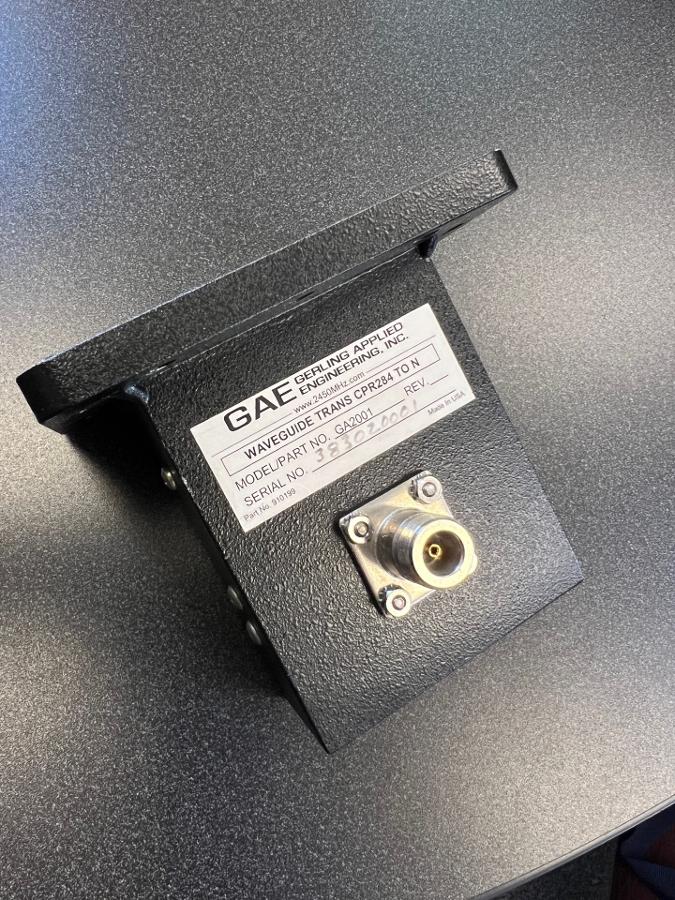

GAE GA2001 WR284 Waveguide to N Coax Transition

WR284 rectangular waveguide microwave power transition to N-type coax with nominally 1000W power handling capacity.

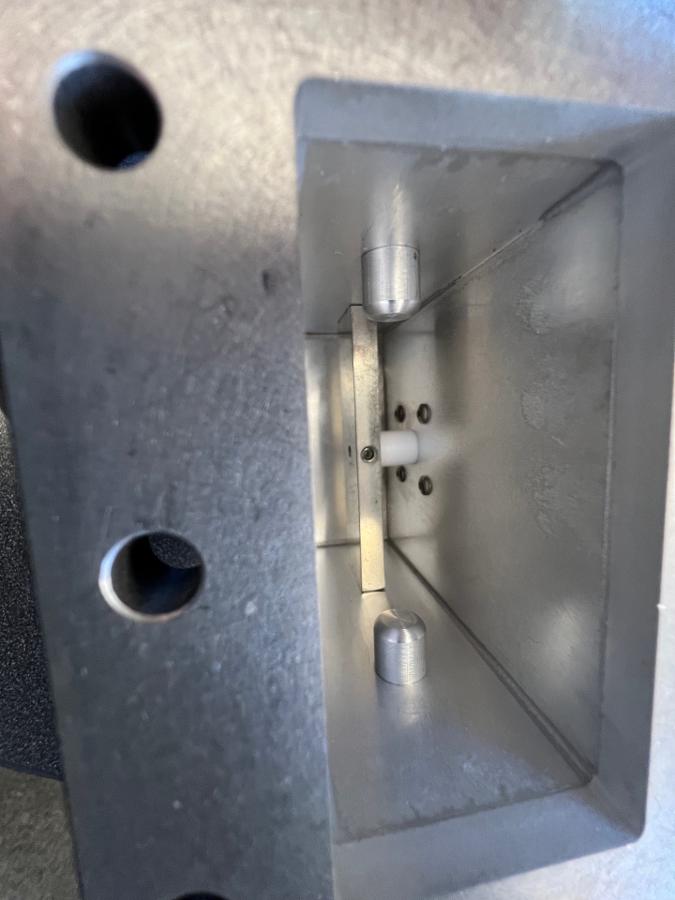

Per the attached PDF, GAE offers a series of high power waveguide to coax transitions that deliver high performance at relatively high microwave power levels. Each model in the series utilizes the classical cross-bar method of terminating the coaxial center conductor, thus minimizing or eliminating the voltage breakdown common with non-terminated designs. The power rating is limited only by the rating of the coaxial cable (provided by the customer) attached to the Type N connector, which in most cases does not exceed 1 kW.

Location: Leominster, Massachusetts

Unit Price	Unstated
Number of Units	1
Manufacturer	Gerling
Model	GA2001
Description	"Waveguide Trans CPR284 to N"
Accessories	Cline Innovations has other WR284 components if you need items like circulator, dummy load, etc.
Other Information	This item is offered for sales in the USA only.
Condition	Excellent

RELATED DOCUMENTS: click links to view
Muegge-Gerling GA2001 datasheet
