Item ID: 177136

**1 Offered at Best Price**

MARCH NORDSON BOX PLASMA ETCHER 1000 WATT 13.56 MHz

Box Plasma Etcher

Applications
"Gas plasma treatment provides a fast, efficient method for
surface treatment and cleaning prior to wire bonding, die
attach, encapsulation, conformal coating and other processes.
Plasma processing enhances lamination bondstrength, improves
wire bond strength and uniformity,promotes underfill adhesion and enhances die attach." Source -- March Nordson.

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	March Instruments
Model	PX-2400
Etcher Type	Box
Rated Power Output	1000 Watts
Reactor Center	Rectangular
Reactor Center Size
Width	26.38 in (67.01 cm)
Depth	25.38 in (64.47 cm)
Height	14.00 in (35.56 cm)
Reactor Center Material	Other
Number of Gas Inputs	Two Gas
Automatching Network Included	Yes
Vacuum Pump Included	No
Interface	RS 232

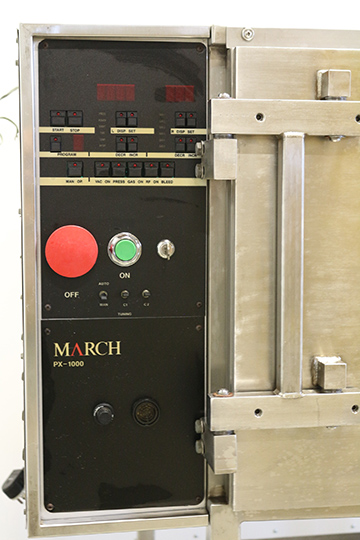

Panel Meters	Digital
External Cooling	Forced Air Cooled
Accessories	Door with viewing window

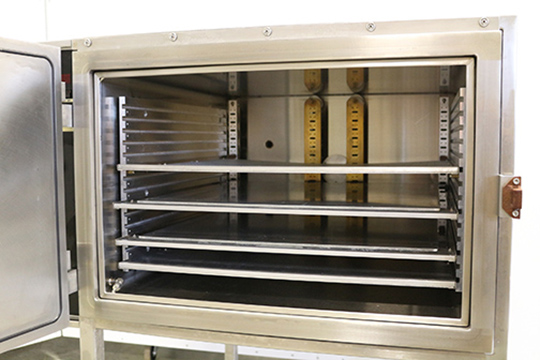

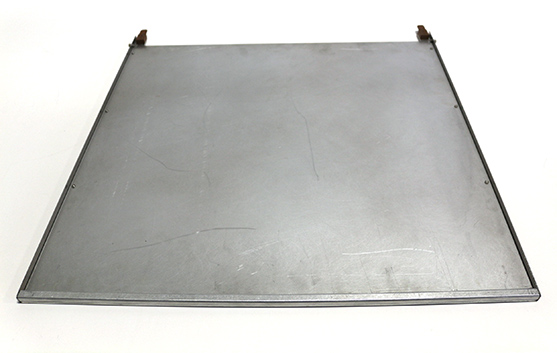

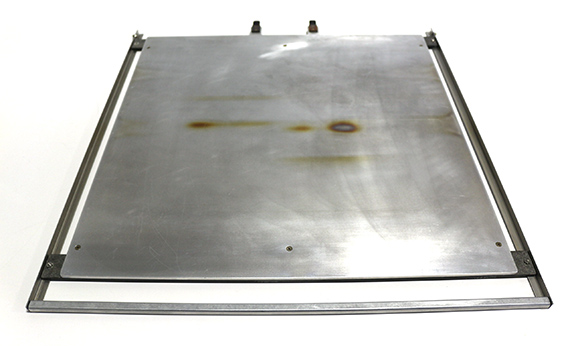

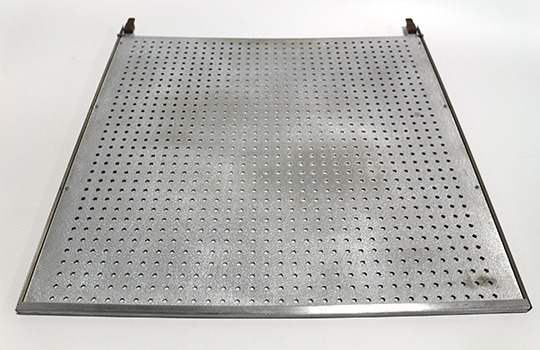

Other Information	Stainless Steel chamber Electrodes -- 14 Adjustable postions (2) Powered, Work area 24" x 24" (1) Grounded, Perforated, Work area 24" x 24" (1) Grounded, Solid, Work area 24" x 24" Gas inputs via mass flow controllers
Extended Description	Details at March PX--2400.pdf
Exterior Dimensions
Width	42.000 in (106.7 cm)
Depth	36.000 in (91.4 cm)
Height	48.000 in (121.9 cm)
