Unit Price |
Unstated |
Number of Units |
1 |
Manufacturer | CAE NEY |
Model | BCS-6-US |
Bath/Tank Dimensions |  |
Length | 15.5000 in (39.37 cm, 393.7 mm) |
Width | 8.0000 in (20.32 cm, 203.2 mm) |
Depth | 10.0000 in (25.40 cm, 254.0 mm) |
Capacity/Liquid | 22.71 L (6.00 gal) |
Bath Material | 316 Polished stainless steel |
Generator Included | YES |
Heated Bath | YES |
Maximum Temperature | 60 ºC (140 ºF, 333 ºK) |
Other Information | System Configuration:

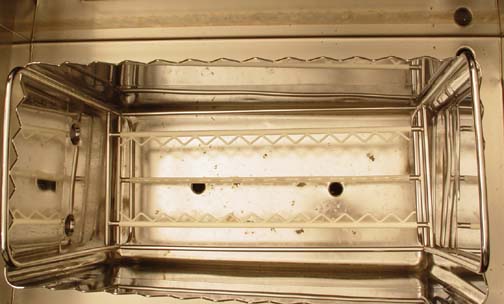

Process Tank:
6 gallon capacity
(4) Sided overflow weir
Electropolished
Coved corners
1000 watt heater w/PID controller
Low liquid sensor
10" polypropylene filter w/pressure gauge
March seal-less magnetic drive pump

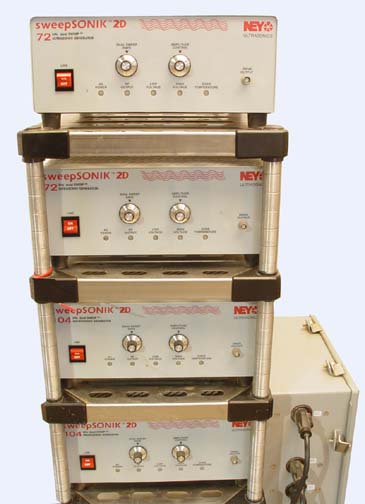

Dual frequency choice 72 or 104 KHz ultrasonic generators

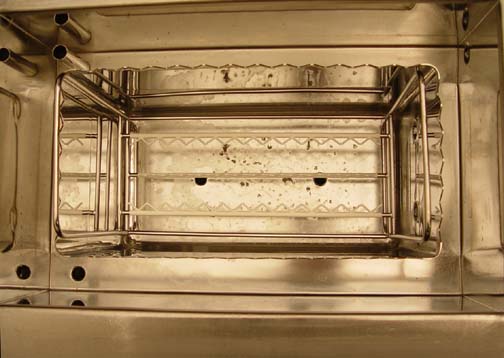

Rinse Tank:
6 gallon capacity
(4) sided overflow weir
Electropolished
Coved corners
2000 Watt heater w/PID controller
Low liquid sensor
Dual frequency choice 72 or 104 KHz ultrasonic generators
Inline Water Heater:
7,500 watts
Wetted parts are Kynar and NORYL
Thermostat control
Max temperature: 140°F

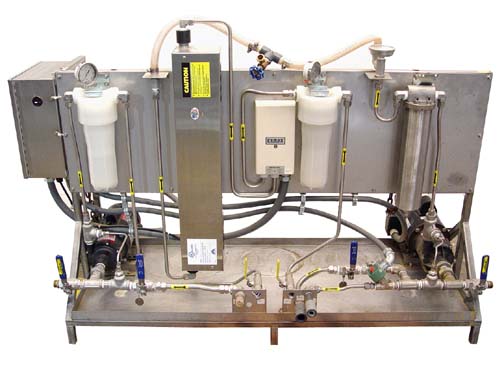

DI Water Recycle Loop
High pressure pump
Inline UV light for bacteria inhibition
(1) micron filter after UV for pyrogen removal
Resistivity meter

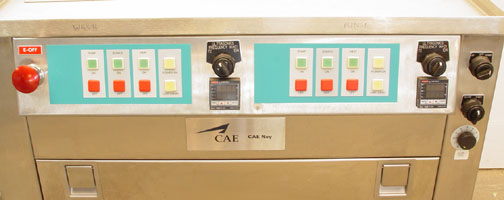

Controls:
Frequency controls (Tank #1, #2)
Ultrasonic On/Off (Tank #1, #2)
Tank fluid temperarture (tank #1, #2)
Pump: On/Off (tank #1)
Emergency Off
|
Power Requirements | 208 V
60.0 A
50/60 Hz
3 Phase
|
Year of Manufacture | 1998 |
Condition | Very Good |
Exterior Dimensions |  |
Width | 34.250 in (87.0 cm) |
Depth | 34.250 in (87.0 cm) |
Height | 43.000 in (109.2 cm) |
