FULL DESCRIPTION of Item 114961

in Barrel/Box Plasma Etchers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 114961

Offered 1 Offered at Best Price

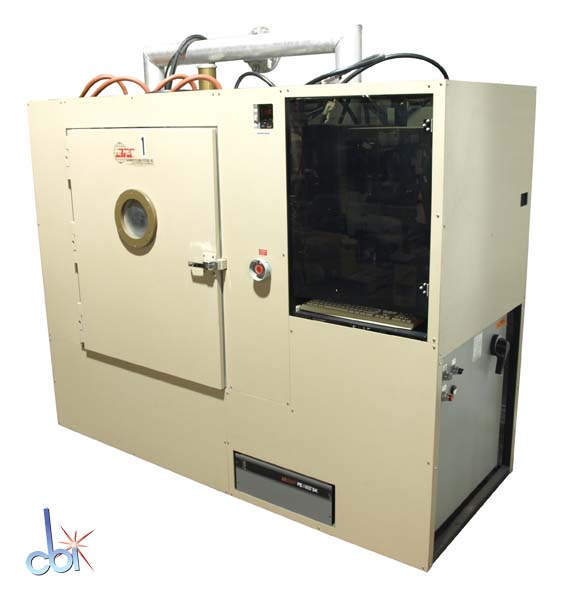

APS MARCH B SERIES-4 PLASMA TREATMENT SYSTEM.

Plasma Treatment System
Desmear/Etchback


Advanced Plasma Systems and March Instruments, manufacturer of plasma systems, were aquired by Nordson.
Both companies merged and are an entity of Nordson - now called Nordson MARCH.
APS MARCH B SERIES-4 PLASMA TREATMENT SYSTEM.
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Advanced Plasma Syst
Model B Series-4
Etcher Type Box
Rated Power Output 5000 Watts
Reactor Center Rectangular
Reactor Center Size
  Width 30.00  in  (76.20 cm)
  Depth 30.00  in  (76.20 cm)
  Height 36.00  in  (91.44 cm)
Reactor Center Material Aluminum
Number of Gas Inputs Three Gas
Vacuum Pump Included Yes

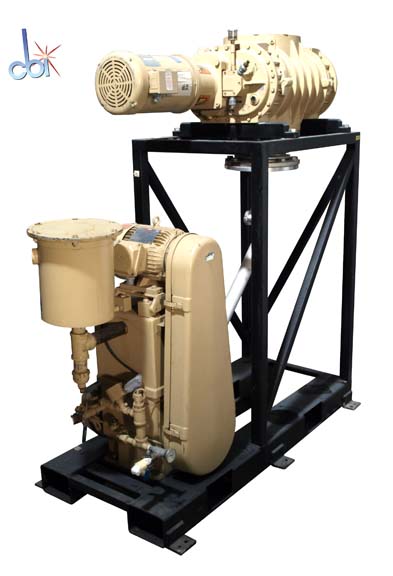

Vacuum Pump Model Stokes Blower 615-2 with Stokes 149-11 pump

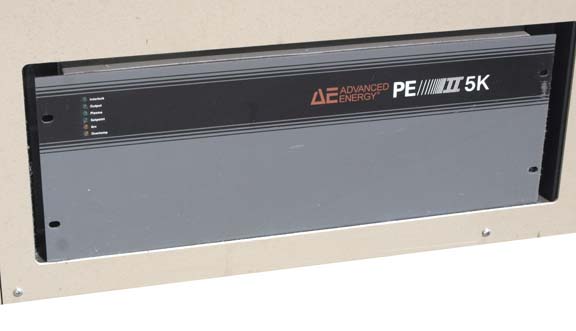

RF Generator Model Advanced Energy PEII 5K
Panel Meters Digital
External Cooling Water Cooled
Accessories Gas Delivery: (3) MKS MFCs, 2000 SCCM each

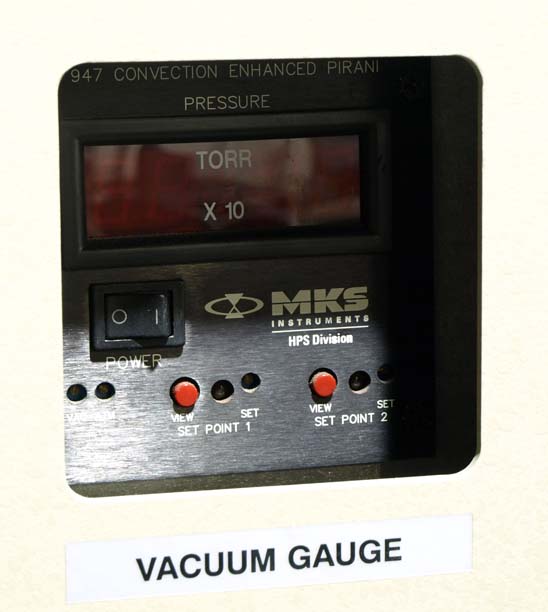

MKS 947 vacuum gauge
Stokes oil fiter: Model LFI1K3HPXG874

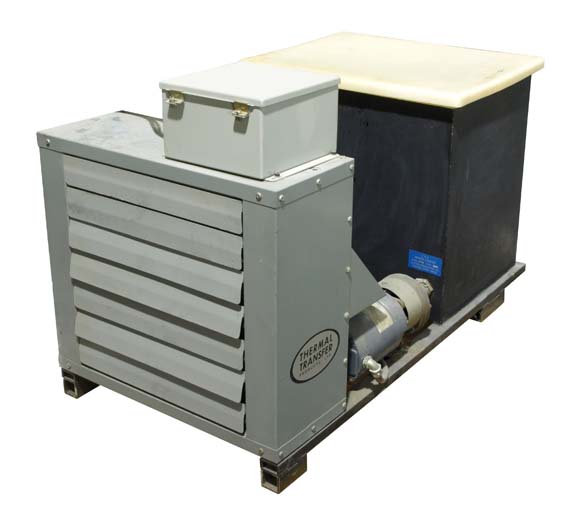

Thermal Transfer Products heat exchanger: Model AW-25-80759
Viewing window

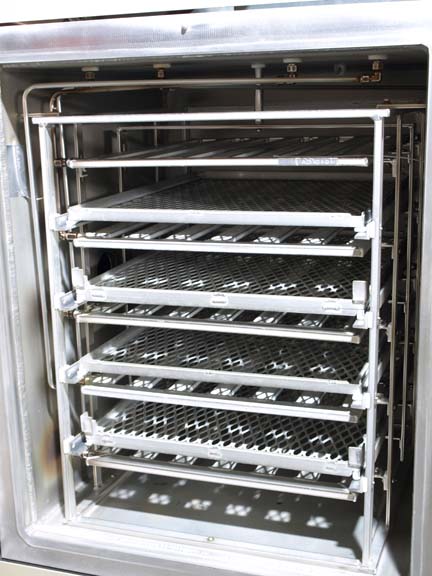

Other Information Four shelves: Shelf size 21.375 x 27.25"

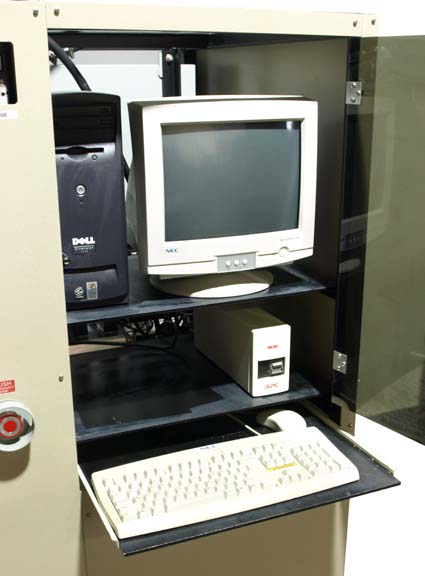

P2CIM 2000 Win NT Software version 4.09a
Power Requirements 208 V     100.0 A     60 Hz     3 Phase
Year of Manufacture 2000
Exterior Dimensions
  Width 86.000  in  (218.4 cm)
  Depth 38.000  in  (96.5 cm)
  Height 83.000  in  (210.8 cm)
Weight 2,146  lb  (973 kg)
