FULL DESCRIPTION of Item 112607

in Contact/Proximity Mask Aligners
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 112607

Offered 1 Offered at Best Price

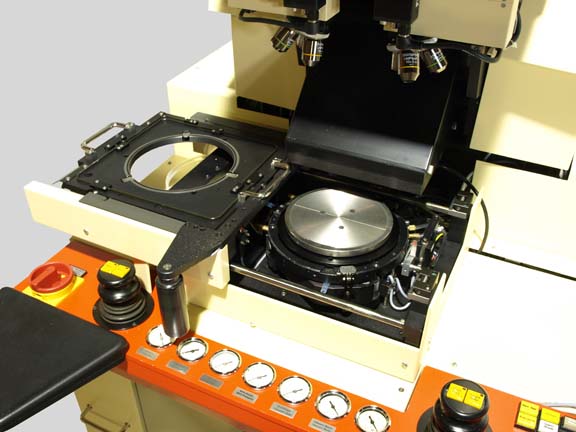

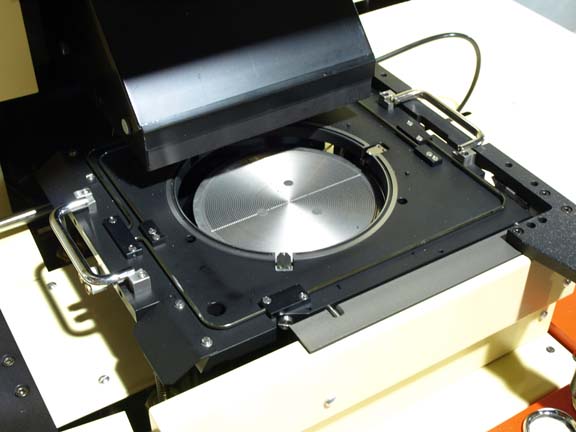

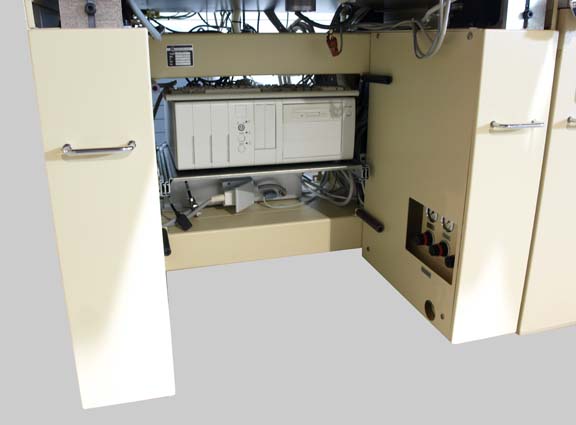

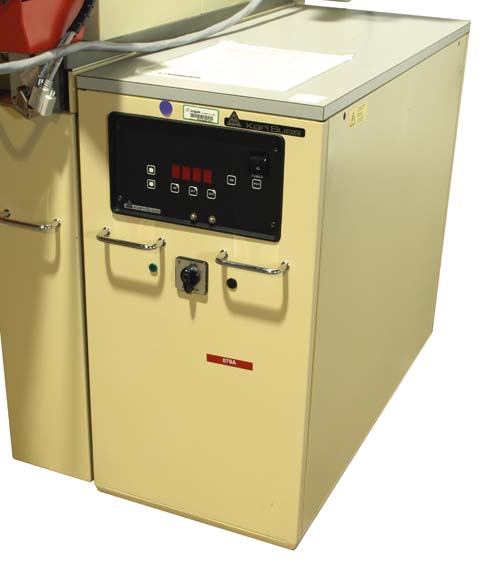

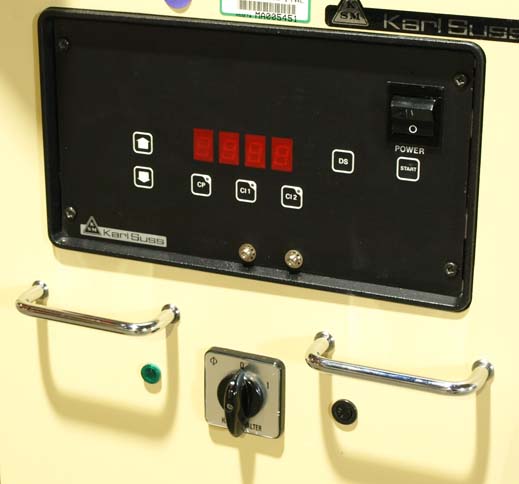

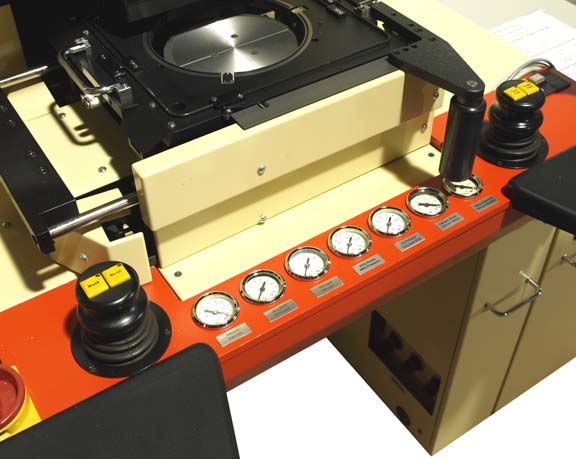

KARL SUSS MANUAL MASK ALIGNER 150 MM

Manual Mask Aligner

The Karl Suss MA 150M Manual Mask Aligner is a mask alignment and exposure system which offers
unsurpassed precision and versatility when handling wafers up to 150 mm in diameter.

KARL SUSS MANUAL MASK ALIGNER 150 MM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Karl Suss
Model MA 150M
Wafer Size Range
  Minimum 50 mm
  Maximum 150 mm
  Set Size 150 mm

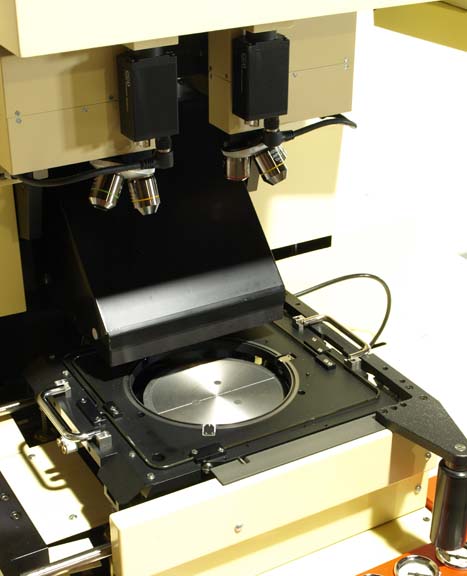

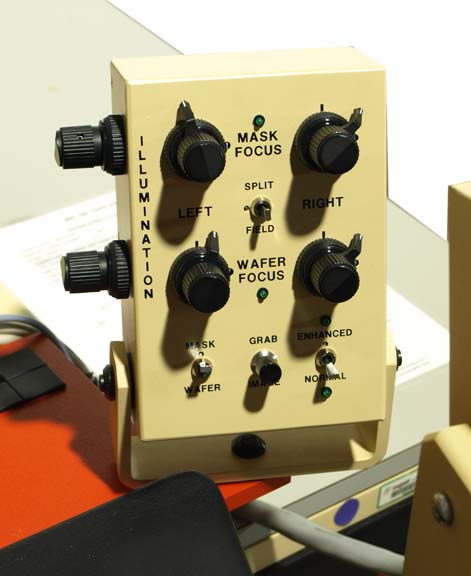

Alignment Optics Splitfield Video
Software Revision Level 6.0
Air Consumption 0.88  CFM  (0.02 cu m/min)
Accessories

Dual Video Microscope: Model DVM6
Objectives:
Olympus UMPlanFI 5x/0.15
Olympus UMPlanFI 10x/0.03
Olympus LMPlanFI 20x/0.40

Other Information

Alignment/Exposure Modes: Hard, Soft, Vacuum and Proximity

Power Requirements 220 V     10.0 A     60 Hz     1 Phase
Exterior Dimensions
  Width 48.000  in  (121.9 cm)
  Depth 56.000  in  (142.2 cm)
  Height 63.000  in  (160.0 cm)
Weight 1,194  lb  (542 kg)
