Item ID: 108528

**1 Offered at Best Price**

MARCH INSTRUMENTS BARREL PLASMA ETCHER 300 WATT

Barrel Plasma Etcher with Vacuum Pump
March Instruments, manufacturer of plasma systems, was acquired by Nordson - called Nordson MARCH.

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	March Instruments
Model	PM-600
Etcher Type	Barrel
Rated Power Output	300 Watts

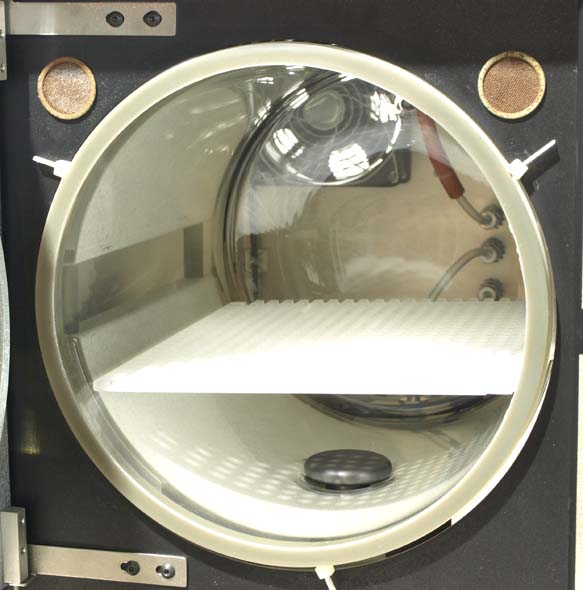

Reactor Center	Cylindrical
Reactor Center Size
Depth	12.00 in (30.48 cm)
Diameter	10.00 in (25.40 cm)
Reactor Center Material	Quartz
Number of Gas Inputs	Two Gas
Automatching Network Included	Yes
Vacuum Pump Included	Yes

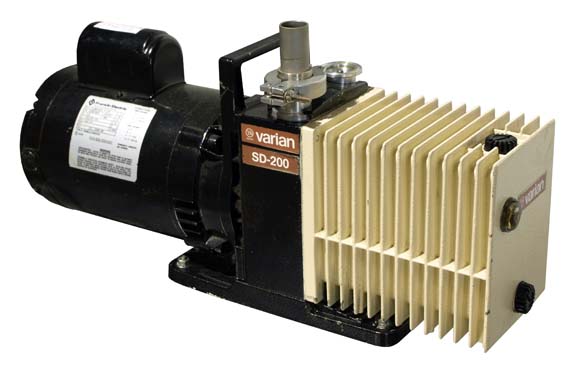

Vacuum Pump Model	Varian SD-200

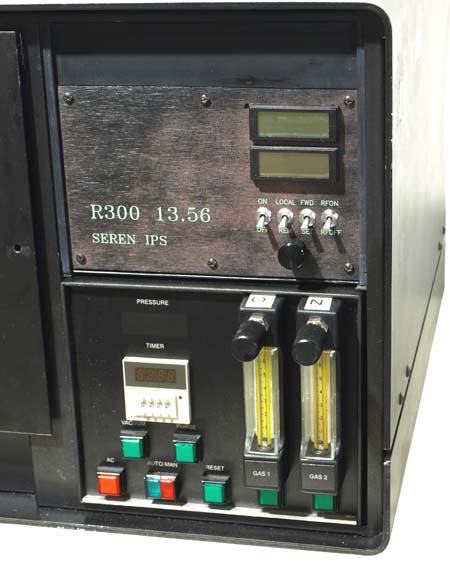

RF Generator Model	Seren IPS R300

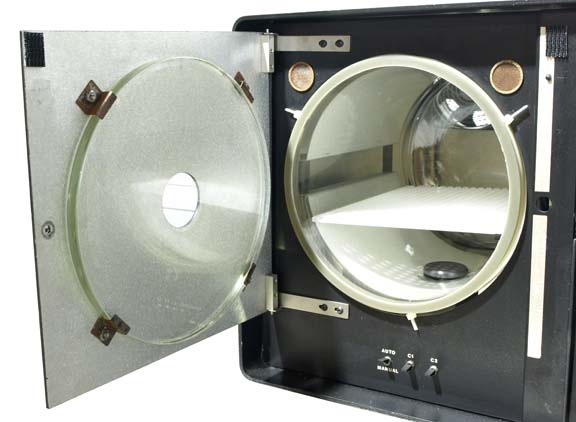

Accessories	(1) Quartz Lattice Tray Door with viewing window
Other Information	Automatic and Manual Modes Operating Frequency: 13.56 MHz
Power Requirements	115 V 60 Hz 1 Phase
Exterior Dimensions
Width	23.000 in (58.4 cm)
Depth	22.000 in (55.9 cm)
Height	17.000 in (43.2 cm)
