Other Information | Ultrasonic system: PLL self-tuning, 62.5 KHz (±2.5KHz) nominal
Ultrasonic power range: 0-2 watt on Low setting (default), 0-4 watts on High setting
Bond time range: Low: 10 - 400 mSec High: 200 - 600 mSec
Bond force range: 25 - 200 grams
Bondable wire diameters: 0.5 to 2.0 mils (12,5 to 50 µm) insulated ; 0.5 to 2.0 mils (12,5 to 50 µm) bare
Bondable ribbon dimensions: Up to 2 x 20 mils (50 x 500 µm)
Bondable wire/ribbon materials: Gold, gold plated copper, and aluminum
Bond head movement: Semi-automatic / automatic
Bond actuation: Sensor at variable height, actuated by pushbutton or footswitch
Z axis travel: 1.5 in (3,81 cm)
Vertical bonding window: 1.4 in (3,55 cm)
Leica GZ 6 Stereozoom microscope:
10X/22 Eyepeices
Ring light
X-Y Motorized stage

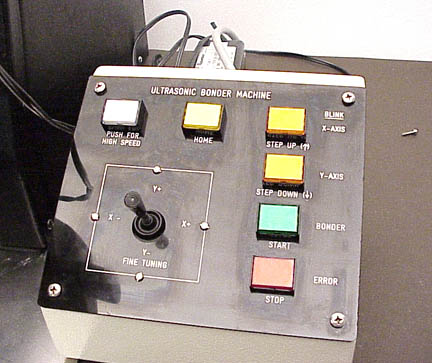

Controller w/joy stick
|
