FULL DESCRIPTION of Item 77000

in Robotic PR Coater Tracks
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 77000

Offered 2 Offered at Best Price

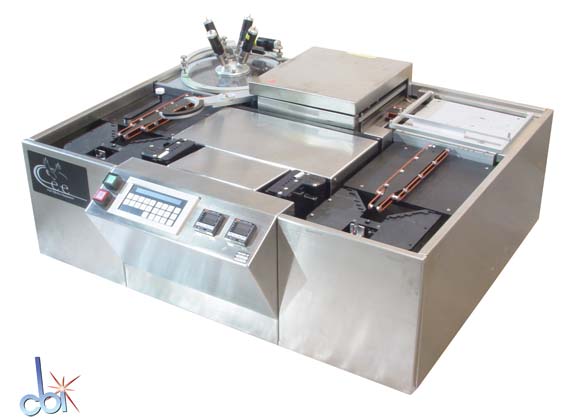

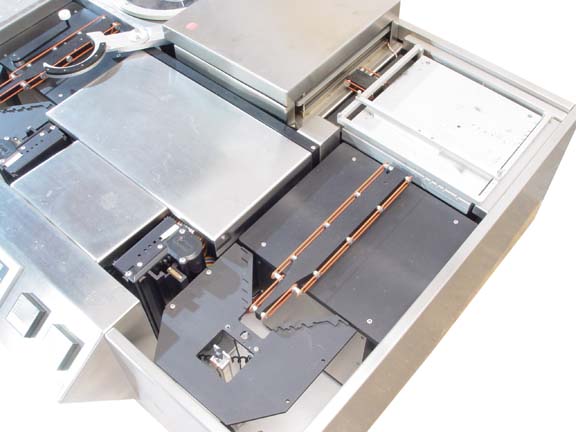

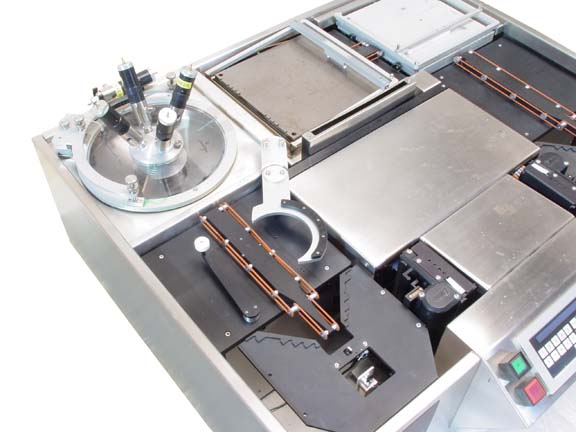

BREWER SCIENCE INC. PROGRAMMABLE AUTOMATED COAT/BAKE TRACK SYSTEM

Programmable Automated Coat/Bake Track System
BREWER SCIENCE INC. PROGRAMMABLE AUTOMATED COAT/BAKE TRACK SYSTEM
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 2
Manufacturer Brewer Science
Model CEE 4000
Wafer Size Range
  Minimum 100 mm
  Maximum 200 mm
Number of Cassette Elevators 2

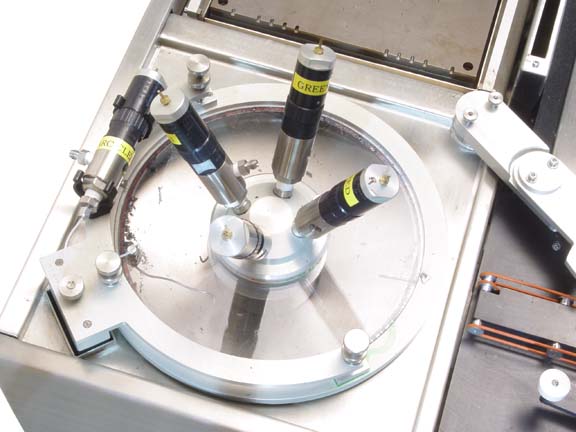

Number of Photoresist Coat Stations 1
Number of Photoresist Dispenses 5
Number of Hot Plates 1
Other Information Up to 200 mm round or 6" square substrates
0-6000 rpm spin range
1-30,000 rpm/sec acceleration - unloaded
Hot chuck size: 10" x 10"
Temperature range: 50-300°C

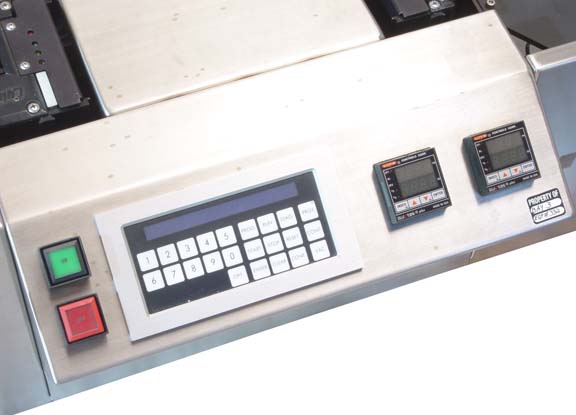

Temperature control: programmable digital PID
Power Requirements 120/220 V     50/60 Hz     1 Phase
Operating Air Pressure 70.00  PSI  (482,671.00 N/sq m)
Vacuum Required 25.00  in Hg  (634.99 mm Hg)
Exterior Dimensions
  Width 36.000  in  (91.4 cm)
  Depth 41.000  in  (104.1 cm)
  Height 18.000  in  (45.7 cm)
Weight 380  lb  (172 kg)
