FULL DESCRIPTION of Item 63999

in Rotary Vane Pumps
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 63999

Offered 1 Offered at Best Price

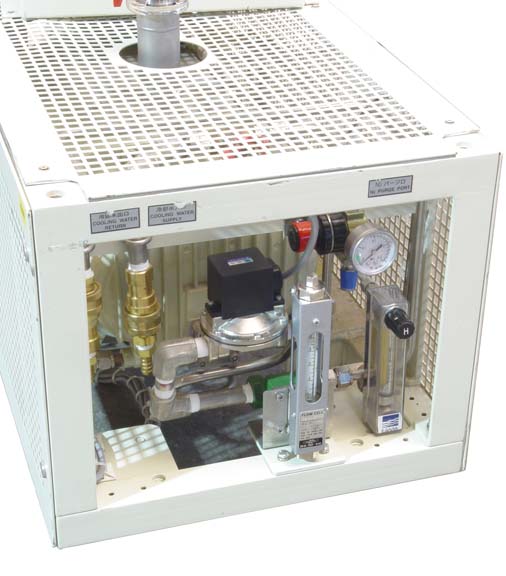

EBARA DRY VACUUM PUMP 42.0 CFM

Dry Vacuum Pump


Pumping speed and ultimate pressure are based on 60 Hz operation.





EBARA DRY VACUUM PUMP 42.0 CFM
  Click to see additional image(s)... other image

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Ebara
Model 40X20
Dry Pump YES
Pumping Speed 42.0  CFM  (1,186.8 l/m)
Ultimate Pressure  3.00E-2(En)  torr  (4.00E-2 mbar)
Inlet Flange KF     40.0  mm  (1.575 in)
Exhaust Flange KF     40.0  mm  (1.575 in)
Duty--Service Corrosive
Rotational Speed 2,800 RPM
Oil Type Fomblin TM
Accessories

Motor starters included

Other Information

Water cooled
Designed for operation in harsh applications such as:
LPCVD, PECVD, CVD and metal etch.
Water cooling manifold w/3/8" NPT connections
N2 purge system w/pressure regulator and flow meter
Pump is not rebuilt

Power Requirements 208 V     20.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 16.000  in  (40.6 cm)
  Depth 32.000  in  (81.3 cm)
  Height 22.000  in  (55.9 cm)
Weight 420  lb  (191 kg)
click to view document at right in new windowEbara 40x20
