in Sealing/Welding Systems
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
Item ID: 586

Offered 1 Offered at Best Price

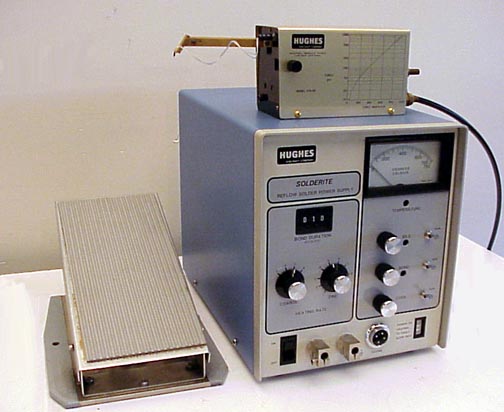

Parallel Gap Opposed Weld Head with Power Supply

  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Hughes
Model VTA90
Description VTA 90 w/HTT 600 Power Supply
Maximum Rating .17  KVA
Maximum Rating  20  watt-sec
Weld Force Minimum 0.22  lb  (0.10 kg)
Weld Force Maximum 2.01  lb  (0.91 kg)

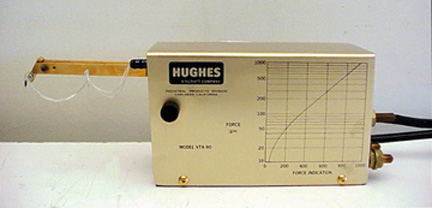

Weld Head Type Opposed
Electrode Holder Type Parallel Gap
Power Leads Opposed
Power Supply Included YES

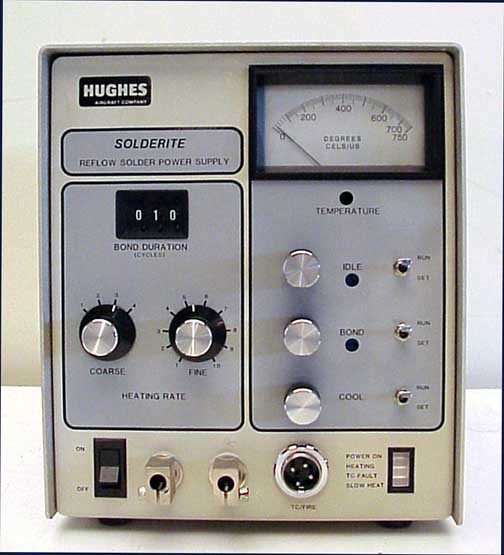

Power Supply Model HTT-600
Foot Pedal Included YES
Other Information Flexline foot pedal
Electrode stroke: 0.25"
Electrode holder: 0.125 x 0.078"
Digital thumbwheel duration timer
Coarse and fine temperature heat rate adjustment
0 to 750°C analog temperature meter
Does not come with base plate.
Soldering tip is NOT included
Power Requirements 115 V     8.0 A     50/60 Hz     1 Phase
Condition Excellent
Exterior Dimensions
  Width 2.500  in  (6.3 cm)
  Depth 7.500  in  (19.1 cm)
  Height 4.000  in  (10.2 cm)
Weight 12  lb  (5 kg)
