FULL DESCRIPTION of Item 39884

in High Voltage Power Supplies 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 39884

Offered 5 Offered at Best Price

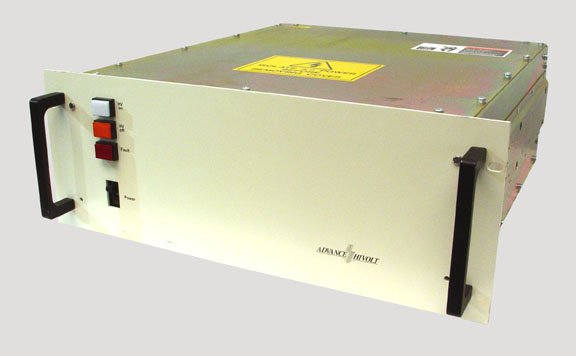

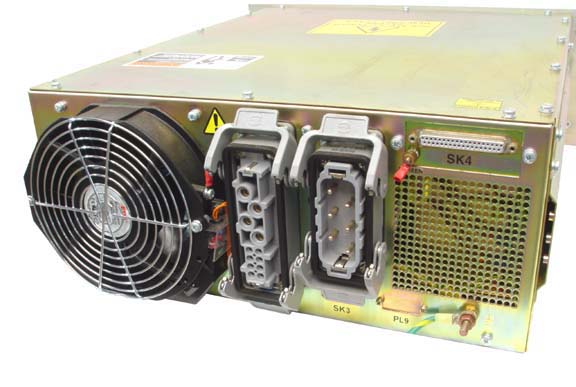

HITEK POWER SYSTEMS HIGH VOLTAGE POWER SUPPLY 80 kV 100 mA

High Voltage Power Supply

Formerly Advance Hivolt 		HITEK POWER SYSTEMS HIGH VOLTAGE POWER SUPPLY 80 kV 100 mA
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 5
Manufacturer Hitek Power Sys (as )
Model OL8000/803/10
Maximum Output Voltage 80.0 kV
Maximum Output Current 100.0 mA
Panel Meters None
Regulation 0.2% Peak to peak
External Cooling Forced Air Cooled
Accessories Applications
  • Ion implantation
  • Ion vapor deposition
  • Chemical vapor deposition
  • Electron beam welding
  • Electron guns
  • High voltage testing
  • Particle accelerators
  • CE Label

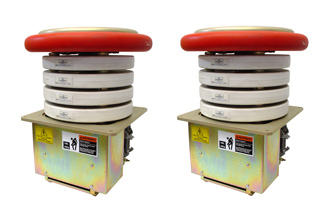

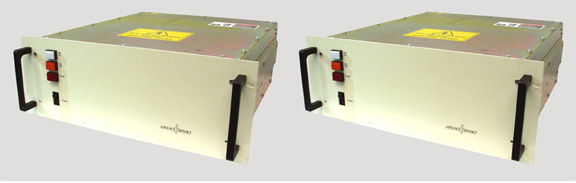

Other Information System configuration
  • Two stacks
  • One master controller
  • One slave controller
  • One interface module Output: 80 Kw
    Output current: 100 Ma
    Positive polarity
Power Requirements 200-240 V     34.0 A     47-63 Hz     3 Phase
CE Marked YES
Condition Very Good
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 22.000  in  (55.9 cm)
  Height 7.000  in  (17.8 cm)
Weight 165  lb  (75 kg)
