FULL DESCRIPTION of Item 36660

in Electron Beam Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 36660

Offered 1 Offered at Best Price


LEYBOLD E-BEAM EVAPORATOR, 4 POCKET

E-Beam Evaporator with Ion Source

LEYBOLD E-BEAM EVAPORATOR, 4 POCKET
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Leybold
Model LAB 600 EB
Description E Beam Evaporator--Ion Assist
Vacuum System Turbo Pumped
Load Lock Included No
E Beam Power Supply
  High Voltage Minimum 14 kV
  Number of Guns Controlled 1
  Electron Source Type Four Pocket
Vacuum System

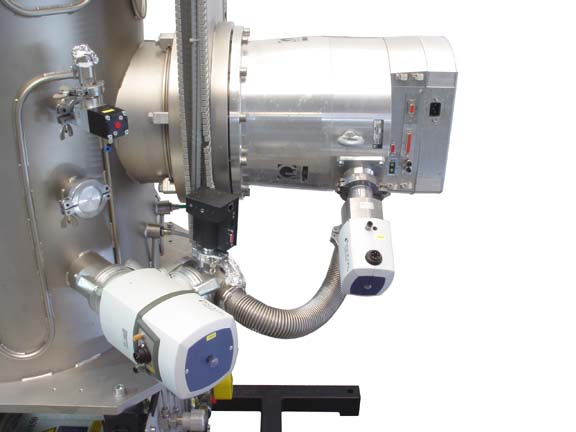

  • Leybold Turbovac T1600 pump/controller
  • Edwards QDP40 dry pump
  • Leybold Ruvac WSU251
Gas Inputs Two
Gas Input Control Mass Flow Controllers
Film Thickness Monitor Yes
Other Information

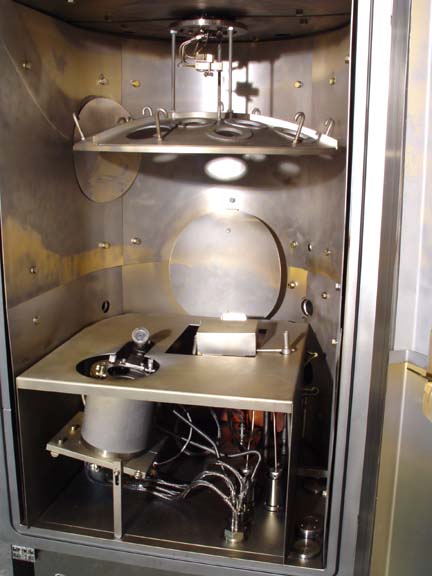

  • Chamber: 23"W x 23"D x 29"H

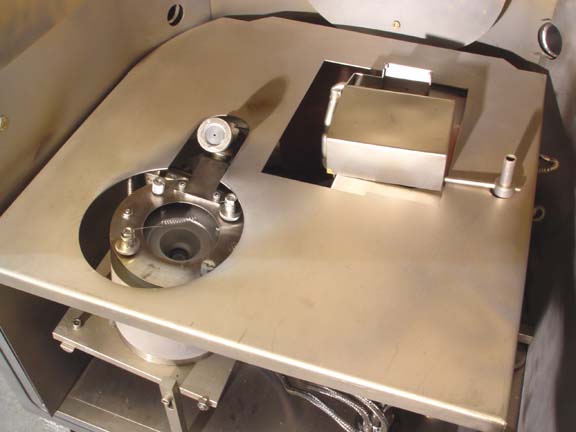

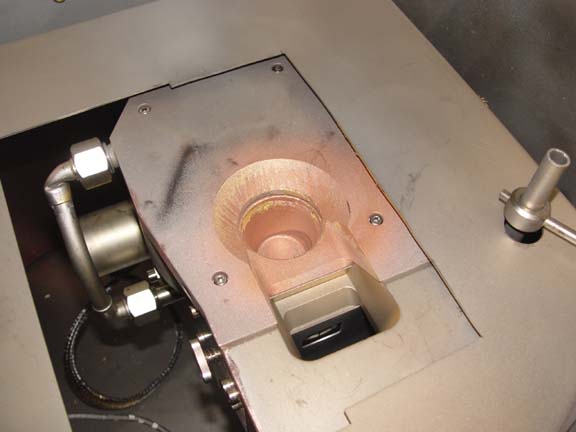

  • E-gun: ESV14 with 4 pocket crucible

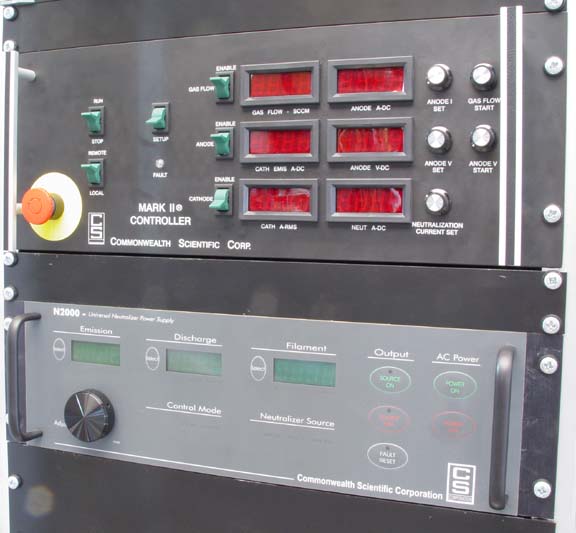

  • Ion source: Commonwealth Mark II
  • Commonwealth N2000 Neutralizer power supply
  • Model 5000 hollow cathode electron source

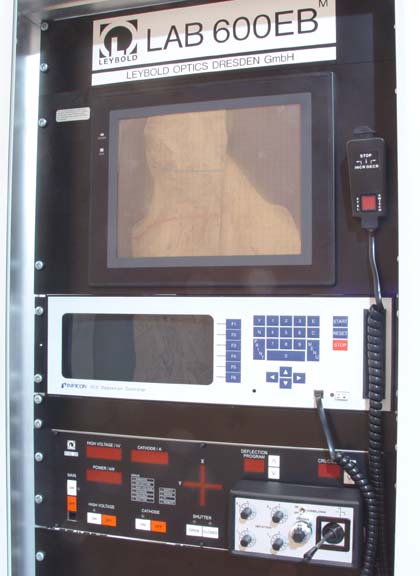

  • Leybold IC5 deposition controller
  • Lebyold EGC28 electron beam evaporator controller
  • Dual crystal sensor
  • PLC+PC visualization

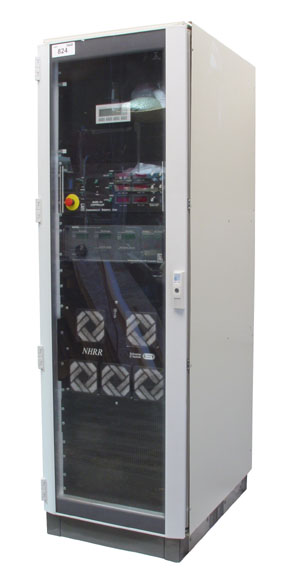

  • Schnider E-Technik Hi voltage power supply

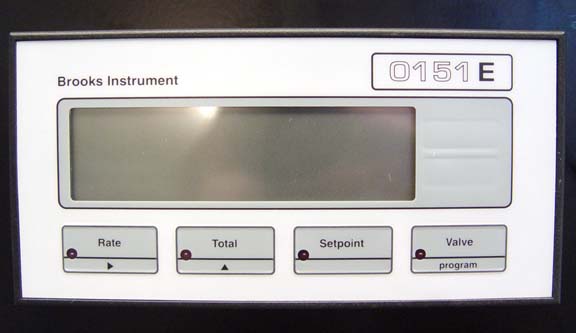

  • Brooks Instrument 0151E Flow controller
  • GWK recirculating chiller

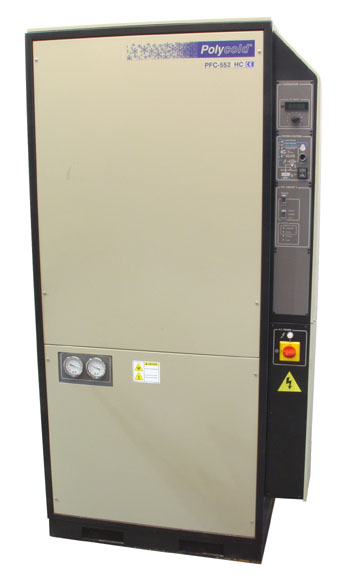

  • Polycold chiller m/n 552

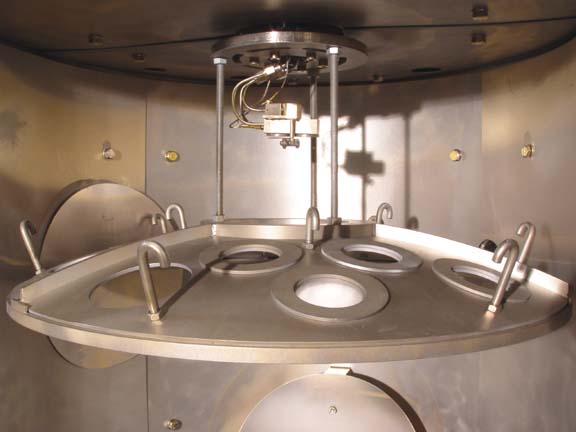

  • Planetary for (15)-2" wafers

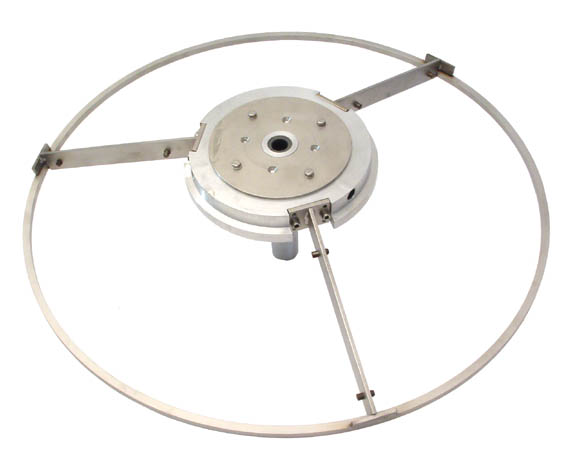

  • Extra planetary see photo
CE Marked YES
Year of Manufacture 2001
Condition Excellent
Exterior Dimensions
  Width 37.000  in  (94.0 cm)
  Depth 57.000  in  (144.8 cm)
  Height 83.000  in  (210.8 cm)
Weight 1,480  lb  (671 kg)
