Item ID: 160653 1 Offered at Best Price SPELLMAN HIGH VOLTAGE POWER SUPPLY, 10 kV Shipborne Power Feed Equipment (P.F.E.)Used on cable laying ships for submarine fiber optic telecomunication cable installations. ... other images Location: Scotia, New York Unit Price Unstated Number of Units 1 Manufacturer Spellman (as ) Model SR10PN16/X2833 Maximum Output Voltage 10.0 kV Maximum Output Current 1,600.0 mA Bipolar Yes Panel Meters Digital Accessories Control Inter Connect CablesHigh Voltage Inter Connect CablesOutput High Voltage Cable is not included, 3M (10') HV cable add $200 with the purchase of the power supply, inquire about longer cables. To purchase HV cable alone the price will be $320 for a 3M (10'), inquire on longer cables. Other Information System Consist of The Following :M/N SR10PN16/X2833 (Master)P/N X2833 Rev 1M/N SR10PN16/X2833 (Slave)P/N X2833 Rev 1M/N SR10PN16/X2833(2nd Slave)P/N X2833 Rev 1M/N SR10PN/X2833 (Clamp Chassis)P/N X2833 Rev 1Solid State Dummy LoadMaximum output current of 1.6A is for the master and two slaves combined We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications Power Requirements 220 V 50/60 Hz 3 Phase Exterior Dimensions Width 19.000 in (48.3 cm) Depth 19.000 in (48.3 cm) Height 10.500 in (26.7 cm) OFFERED BY: (click name below to visit its website directly)Capovani Brothers Inc. Scotia , New York 1.518.346.8347 Shipping & Handling:Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions. Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578). Payment:Minimum order of $50 required. We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms. All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms. All other sales, including foreign sales, are prepayment only. MasterCard, VISA, Discover and AMEX are accepted at sellers discretion. Domestic Terms and Conditions International Terms and Conditions Deal directly with Owner: Capovani Brothers Inc. of Scotia, New York Make OFFERSend an INQUIRY
Shipborne Power Feed Equipment (P.F.E.)Used on cable laying ships for submarine fiber optic telecomunication cable installations.
Control Inter Connect CablesHigh Voltage Inter Connect CablesOutput High Voltage Cable is not included,
3M (10') HV cable add $200 with the purchase of the power supply, inquire about longer cables.
To purchase HV cable alone the price will be $320 for a 3M (10'), inquire on longer cables.

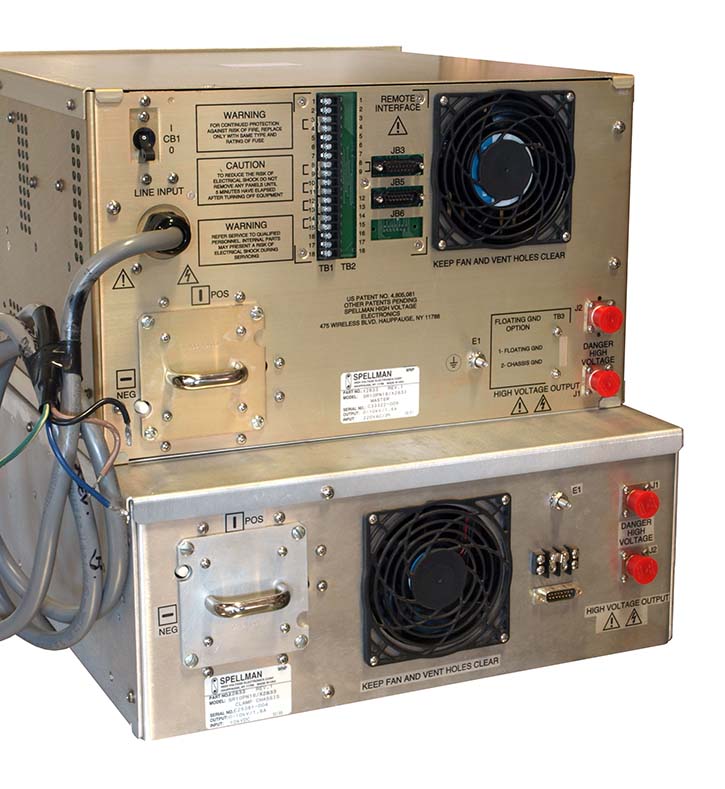

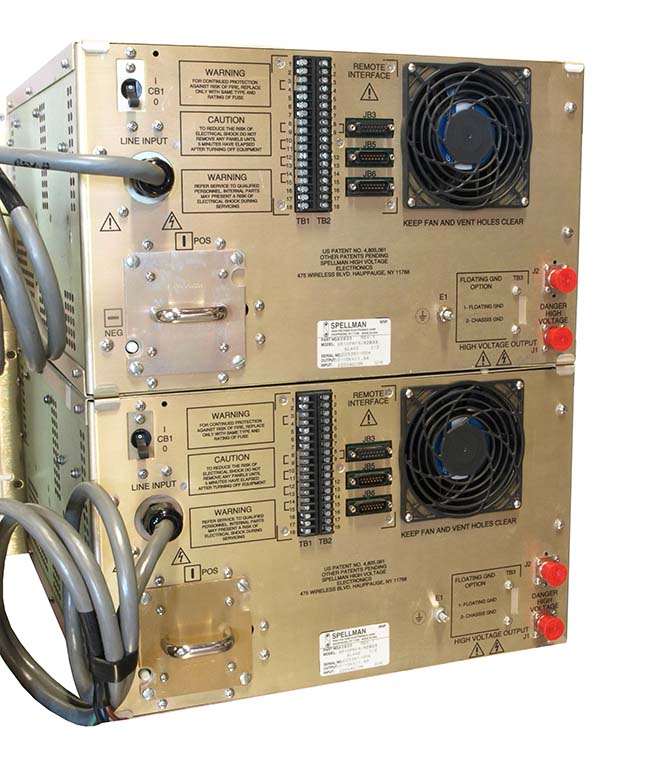

System Consist of The Following :M/N SR10PN16/X2833 (Master)P/N X2833 Rev 1M/N SR10PN16/X2833 (Slave)P/N X2833 Rev 1M/N SR10PN16/X2833(2nd Slave)P/N X2833 Rev 1M/N SR10PN/X2833 (Clamp Chassis)P/N X2833 Rev 1Solid State Dummy LoadMaximum output current of 1.6A is for the master and two slaves combined
We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications
Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions. Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).
