FULL DESCRIPTION of Item 143190

in High Voltage Power Supplies 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 143190

Offered 1 Offered at $ 2,750.00

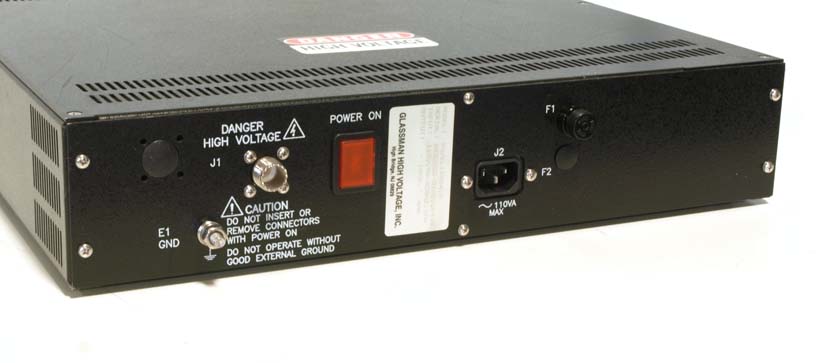

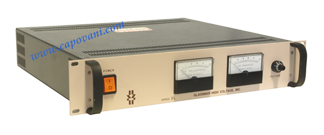

GLASSMAN HIGH VOLTAGE POWER SUPPLY, -10 kV

High Voltage Power Supply Negative Polarity

 GLASSMAN HIGH VOLTAGE POWER SUPPLY, -10 kV
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 2,750.00
Number of Units 1
Manufacturer Glassman (as )
Model PS/EL10N4
Maximum Output Voltage -10.0 kV
Maximum Output Current 4.0 mA
Bipolar No
Panel Meters Analog
Ripple <0.03% RMS of rated voltage at +0.5v at full load
Regulation Better than 0.005%
Interface I/O Port
External Cooling Air Cooled
Accessories

3M (10') HV cable add $200 with the purchase of the power supply, inquire about longer cables.

To purchase HV cable alone the price will be $320 for a 3M (10'), inquire on longer cables.

Other Information

Negative Polarity

We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications



Power Requirements 115 V     48-440 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 18.000  in  (45.7 cm)
  Height 3.500  in  (8.9 cm)
Weight 12  lb  (5 kg)
