Item ID: 124136

**2 Offered at $ 1,095.00 (each)**

GRANVILLE PHILLIPS ION/DUAL CONVECTRON CONTROLLER

Ion/Dual Convectron Controller

Granville Phillips Model 360, can replace 307 controller

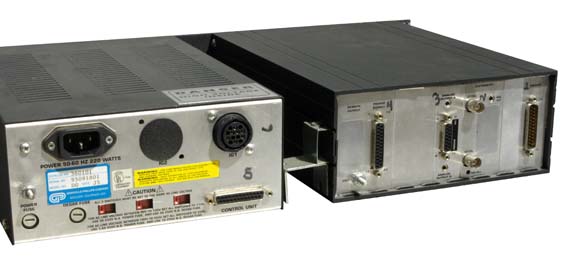

Picture of the controller's back panel is representative

GRANVILLE PHILLIPS ION/DUAL CONVECTRON CONTROLLER

... other image

Location: Scotia, New York

Unit Price	$ 1,095.00 (each)
Number of Units	2
Manufacturer	Granville Phil
Model	360
Description	Single Ion/DualConvectron Controller
Gauge Types Controlled	Ion; Convectron
Cables Included	No
Accessories	Contains: Ion gauge module Add $60 to upgrade for dual ion gauge sequential operation 360106 Dual Convectron module Remote module RS232 module Does NOT have remote I/O Optional 6 channel process control board, can be added if available, +$545 Cable between controller and the power supply included. Please inquire about availability of gauges and serial communication board. Ion gauge cables see items 6799, 179524, 209733
Other Information	This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules. If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both. If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it. If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both. Specify type and sensitivity of your gauges when ordering. Follow this link for the manual
Power Requirements	115 V 50/60 Hz 1 Phase
