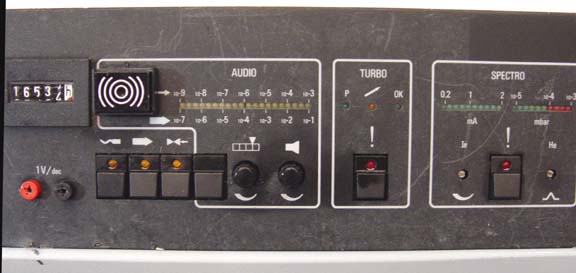

ALCATEL DRY HELIUM LEAK DETECTOR

Dry Helium Leak Detector

ALCATEL DRY HELIUM LEAK DETECTOR
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Alcatel
Model ASM 180 TD
High Vacuum Pump Type Turbomolecular Pump
Minimum Detectable Helium Leak Rate  2.0E-11 atm-cc/sec
Maximum Detectable Leak Rate  1.00E-1 atm-cc/sec
Inlet Port for Auxiliary Pump No
Test Port Connection KF 40
Start Up Time 3 Min.
Helium Pumping Speed at Inlet 4.40  l/s  (9.32 CFM)

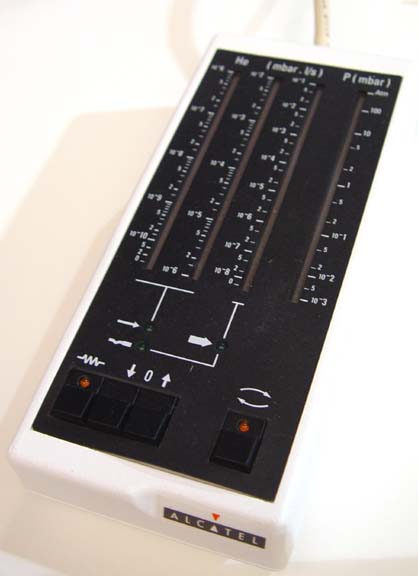

Remote Control Capabilities Yes
Audio Alarm with Variable Pitch Yes
Detectable Masses      4 AMU
Internal Calibrated Leak Not Included
Built-In Roughing Pump Included
Liquid Nitrogen Trap Not Included
Accessories

External He calibration leak 3.7E-8 atm·cc/s,

Other Information

Smallest detectable signal at full pumping speed 5E-12 (atm·cc/s)
Helium signal reading range 2E-11 to 1E-1(atm·cc/s)

Power Requirements 115 V     60 Hz     1 Phase
Condition Very Good
Exterior Dimensions
  Width 23.000  in  (58.4 cm)
  Depth 19.000  in  (48.3 cm)
  Height 20.000  in  (50.8 cm)
Weight 153  lb  (69 kg)
