FULL DESCRIPTION of Item 41744

in Wafer Transfer Units
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 41744

Offered 3 Offered at Best Price

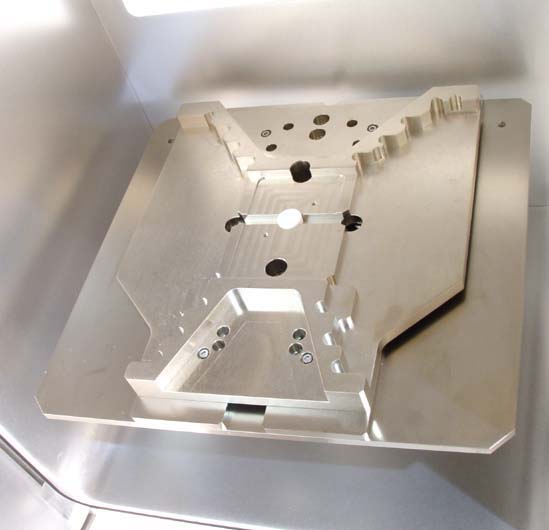

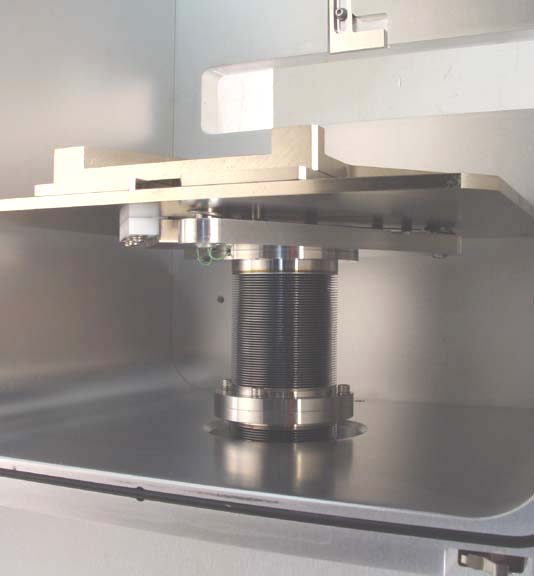

BROOKS AUTOMATION WAFER ELEVATOR/ALIGNER

Wafer Elevator/Aligner

BROOKS AUTOMATION WAFER ELEVATOR/ALIGNER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 3
Manufacturer Brooks Automation
Model VCE2
Description Wafer Elevator/Aligner
Cassette to Cassette YES
Other Information

Substrate/Wafer sizes: 100 mm to 200 mm
Range of motion: 2 mm to 181 mm
Repeatability: +- 0.064 mm
Single step peroid: 1.3Sec/6.35mm travel
Slew rate: 35mm/Sec
Laser light: 1mW at 670nm
Load capacity: 25 Lbs.
RS-232,RS-485 Switch selectable
Discrete I/O

Condition Excellent
