Item ID: 4007

**1 Offered at Best Price**

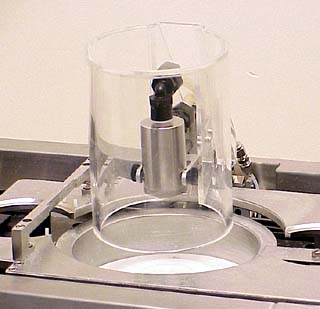

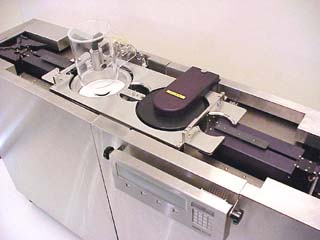

SOLITEC TEMPERATURE CONTROLLED POSITIVE DEVELOPER

Temperature Controlled Positive
Developer with Hot Plate Bake

Designed to develop and hard
bake semiconductor wafers.

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Solitec
Model	820-PTDB
Wafer Size Range
Minimum	50 mm
Maximum	150 mm
Set Size	100 mm
Photoresist Type	Positive
Number of Tracks	1
Number of Hot Plates	1
Controller Type	Microprocessor Controller Type
Accessories	Solitec 8600 Calibration Module

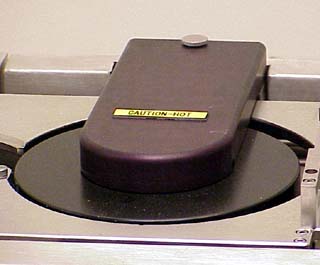

Other Information	System Features and Specifications Load: automatic cassette to cassette Beltless Elevator Cassette: Fluoroware 72 and 82 series Throughput: ~ 80 wafers/hour Completely jacketed process lines, valves, and spray heads Spray or Puddle Develop Microprocessor Controller (10 program capacity) Compact Design (footprint occupies < 6 sq ft Speed Range: 200-8,000 rpm (solid state servo control) Acceleration Range: programmable from 0-40 krpm/s Hot Plate: up to 300ºC vacuum assisted enclosed bake Nitrogen Requirement: 1 connection, 1/4" OD, 60 psi Vacuum Requirement: up to 4 connections, 1/4" OD
Year of Manufacture	1988
Condition	Like New
Vacuum Required	25.00 in Hg (634.99 mm Hg)
Exterior Dimensions
Width	59.000 in (149.9 cm)
Depth	15.500 in (39.4 cm)
Height	37.000 in (94.0 cm)
