Item ID: 4005

**1 Offered at Best Price**

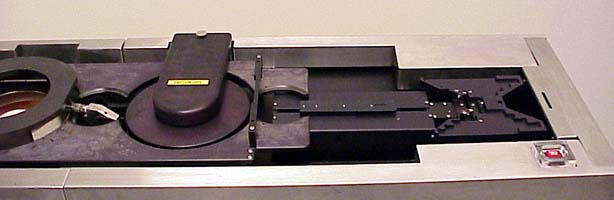

SOLITEC AUTOMATIC TWO-STATION PHOTORESIST COAT & BAKE

Automatic Two-station
Photoresist Coat & Bake

Designed to coat and soft
bake semiconductor wafers.

... other image

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Solitec
Model	820-CB
Wafer Size Range
Minimum	50 mm
Maximum	150 mm
Set Size	100 mm
Number of Tracks	1
Number of Hot Plates	1
Controller Type	Analog Controller Type
Accessories	Solitec 8600 Calibration Module
Other Information	System Features and Specifications Resist Uniformity: 75 angstroms, 3 sigma Microprocessor Controlled (10 program capacity) Fast Hot Plate Bake: +/- 1.5ºC uniformity Speed Range: 200-8,000 rpm (solid state servo control) Acceleration Range: programmable from 0-40 krpm/s Hot Plate: up to 300ºC vacuum assisted enclosed bake Beltless Elevators Nitrogen Requirement: 1 connection, 1/4" OD, 60 psi Vacuum Requirement: up to 4 connections, 1/4" OD
Year of Manufacture	1988
Condition	Like New
Operating Air Pressure	60.00 PSI (413,718.00 N/sq m)
Vacuum Required	25.00 in Hg (634.99 mm Hg)
Exterior Dimensions
Width	59.000 in (149.9 cm)
Depth	15.500 in (39.4 cm)
Height	37.000 in (94.0 cm)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, and Discover Card are accepted.

FULL DESCRIPTION of Item 4005

1 Offered at Best Price

SOLITEC AUTOMATIC TWO-STATION PHOTORESIST COAT & BAKE

**1 Offered at Best Price**
