Item ID: 206582

**1 Offered at Best Price**

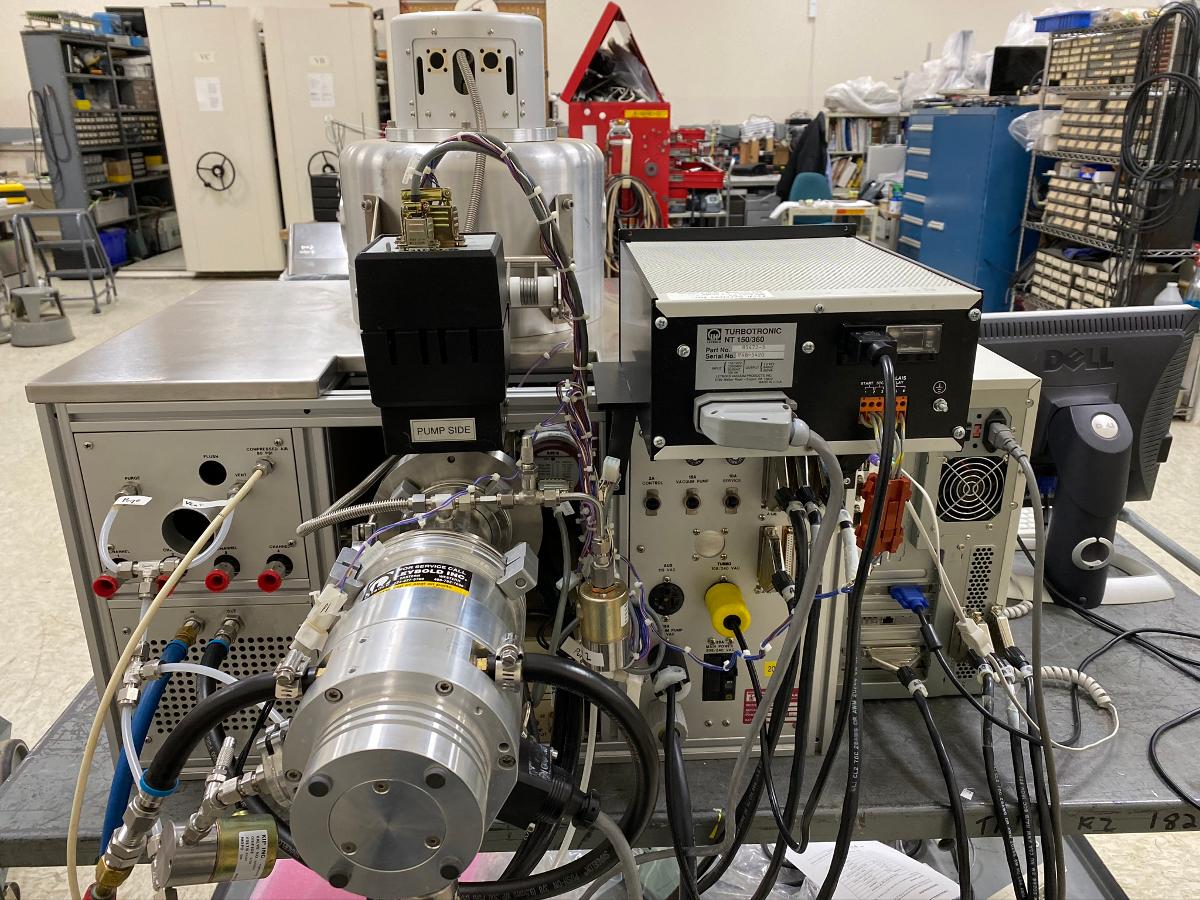

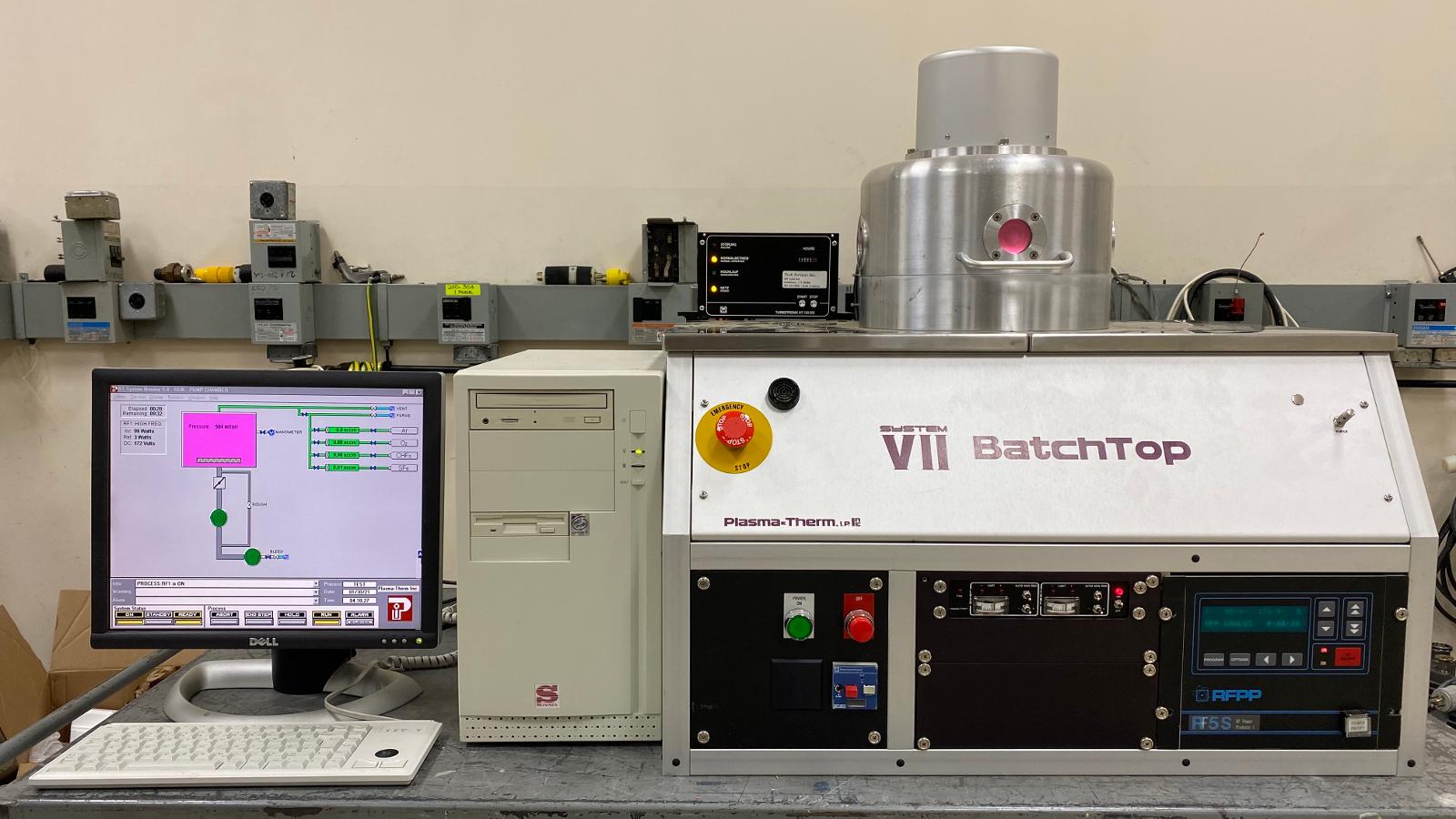

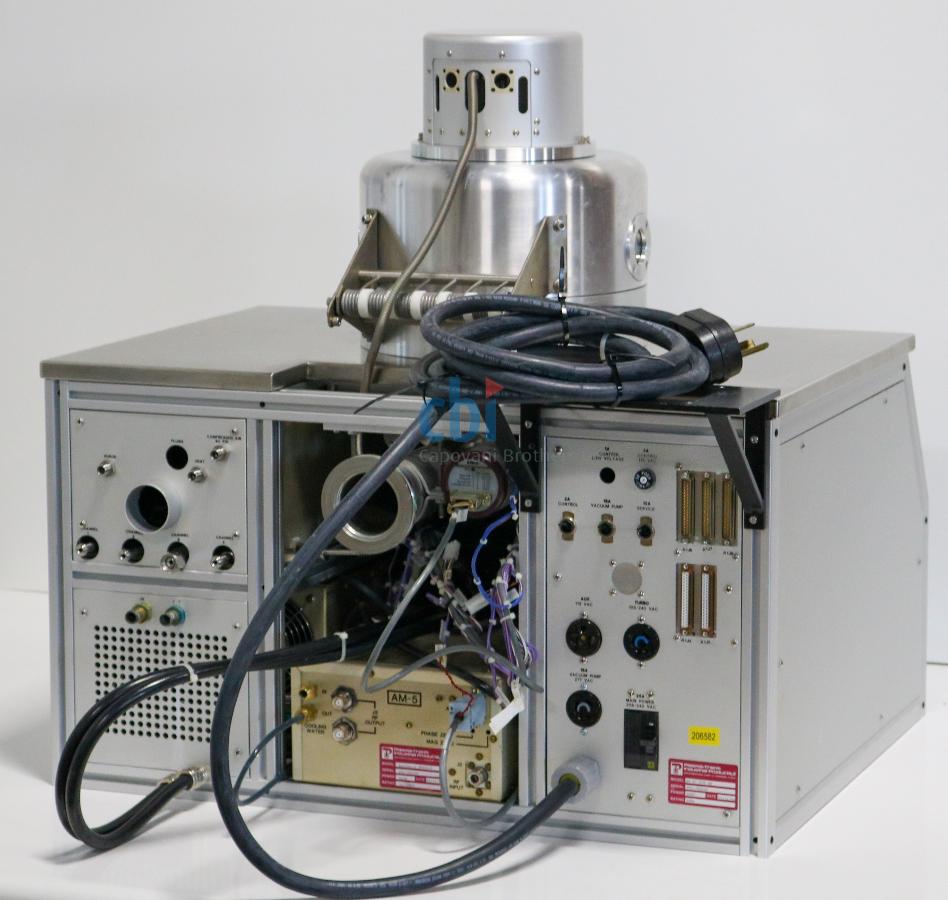

PLASMATHERM BatchTop VII REACTIVE ION ETCH SYSTEM 6"

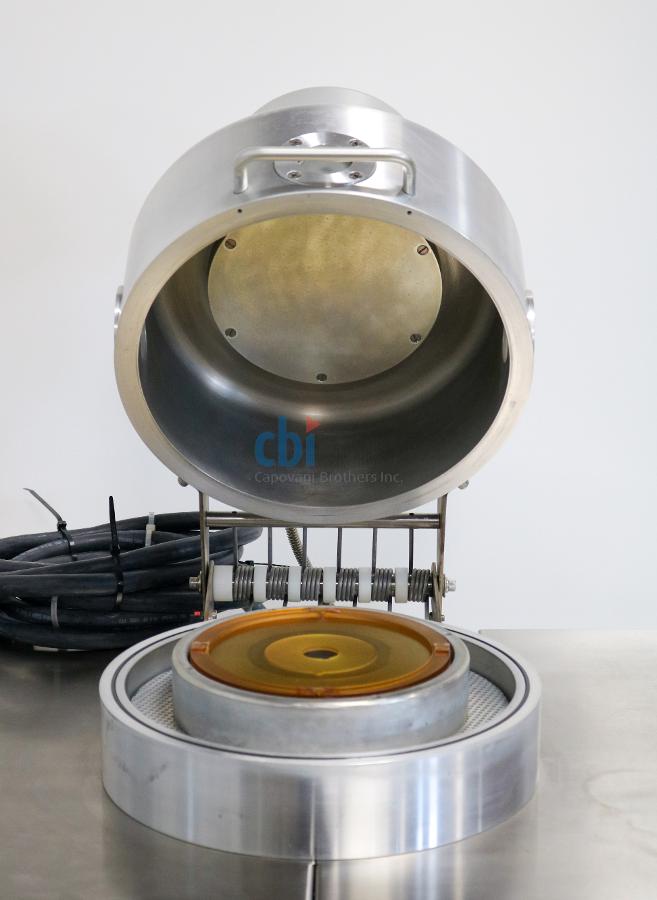

Reactive Ion Etch System

BatchTop VII

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Plasma-Therm
Model	BT 6" RIE MF
Wafer Size Range
Maximum	150 mm
Process	Reactive Ion Etch System
Controller Type	PC Controller Type
High Vacuum Pump	Turbo Pump
Roughing Pump	Edwards RV 12

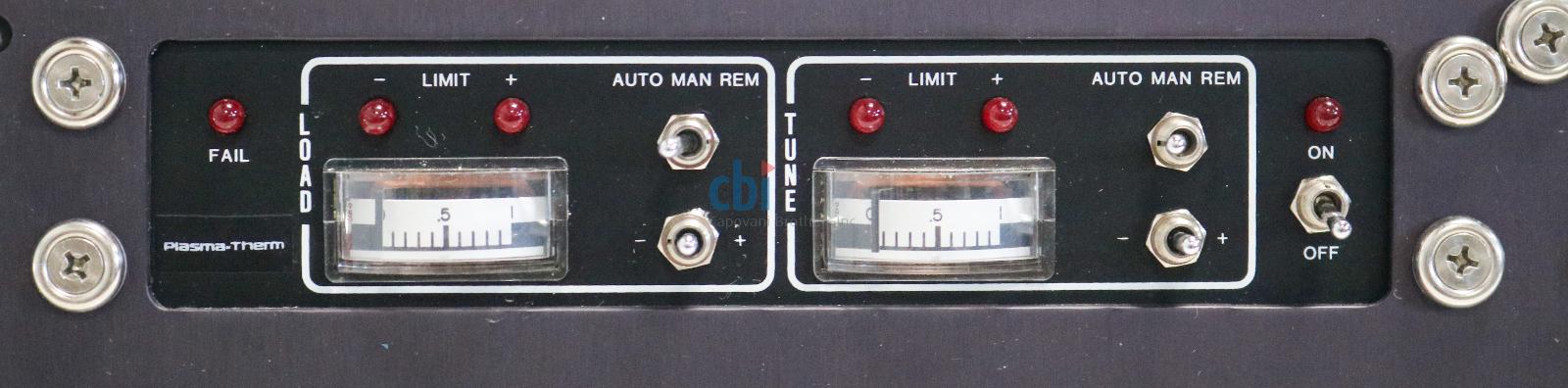

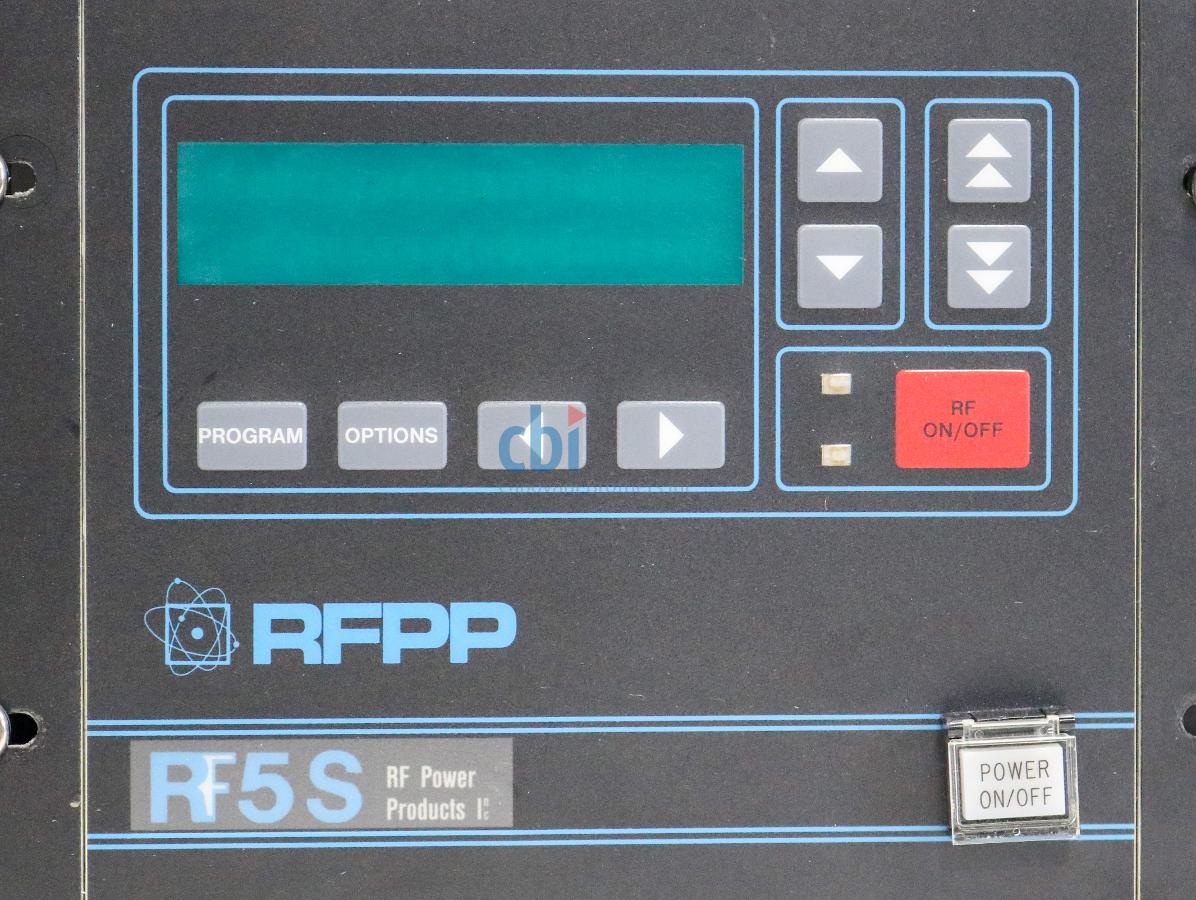

RF Generator Model	RFPP 5S

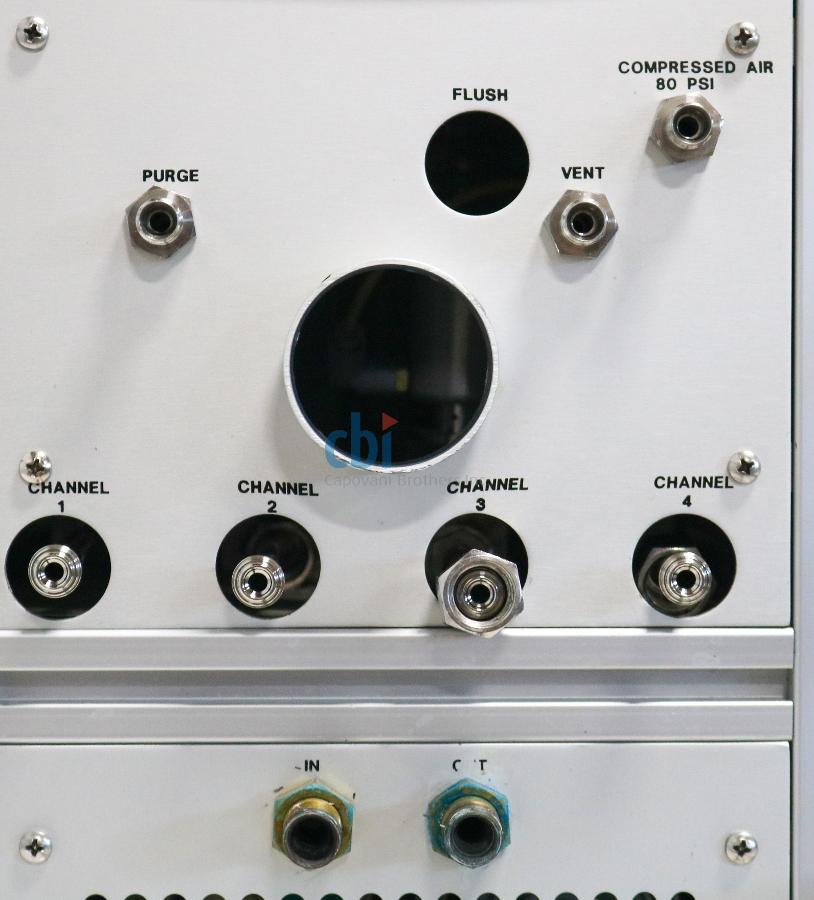

Number of Gas Inputs	Four Gas
Chillers
Number of Chillers	0

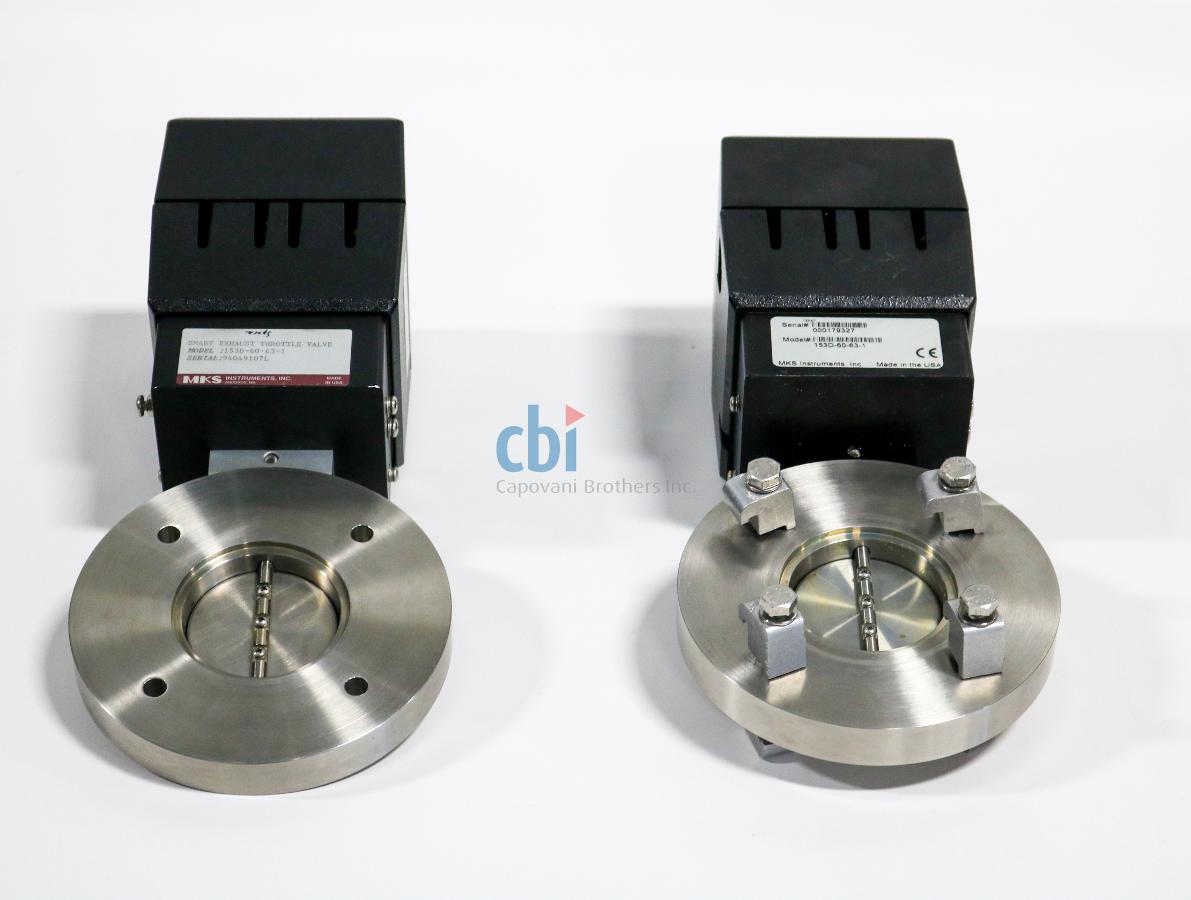

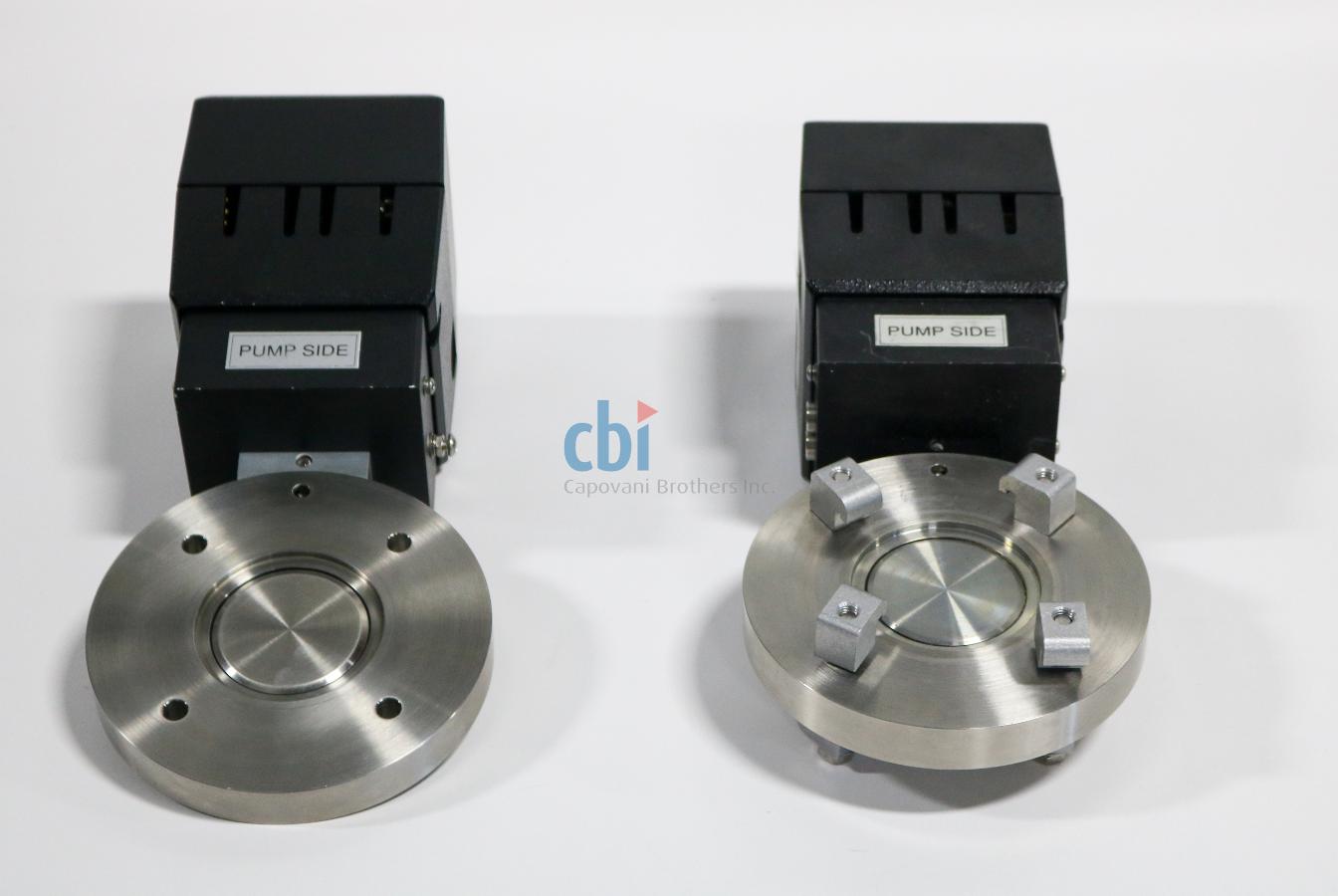

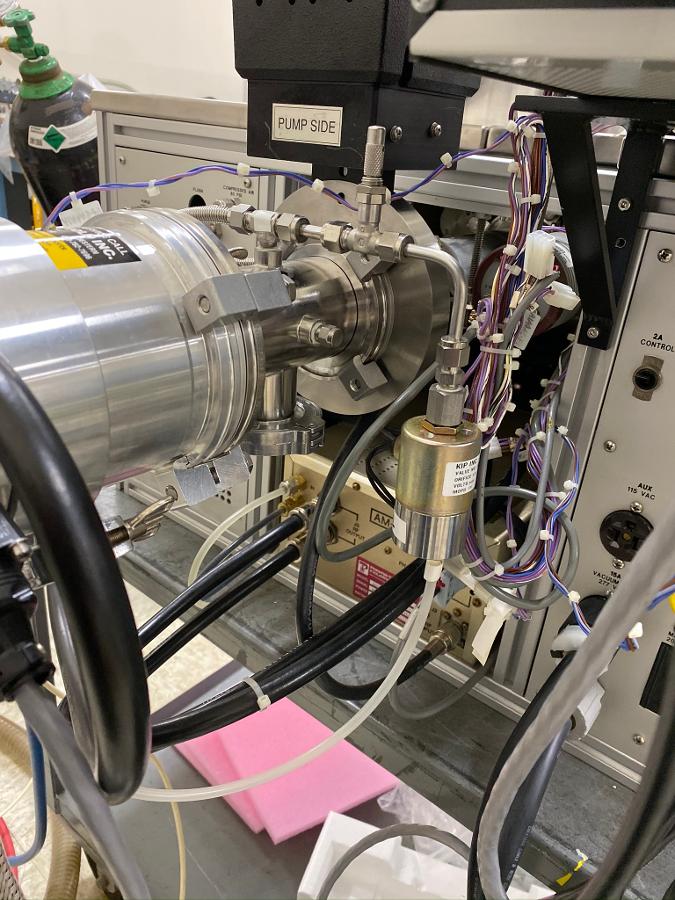

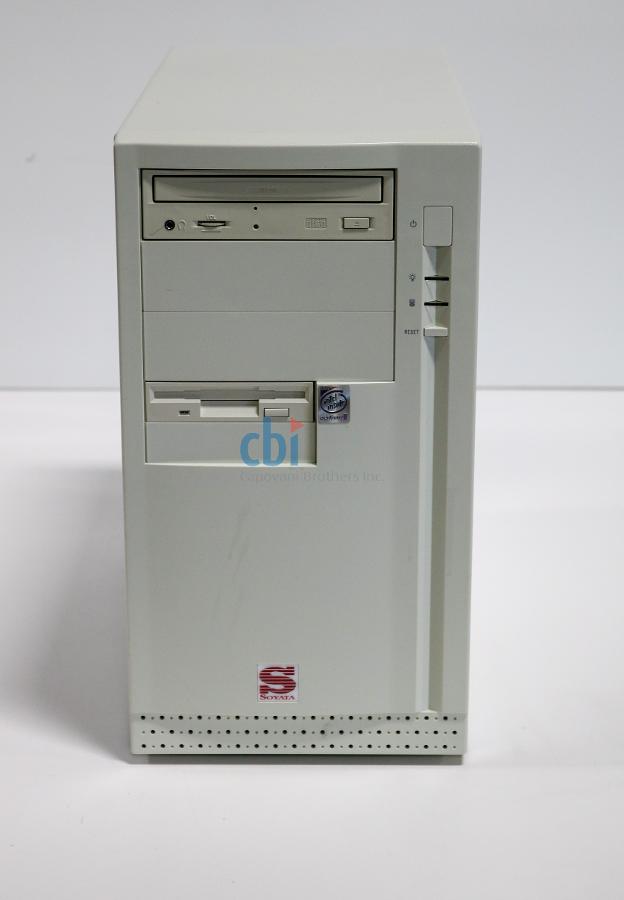

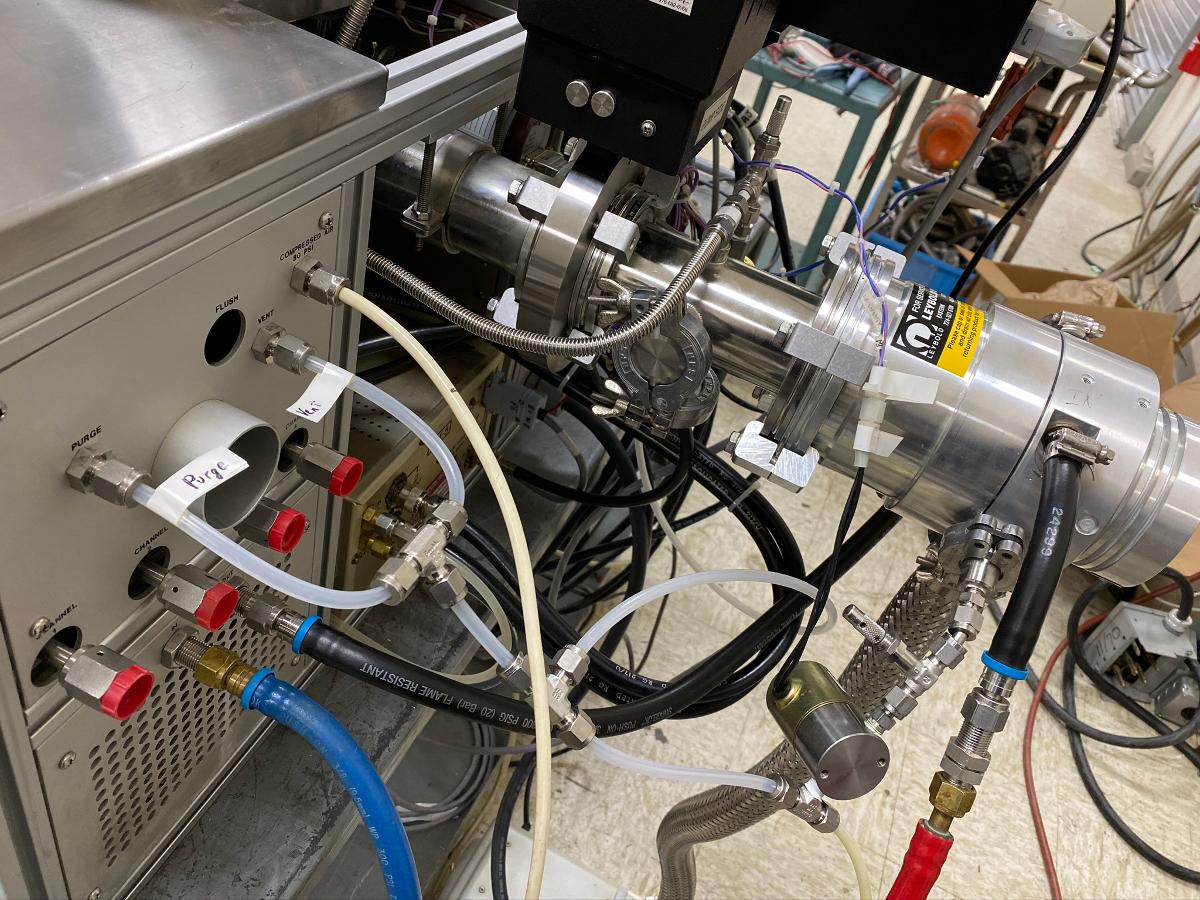

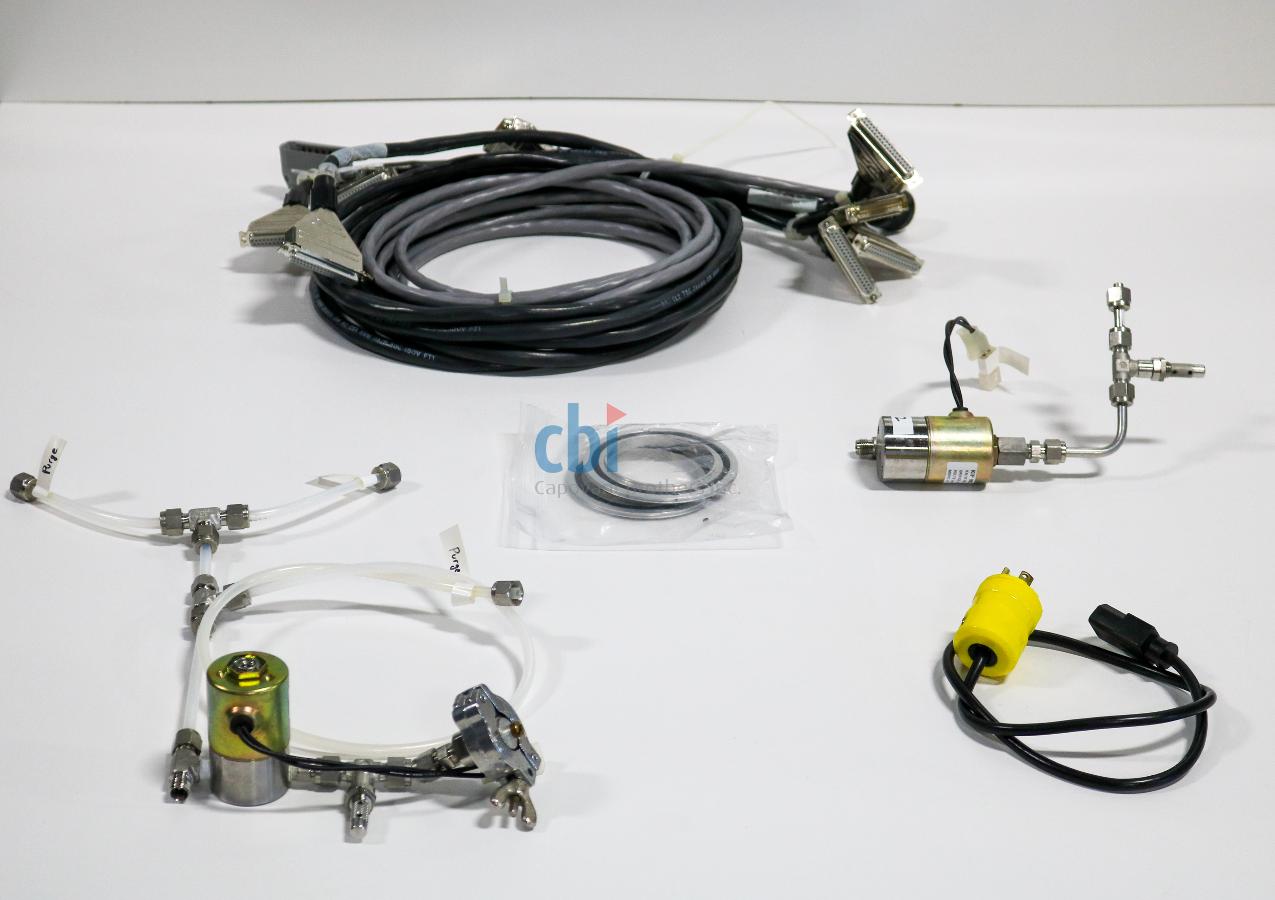

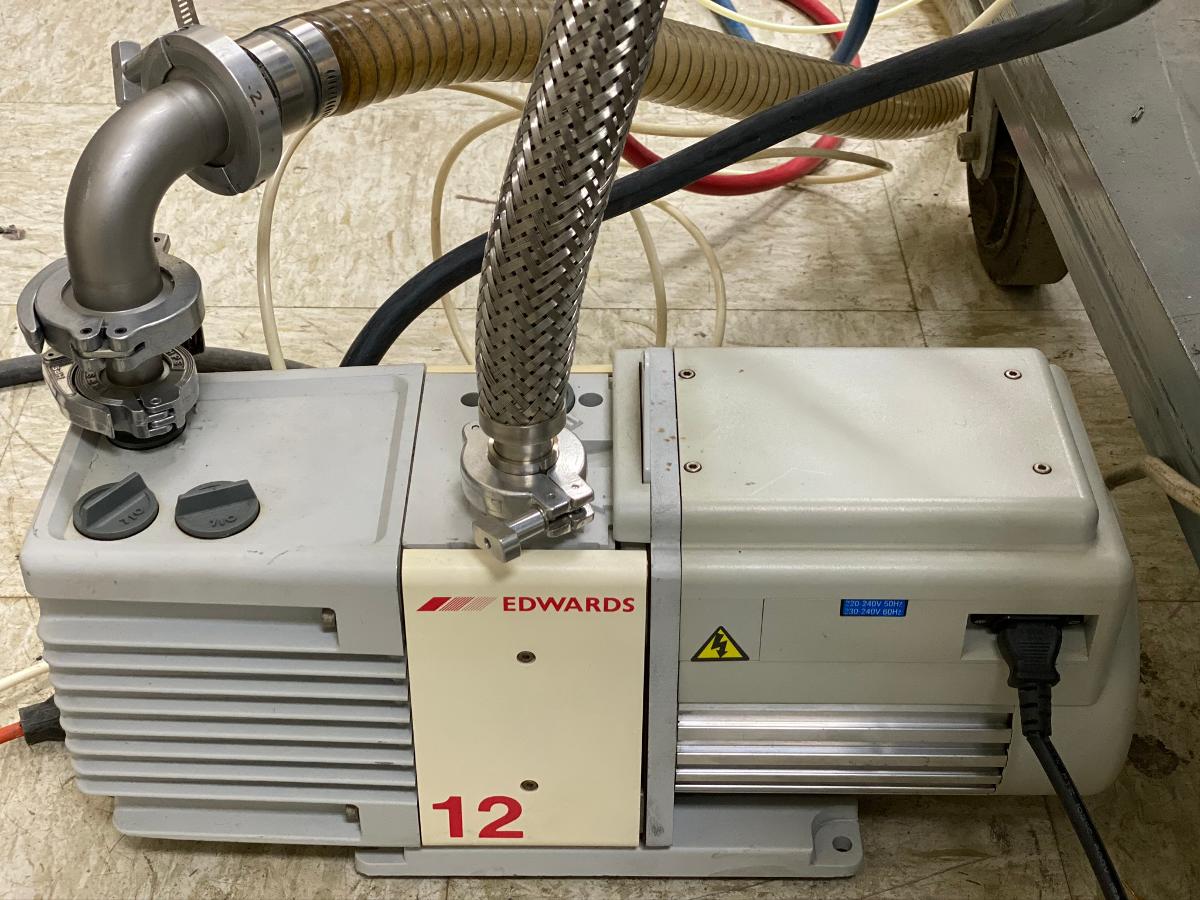

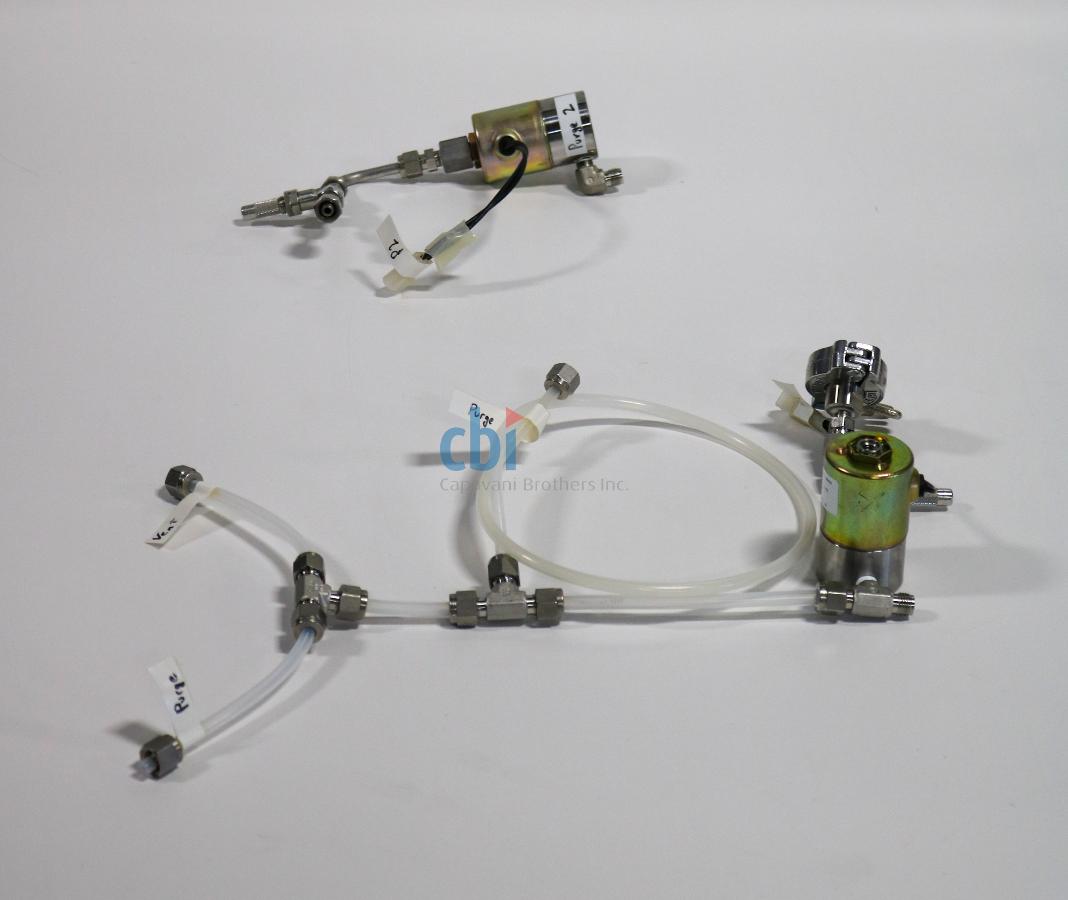

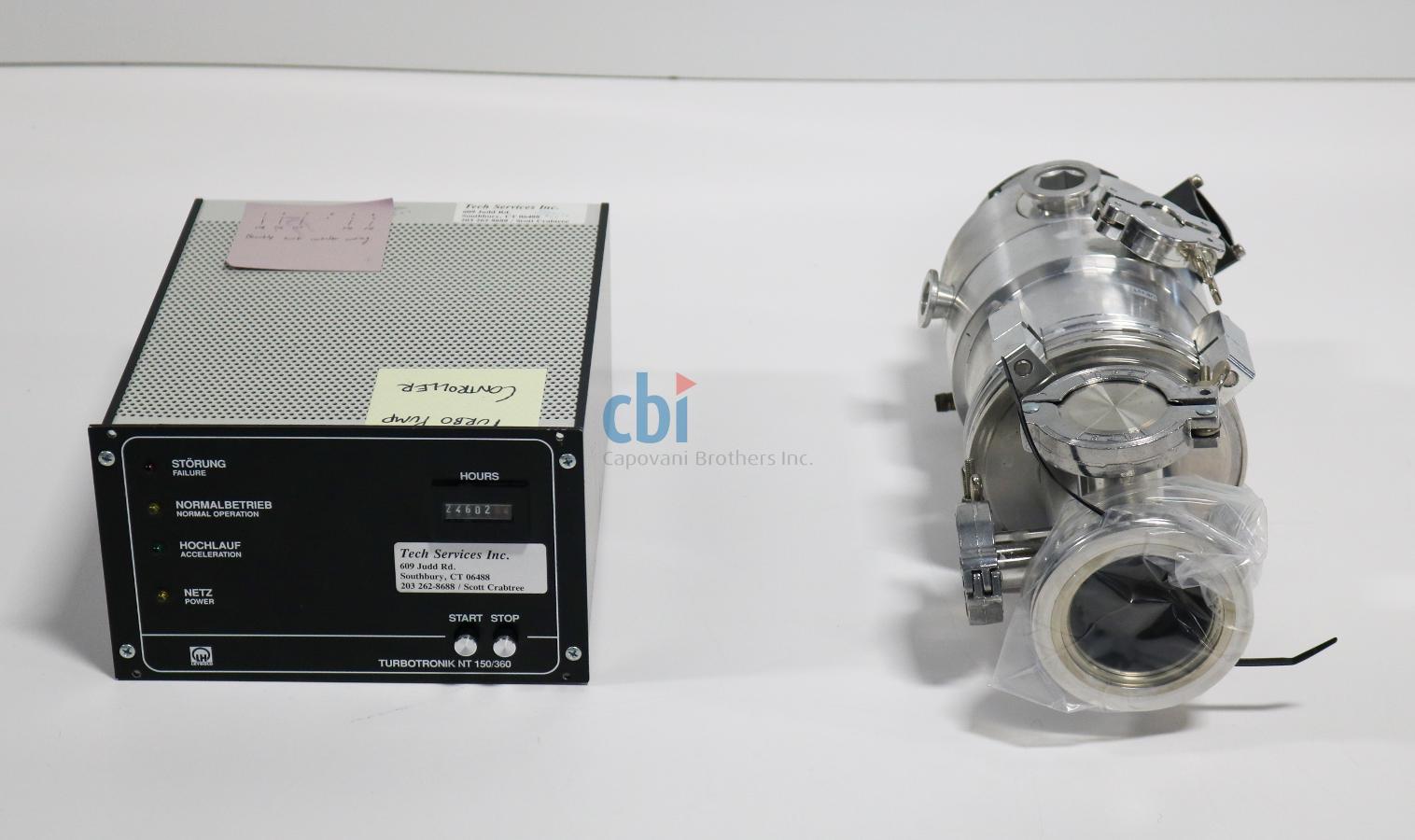

Accessories	Edwards RV 12 mechanical pump Leybold TurboVac 151 Turbo Pump with NT 150/360 Controller (1) MKS Model 153 Throttle Valve (4) MKS Mass Flow Controllers Computer, monitor, keyboard Chiller is NOT included

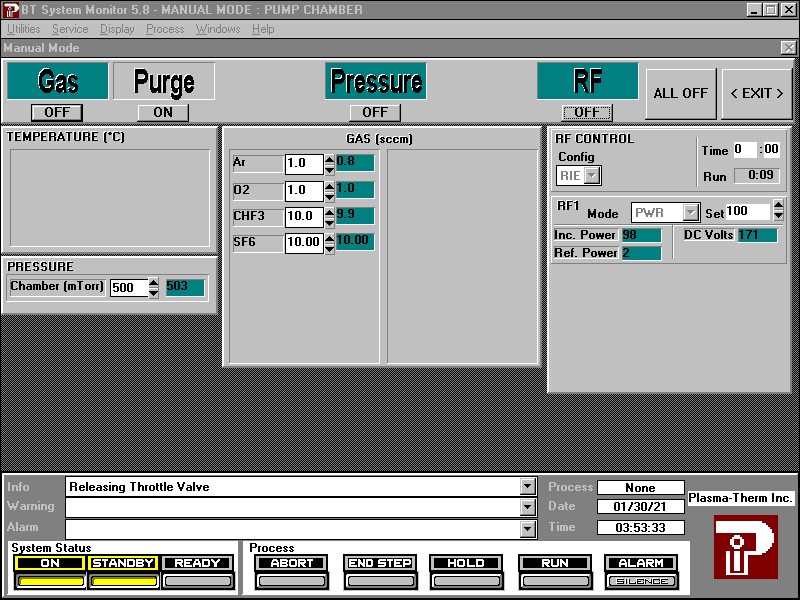

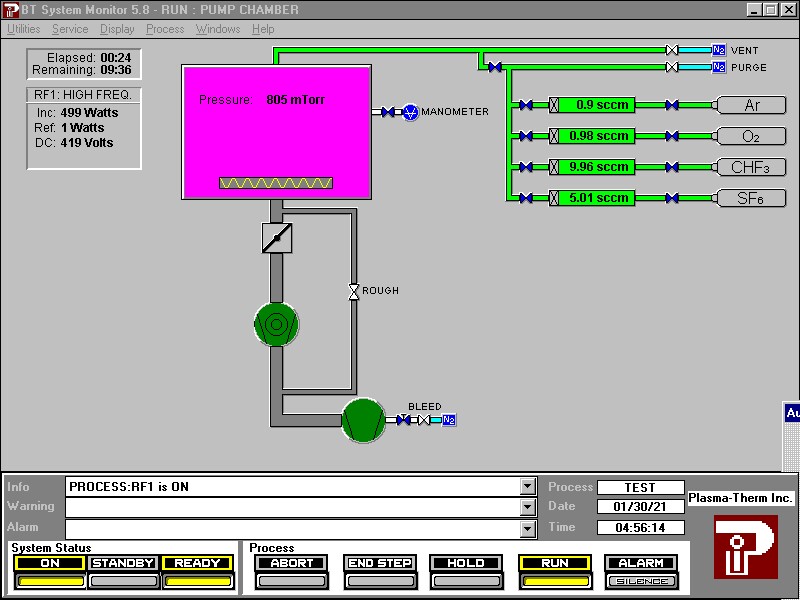

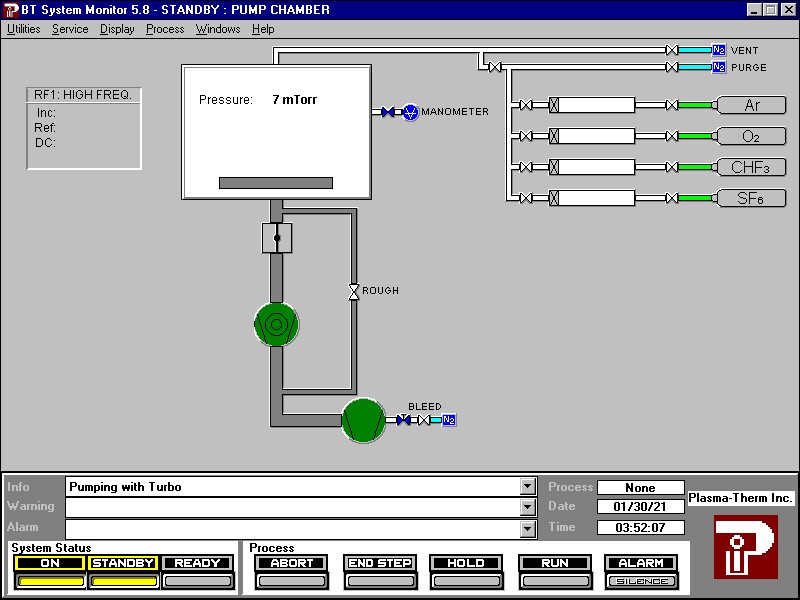

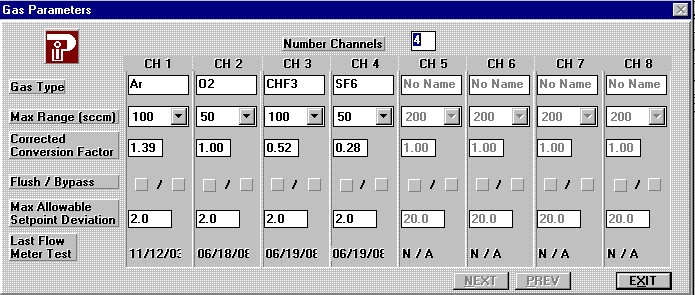

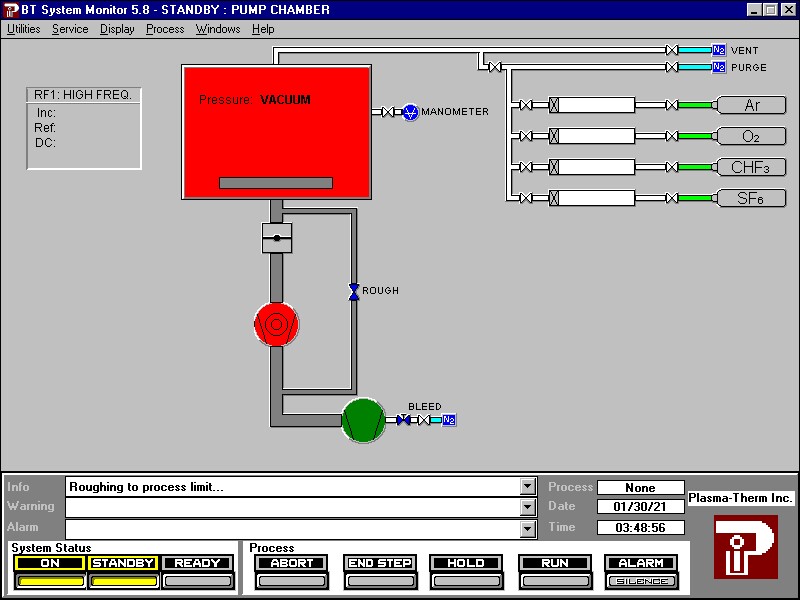

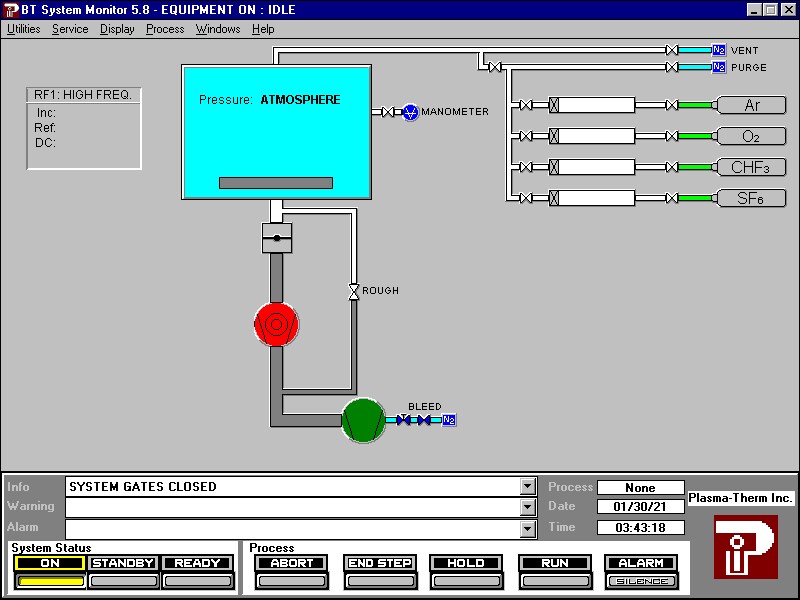

Other Information	Windows 98 operation system. See detail photo #37 in "other images" for gases configuration. System is tested and ready to ship.

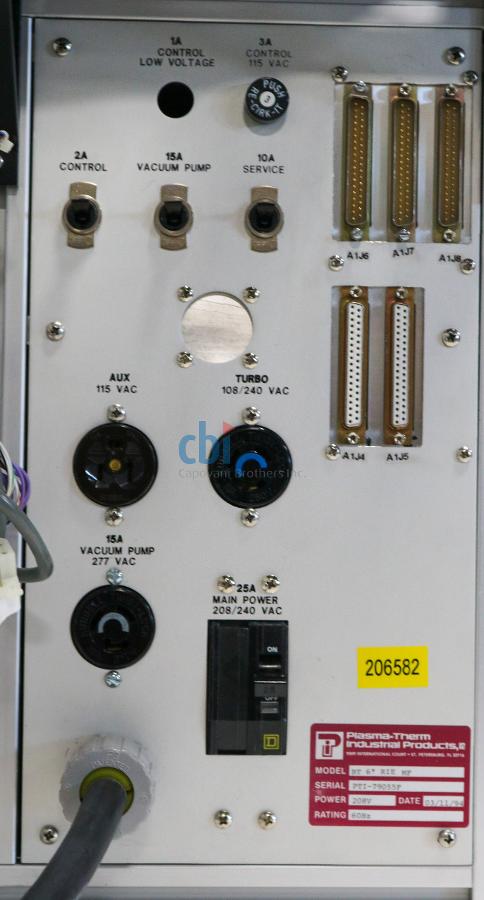

Power Requirements	208 V 60 Hz
Exterior Dimensions
Width	30.500 in (77.5 cm)
Depth	28.000 in (71.1 cm)
Height	30.000 in (76.2 cm)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions

FULL DESCRIPTION of Item 206582
