FULL DESCRIPTION of Item 189203

in Upright Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 189203

Offered 1 Offered at Best Price


NIKON LARGE SUBSTRATE INSPECTION MICROSOPE

Brightfield, Darkfield, POL
Reflected and Transmitted Light

N.B. The Kinetic Systems optical table that the Nikon Microscope is on is not included.  However, it is for sale.  More information at Kinetic Systems 1201-04-11

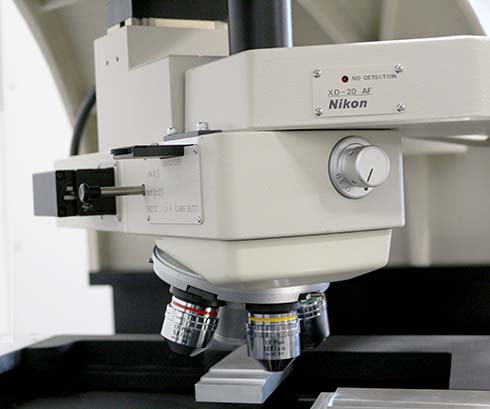

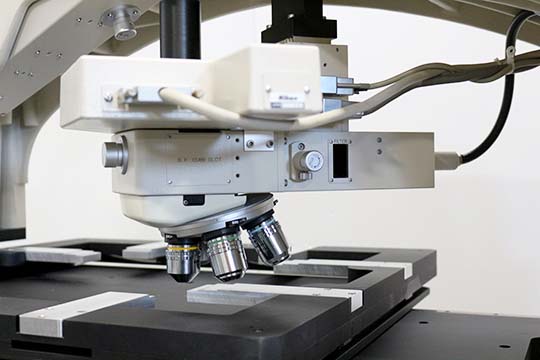

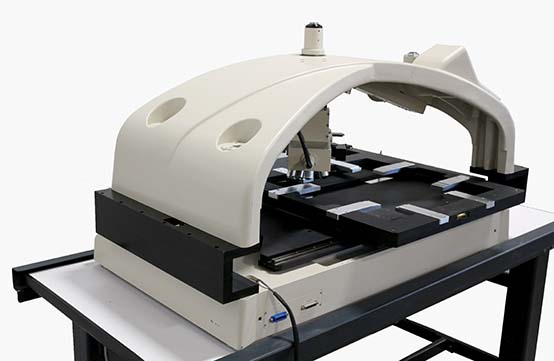

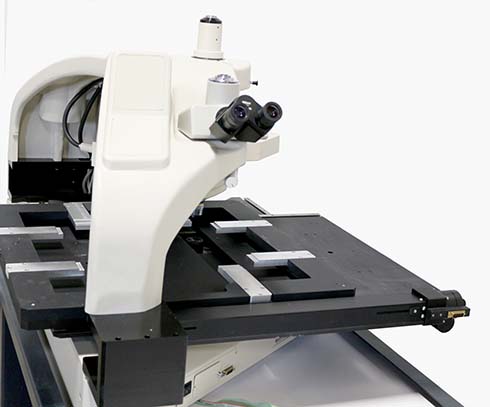

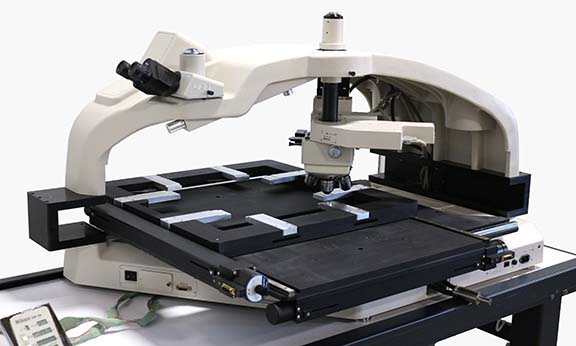

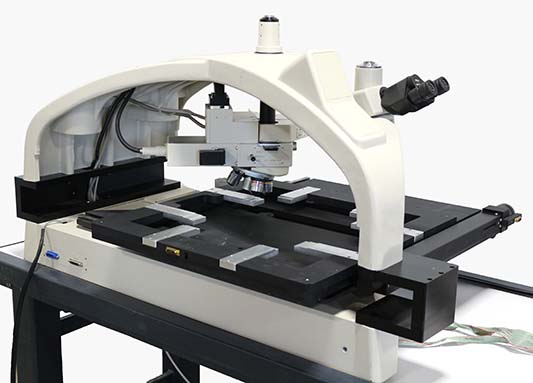

NIKON LARGE SUBSTRATE INSPECTION MICROSOPE
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Nikon
Model XD-20
Microscope Configuration Brightfield, Darkfield, DIC & POL
Illumination Type Reflected & Transmitted Light
Binocular Angle 45°
Eyepieces
  Magnification 10 X
  Field Number 22 mm
Trinocular/Phototube Provided YES

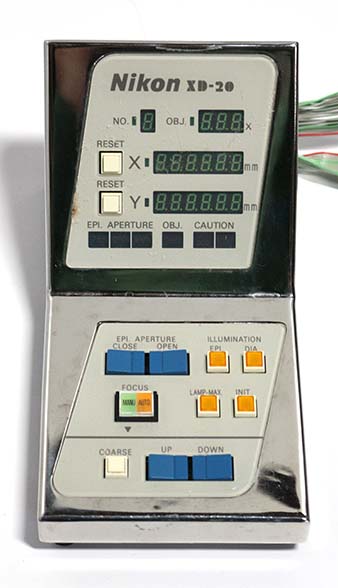

Motorized Nosepiece YES

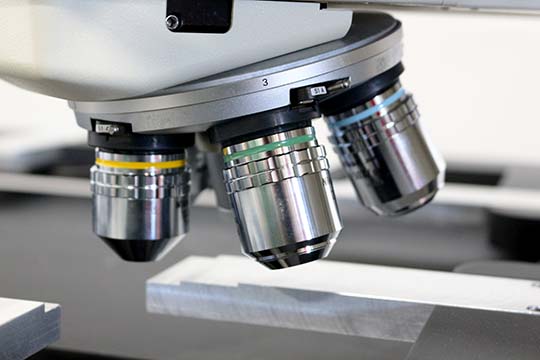

Multiple Objectives Models

CF Plan 05X/0.13 BD
CF Plan 10X/0.30 BD
CF Plan 20X/0.46 BD
CF Plan 50X/0.30 BD

There are nomarski prisms within the nose piece.

Infinity Corrected Objectives YES

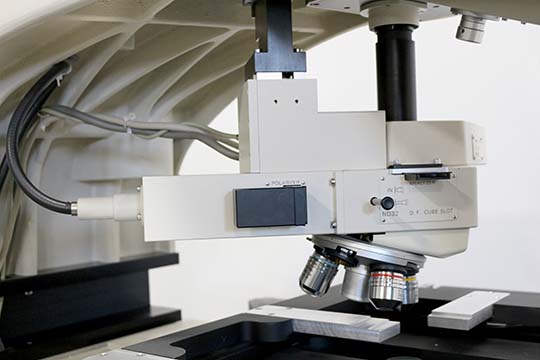

Polarizer YES
Analyzer YES
Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 470  mm  (18.504 in)     Y : 460  mm  (18.110 in)
Camera
  Type None
Accessories

Ludl XY motorized stage.

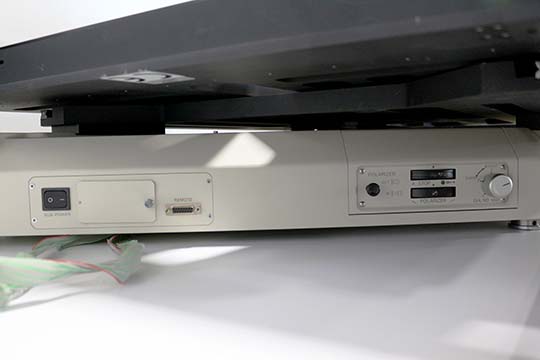

Motorized polarizer

Power Requirements 110/120 V     5.0 A     50/60 Hz     1 Phase
