FULL DESCRIPTION of Item 181401

in Barrel/Box Plasma Etchers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 181401

Offered 1 Offered at Best Price

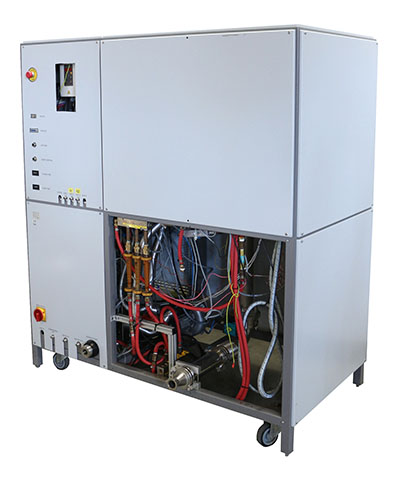

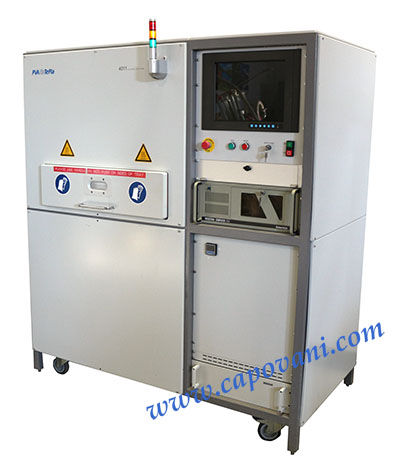

TEPLA PLASMA ETCHER 4000 WATT

Planar Plasma Etcher

TEPLA PLASMA ETCHER 4000 WATT
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Tepla
Model 4011
Etcher Type Planar - Magnetron
Rated Power Output 4000 Watts
Reactor Center Rectangular
Reactor Center Size
  Width 32.28  in  (81.99 cm)
  Depth 27.80  in  (70.61 cm)
  Height 5.43  in  (13.79 cm)
Reactor Center Material Aluminum

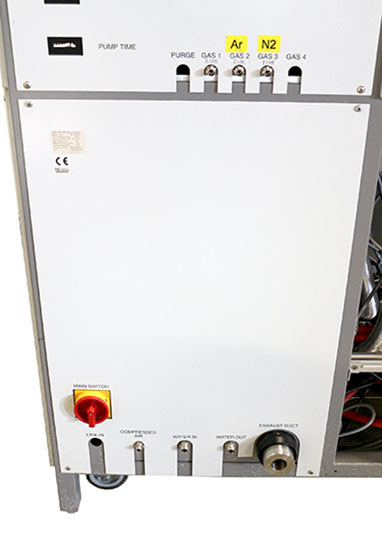

Number of Gas Inputs Four Gas
Automatching Network Included No
Vacuum Pump Included No
RF Generator Model Muegge MX2000D-110LE
External Cooling Water Cooled
Accessories

This Tepla system uses European Power 400v 3phase. Included with this unit is a power supply transfomer that converts US 480 3phase to EURO 400v 3phase needed by this system.

Other Information

Specification
Process chamber:
Material Aluminum
Width 820 mm
Height 138 mm
Depth 706 mm
Chamber door: Aluminum, quartz inspection window with ultraviolet and
high-frequency radiation protection
Vacuum system
Process pressure: Approx. 0.1 - 1 mbar

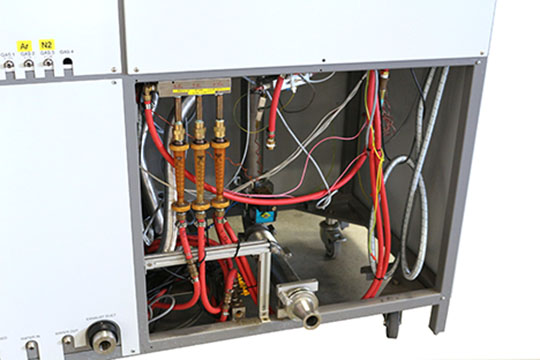

Gas and vacuum piping: High-grade steel, ¼“ Swagelok connections as well as
aluminum KF components
Gas supply: 2 - 4 separate gas ducts (2 option, metering by means
of mass-flow controller
Venting: By means of solenoid valve and series throttle valve

Vacuum
Ultimate pressure attainable: Approx. 0.01 mbar
Vacuum measurement: Capacitive pressure gauge
measuring range from 0.01 to 10 mbar
The suction system is located in the bottom of the chamber.
Electro-pneumatic valve DN 65 ISO-K in suction line. (Optional)

Dimensions:
Height: approx. 1720 mm
Width: approx. 1615 mm
Depth: approx. 950 mm
Weight: approx. 800 kg

Recommended pump equipment
Rotary-vane oil pump, two-stage, filled with PFPE oil
Minimum suction capacity 65 m3 / h
Exhaust filter with oil return
1 meter flexible metal tubing DN 65 ISO-K with connection components
Microwave generator
Regulated Magnetron
Frequency: 2.45 GHz
Power output: 2 x 2000 watts
Fault monitoring: Overload protection

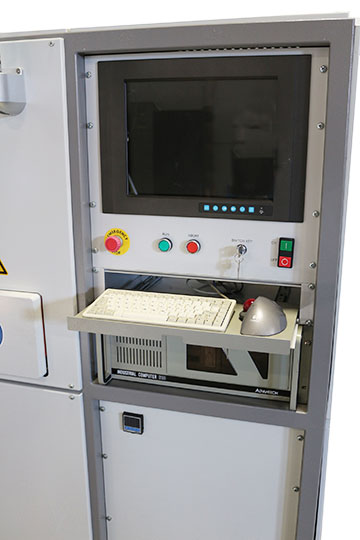

Control unit
Display of:
• Process time
• HF output
• Process pressure
• Gas flow

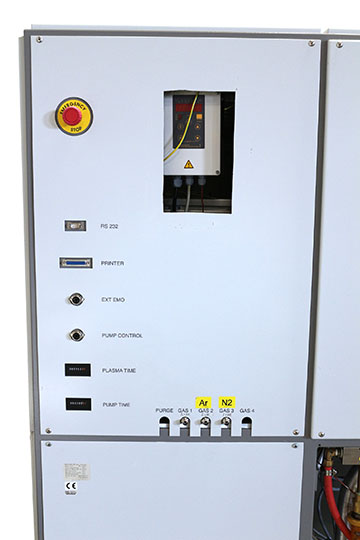

Hardware:
• Centronics printer interface
• PC keyboard with Trackball
• RS 232
Software:

• Unlimited recipes can be programmed and afterwards automatically
processed and put into memory storage.
• A manual operating mode is available for test purposes.
• Superposing of information or fault message windows
Safety features:
• Safety switches on all parts of the housing
• Emergency Off switch
• Defined abortion sequences
• Plasma detection
