FULL DESCRIPTION of Item 3464

in Radio Frequency (RF) Generators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, NY

Item ID: 3464

Offered2 Offered at $ 2,600.00 (each)

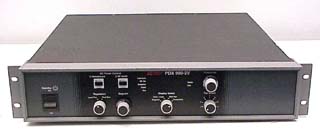

ADVANCED ENERGY RF PLASMA GENERATOR POWER SUPPLY 900W, 350 KHZ

RF Plasma Generator
ADVANCED ENERGY RF PLASMA GENERATOR POWER SUPPLY 900W, 350 KHZ

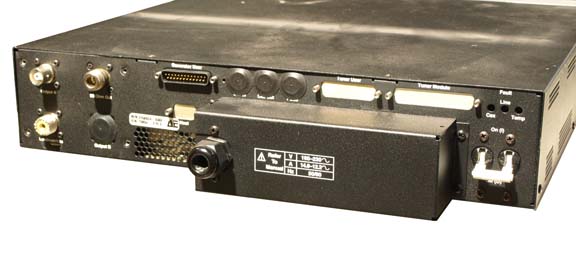

  Click to see additional image(s)... other image

Location: (Scotia, New York )
Unit Price $ 2,600.00 (each)
Number of Units 2
Manufacturer Advanced Energy (as )
Model PDX9002V
Description RF Plasma Generator
Rated Power Output 900 Watts
Frequency 350.00
Scale kHz
Output Impedance 50 Ohms
Input Connector Type N
Output Connector Type N
Panel Meters Digital
External Cooling Forced Air Cooled
Other Information Maximum output voltage: 850V
Maximum output voltage for 50 Ohm load: 300V
RF output: 8 W minimum, 900 W max, accuracy 1% of setpoint
Frequency adjustment: 50 kHz tuning range
Output current: 6.0 amp max
Forward or load power regulation modes
Load matching transformer 25-125 Ohm 7 steps
Extended Description  Details at pdx900-2v specifications.pdf
Power Requirements 220/240 V     20.0 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 20.000  in  (50.8 cm)
  Height 3.500  in  (8.9 cm)
Weight 30  lb  (14 kg)
