FULL DESCRIPTION of Item 24564

in Contact/Proximity Mask Aligners
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 24564

Offered1 Offered at Best Price

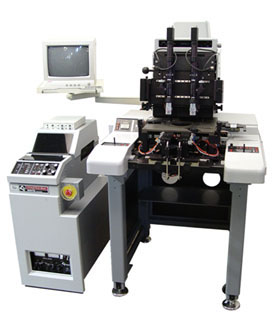

QUINTEL-NEUTRONIX MASK ALIGNER 200 MM

Mask Aligner with IR Backside Alignment

Quintel acquired by Neutronix
QUINTEL-NEUTRONIX MASK ALIGNER 200 MM
  Click to see additional image(s)... other images

Location: Scotia, NY
Unit Price Unstated
Number of Units 1
Manufacturer Quintel
Model UL 7000 IR
Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm
  Set Size 100 mm
Mask Plate Size 5'' x 5''

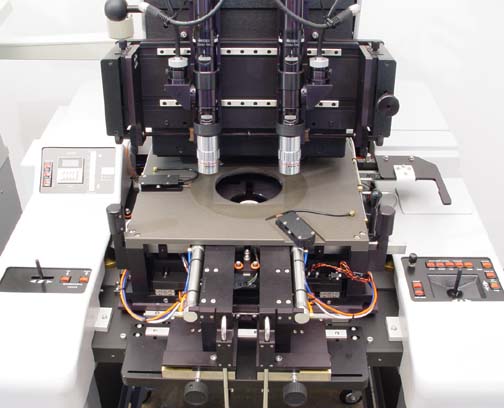

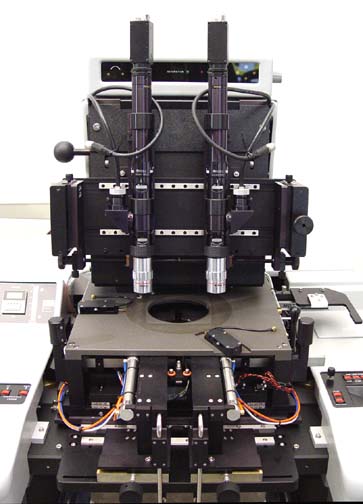

Alignment Optics Splitfield Video
Proximity Alignment Capability YES
IR Backside Alignment  YES
Illuminator Model Number Q-500
Illuminator Power Rating 500 Watts
External Cooling Air Cooled
Other Information Split field video with MPLAN APO 5X objectives

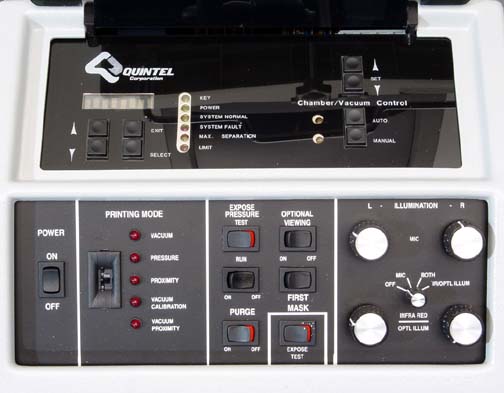

Print Modes:
  • Vacuum
  • Pressure
  • Proximity
  • Vacuum calibration
  • Pressure calibration
Condition Like New
Year of Manufacture 2001
Power Requirements 120/240 V     50/60 Hz     1 Phase
CE Marked YES
Weight 1,134  lb  (514 kg)

OFFERED BY: (click name below to visit its website directly)

Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578).

Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.

Domestic Terms and Conditions

International Terms and Conditions




Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York
