FULL DESCRIPTION of Item 1791

in Multiple Gauge Controllers
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 1791

Offered3 Offered at $ 1,200.00 (each)


GRANVILLE PHILLIPS VACUUM GAUGE CONTROLLER

Dual Ion/Two Convectron Gauge Controller

Refurbished

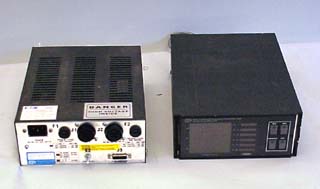

Representative photo



Capable of controlling two ion gauges and two convectron gauges

Granville Phillips 307

GRANVILLE PHILLIPS VACUUM GAUGE CONTROLLER

Location: Scotia, New York
Unit Price $ 1,200.00 (each)
Number of Units 3
Manufacturer Granville Phillips
Model 307212 or 307001
Description Dual Ion/Two Convectron Gauge Controller
Gauge Types Controlled Ion (Bayard Alpert); Convectron
Accessories
  • Power cord
  • Interconnect cable between the power supply and controller
  • Optional 19" rack mounting hardware, can be added if available, +$50
  • Optional I/O connector, can be added if available, +$100
  • Optional 307019 RS232 board, can be added if available, +$200
Gauges and gauge cables are not included, inquire, please.

Ion gauge cables see items 6799 or 179524

Other Information Click here for the manual

307015 standard non-UHV electrometer
307013 option installed for dual convectron gauges
307005 resistive degas option
307006 option for sequential operation of second ion gauge
Inquire for availability of remote I/O board
Can be converted to 230VAC operation, request when ordering


Dimensions and weight:

Control Unit

  • Width 241 mm 9.5 in
  • Height 89 mm (3.5 in.)
  • Depth 356 mm (14 in.) includes 76 mm (3 in.) for connectors and cables
  • Weight 3 kg (6.5 lb.)


Power Unit

  • Width 203 mm (8 in.)
  • Height 89 mm (3.5 in.)
  • Depth 330 mm (13 in.) includes 89 mm (3.5 in.) for connectors and cables
  • Weight 4 kg (8.5 lb.)



Power Requirements 100-127 V     3.0 A     50/60 Hz
