FULL DESCRIPTION of Item 1643

in Upright Microscopes
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, NY

Item ID: 1643

Offered1 Offered at Best Price

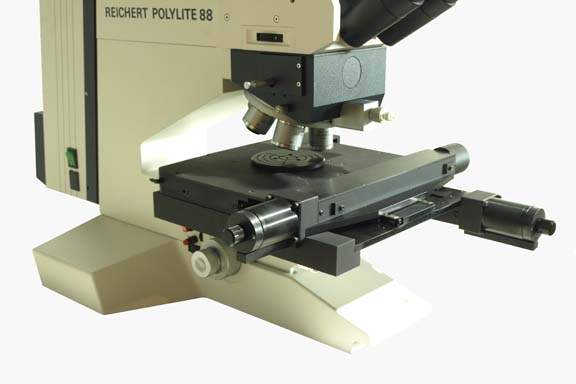

LEICA/REICHERT METALLURGICAL MICROSCOPE

Metallurgical Microscope - Camera and controller not included
LEICA/REICHERT METALLURGICAL MICROSCOPE
  Click to see additional image(s)... other images

Location: (Scotia, NY )
Unit Price Unstated
Number of Units 1
Manufacturer Leica
Model POLYLITE88
Microscope Configuration Brightfield, Darkfield & DIC
Illumination Type Reflected Light
Binocular Angle Variable
Eyepieces
  Model WPK
  Magnification 10 X
  Field Number 20 mm
  Focusing YES
Magnification Changer 1.0, 2.0
Multiple Objectives Models PLAN FLUOR LWD 5X/0.10 EPI
PLAN FLUOR LWD 10X/0.20 EPI IK
PLAN FLUOR XLWD 20X/0.40 EPI IK
PLAN FLOUR 50X/0.60 EPI 1K
PLAN FLUOR 100X/0.70 EPI 1K
Infinity Corrected Objectives YES
Illumination Power Volts: 13     Watts: 85
Power Supply Included YES
Stage Type Coaxial X-Y
Stage Area Length: 318  mm  (12.520 in)     Width: 318.0  mm  (12.520 in)
X-Y-Z Stage Travel X: 204  mm  (8.031 in)     Y : 204  mm  (8.031 in)     Z : 20  mm  (0.787 in)

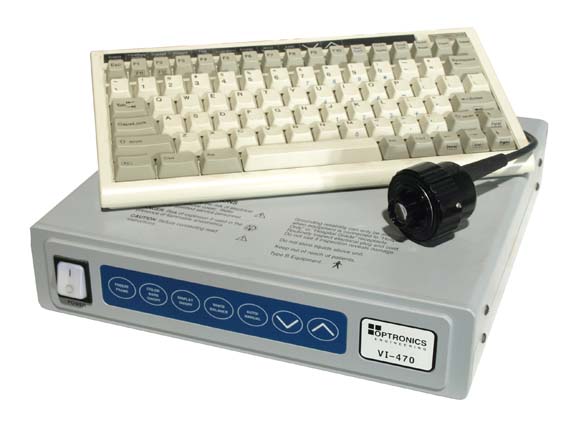

Camera
  Type None
Power Requirements 120/240 V     47-63 Hz     1 Phase
Condition Excellent
Exterior Dimensions
  Width 20.000  in  (50.8 cm)
  Depth 30.000  in  (76.2 cm)
  Height 28.000  in  (71.1 cm)
