FULL DESCRIPTION of Item 133831

in Vacuum Pumping Systems
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 133831

Offered 2 Offered at Best Price

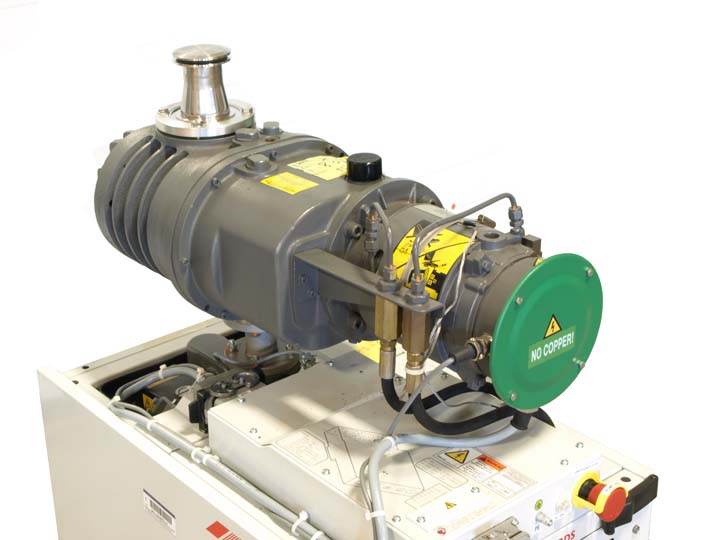

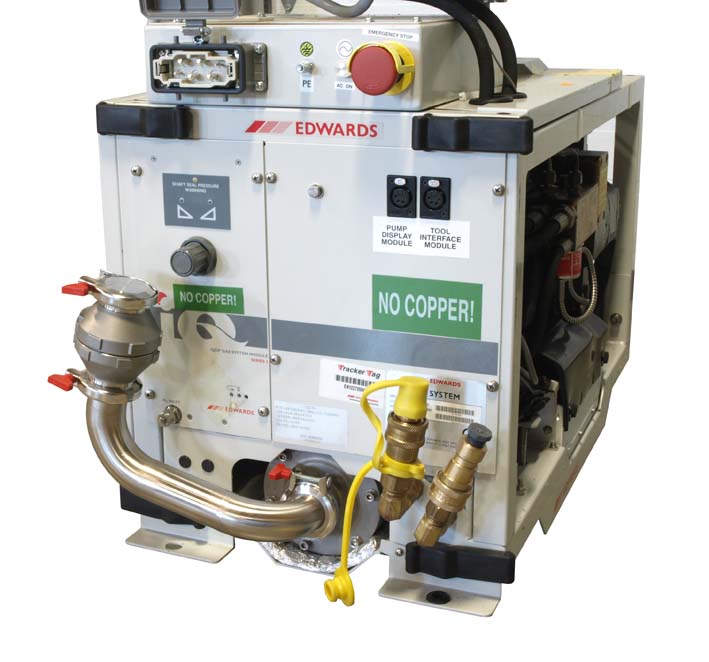

EDWARDS VACUUM IQDP DRY VACUUM PUMPING SYSTEM 171 CFM

Vacuum Pumping System

EDWARDS VACUUM IQDP DRY VACUUM PUMPING SYSTEM 171 CFM
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 2
Manufacturer Edwards
Model IQDP40/QMB250
Dry Pump YES
Pumping Speed 171.0  CFM  (4,832.0 l/m)
Ultimate Pressure  1.50E-3(En)  torr  (2.00E-3 mbar)
Inlet Flange ISO-K     63.0  mm  (2.480 in)
Exhaust Flange KF     40.0  mm  (1.575 in)
Backing Pump Model iQDP40
Roots Pump Model QMB250
Accessories

Shaft seal pressure warning
iQDP gas system module

Other Information

Water Cooled

Power Requirements 208 V     60 Hz     3 Phase
CE Marked YES
Exterior Dimensions
  Width 34.000  in  (86.4 cm)
  Depth 17.000  in  (43.2 cm)
  Height 34.500  in  (87.6 cm)
Weight 620  lb  (281 kg)

OFFERED BY:
(click name below to visit its website directly)
Capovani Brothers Inc.
Scotia , New York
1.518.346.8347

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).


Payment:

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
