FULL DESCRIPTION of Item 43846

in Electron Beam Evaporators
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 43846

Offered 1 Offered at Best Price


TEMESCAL E-BEAM EVAPORATOR, 6 POCKET

E Beam Evaporator

TEMESCAL E-BEAM EVAPORATOR, 6 POCKET
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 1
Manufacturer Temescal
Model BJD 1800
Description E Beam Evaporator, 10CC Crucible
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
  Power Supply Type Solid State
  High Voltage Minimum 3 kV
  High Voltage Maximum 10 kV
  Process Control Voltage Minimum 0 Volts DC
  Process Control Voltage Maximum 10 Volts DC
  Number of Guns Controlled 1
  Lateral/Longitudinal Beam Sweep Temescal
  Electron Source Type Six Pocket
  Crucible Size 10.00  cc  (0.61 cu in)
Vacuum System

CTI Onboard 8 cryopump
CTI 8011 Controller
CTI Compressor 1020R

Film Thickness Monitor Yes
Residual Gas Analyzer Yes
Accessories

Leybold TSP-TH100 RGA

Other Information

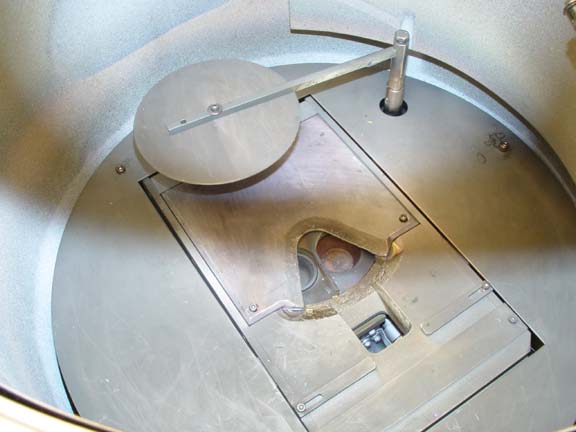

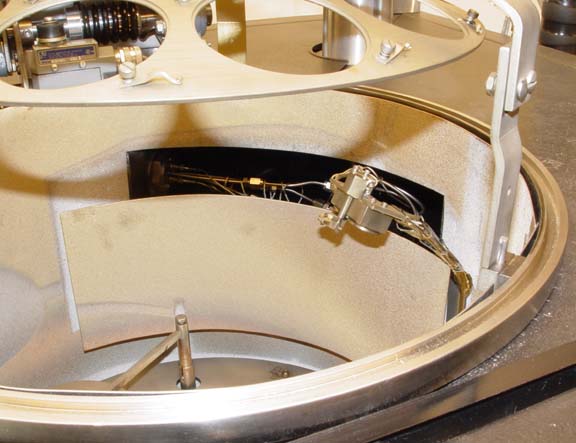

Chamber:

  • 18" Dia., water cooled
  • Dual crystal sensor
  • TP 8-18 Substrate fixtrue

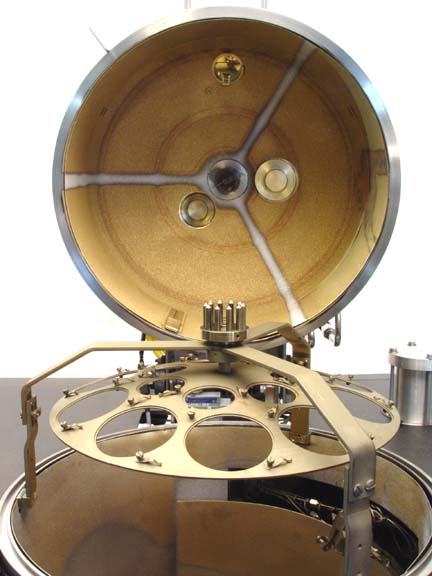

  • Single dome configured for (10)3" Wafers and (7) 2" Wafers

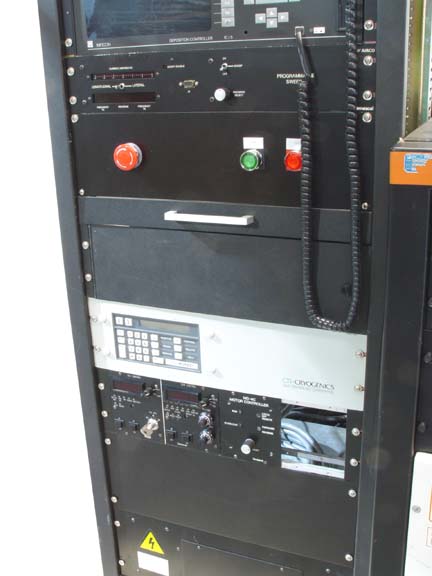

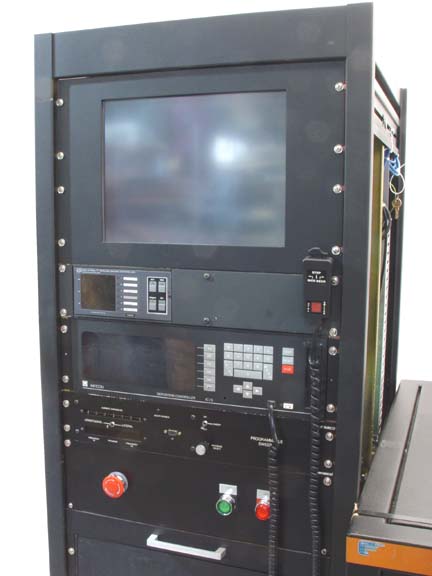

    Control console:
  • Fanuc system computer
  • Granville Philips 360 Gauge controller
  • Leybold IC/5 Deposition control
  • Temescal programmable sweep control
  • Edwards Hi vac control
  • MC-4C Planetary motor control

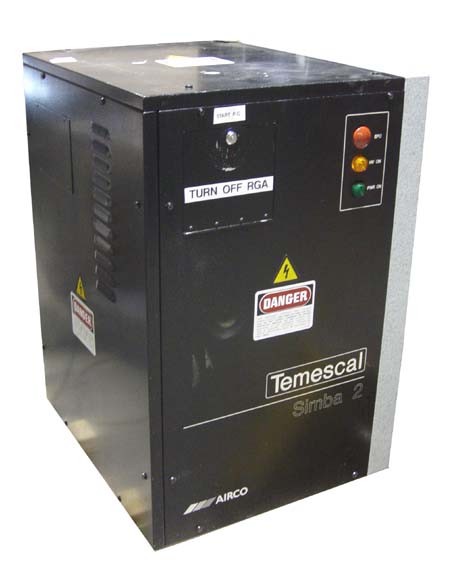

  • SIMBA 2 power supply
  • Temescal gun control
Power Requirements 208 V     100.0 A     50/60 Hz     3 Phase
Condition Very Good
Exterior Dimensions
  Width 56.000  in  (142.2 cm)
  Depth 34.000  in  (86.4 cm)
  Height 41.000  in  (104.1 cm)
