FULL DESCRIPTION of Item 39887

in High Voltage Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 39887

Offered 4 Offered at Best Price


HITEK POWER SYSTEMS HIGH VOLTAGE POWER SUPPLY, 140 kV 114 mA

High Voltage Supply

Formerly Advance Hivolt

HITEK POWER SYSTEMS HIGH VOLTAGE POWER SUPPLY, 140 kV 114 mA
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 4
Manufacturer Hitek Power Sys (as )
Model OL8000/144/08
Maximum Output Voltage 140.0 kV
Maximum Output Current 114.0 mA
Panel Meters None
Ripple 0.2% Peak to peak
External Cooling Forced Air Cooled
Accessories

Applications:

  • Ion implantation
  • Ion vapor deposition
  • Chemical vapor deposition
  • Electron beam welding
  • Electron guns
  • High voltage testing
  • Particle accelerators
  • CE Label
Other Information

System configuration

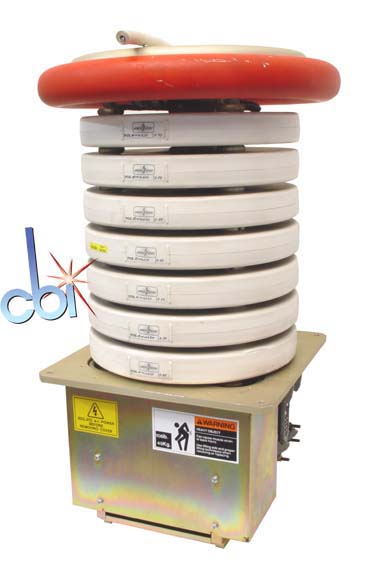

  • Two stacks

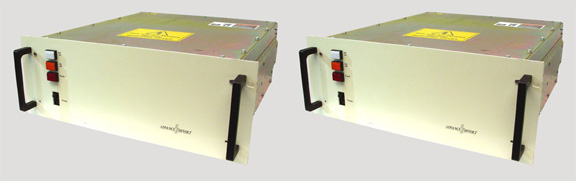

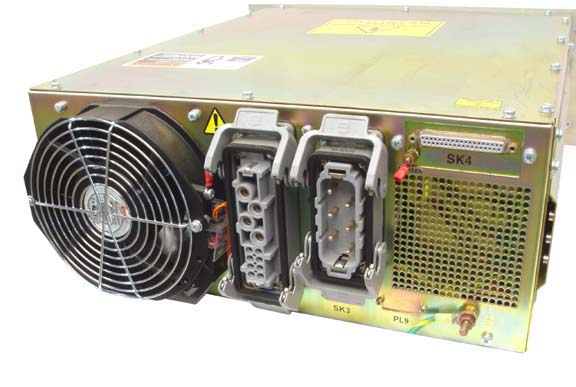

  • One master controller
  • One slave controller
  • One interface module
  • Positive polarity
Power Requirements 200-240 V     34.0 A     47-63 Hz     3 Phase
CE Marked YES
Condition Very Good
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 23.000  in  (58.4 cm)
  Height 7.000  in  (17.8 cm)
Weight 196  lb  (89 kg)
