FULL DESCRIPTION of Item 182177

in DC Power Supplies
Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 182177

Offered 1 Offered at $ 500.00

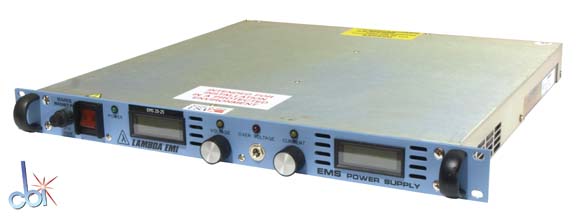

LAMBDA ELECTRONIC MEASUREMENTS INC DC POWER SUPPLY 5V, 50A

DC Power Supply

LAMBDA ELECTRONIC MEASUREMENTS INC DC POWER SUPPLY 5V, 50A

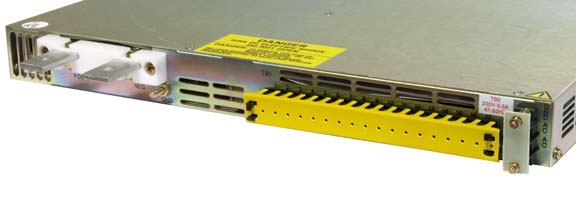

  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 500.00
Number of Units 1
Manufacturer Electronic Measuremt (as )
Model EMS 5-50
Maximum Output Voltage 5.00 Volts
Maximum Output Current 50.00 Amps
Maximum Output Power 0.25 kW
Regulation Modes Constant Current     Constant Voltage
Ripple 100 mV
Panel Meters Digital
Interface I/O Port
Control Type Analog Setpoint
External Cooling Forced Air Cooled
Other Information


Overvoltage Protection
Full Model Number: 5-50-2-D-1244
Can be converted for 115VAC operation, request when ordering

Extended Description  Details at 83473000_EMS_STD Rev J.pdf
Power Requirements 230 V     8.5 A     47-63 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 21.000  in  (53.3 cm)
  Height 1.750  in  (4.4 cm)
Weight 18  lb  (8 kg)
