Item ID: 113600

**1 Offered at Best Price**

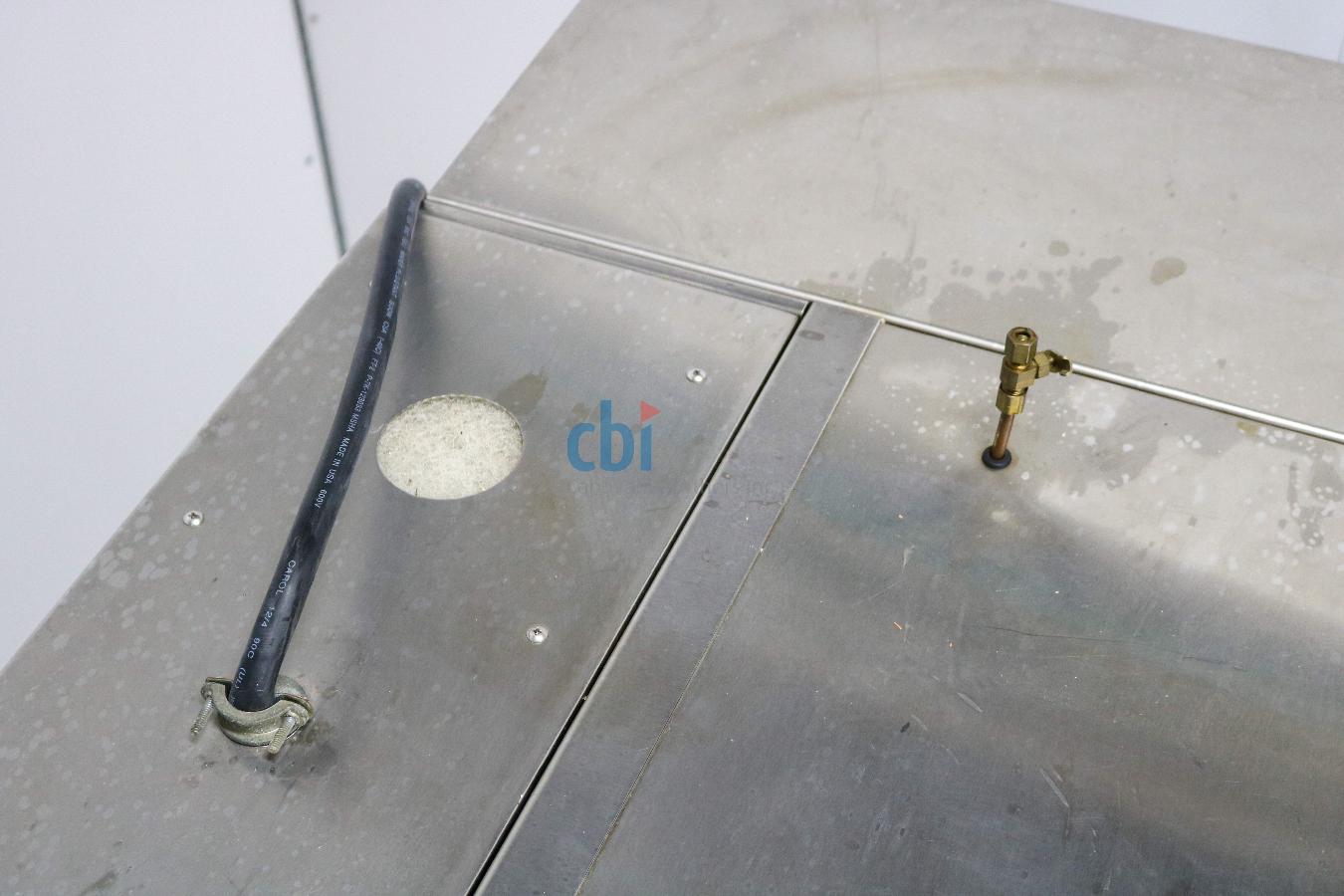

TENNEY VACUUM OVEN / DRYING CHAMBER 150ºC

4.5 Cubic Foot Vacuum Oven/Drying Chamber

... other images

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Tenney
Model	4.5SVO
Maximum Temperature	150 ºC (302 ºF, 423 ºK)
Minimum Temperature	25 ºC (77 ºF, 298.00 ºK)
Heat/Cool Controls
Control Type	Digital Setpoint
Overtemperature Protection	YES
Chart Recorder	Strip-Single Pen
Controller Manufacturer/Model	Watlow/96
Number of Control Zones	1
Capacity/Volume Box	4.50 cu ft (0.13 cu m)

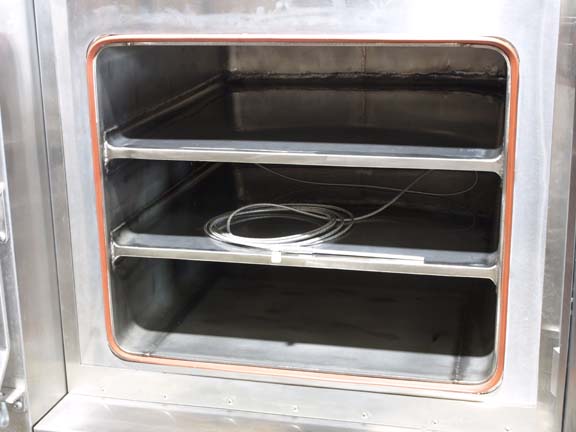

Chamber Size
Width	22.00 in (55.88 cm)
Depth	24.00 in (60.96 cm)
Height	18.00 in (45.72 cm)
Chamber Characteristics
Chamber Construction	316 Stainless Steel
Number of Shelves Provided	2
Viewing Window	YES
External Cooling	Water Cooled

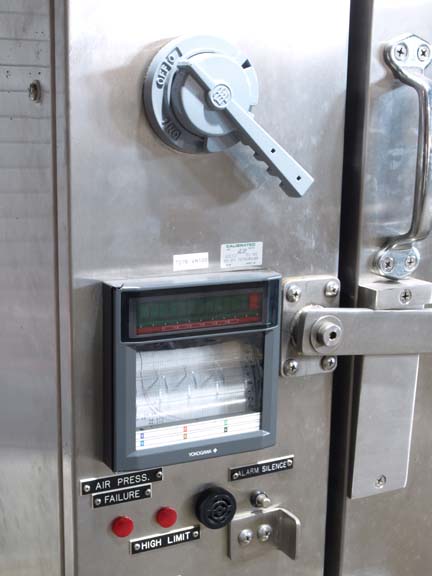

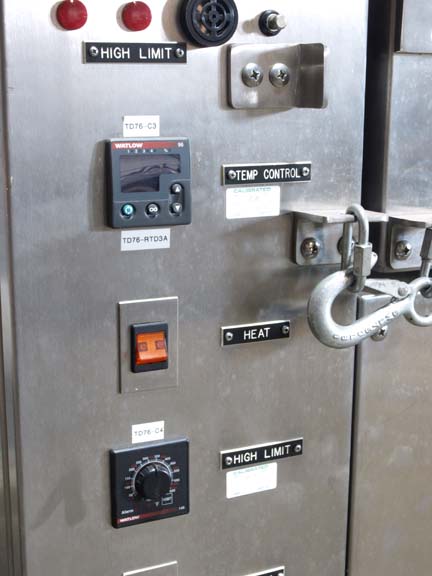

Accessories	High Limit: Watlow 145 Series Vacuum System Montior: Watlow 96 Series Pressure Transducer MKS: Series 722A Chart Recorder: Yokogawa VR100 Process Timer: Eagle CX200 Viewing Window: 12" x 12" Shelves: Two (2) fully welded in place

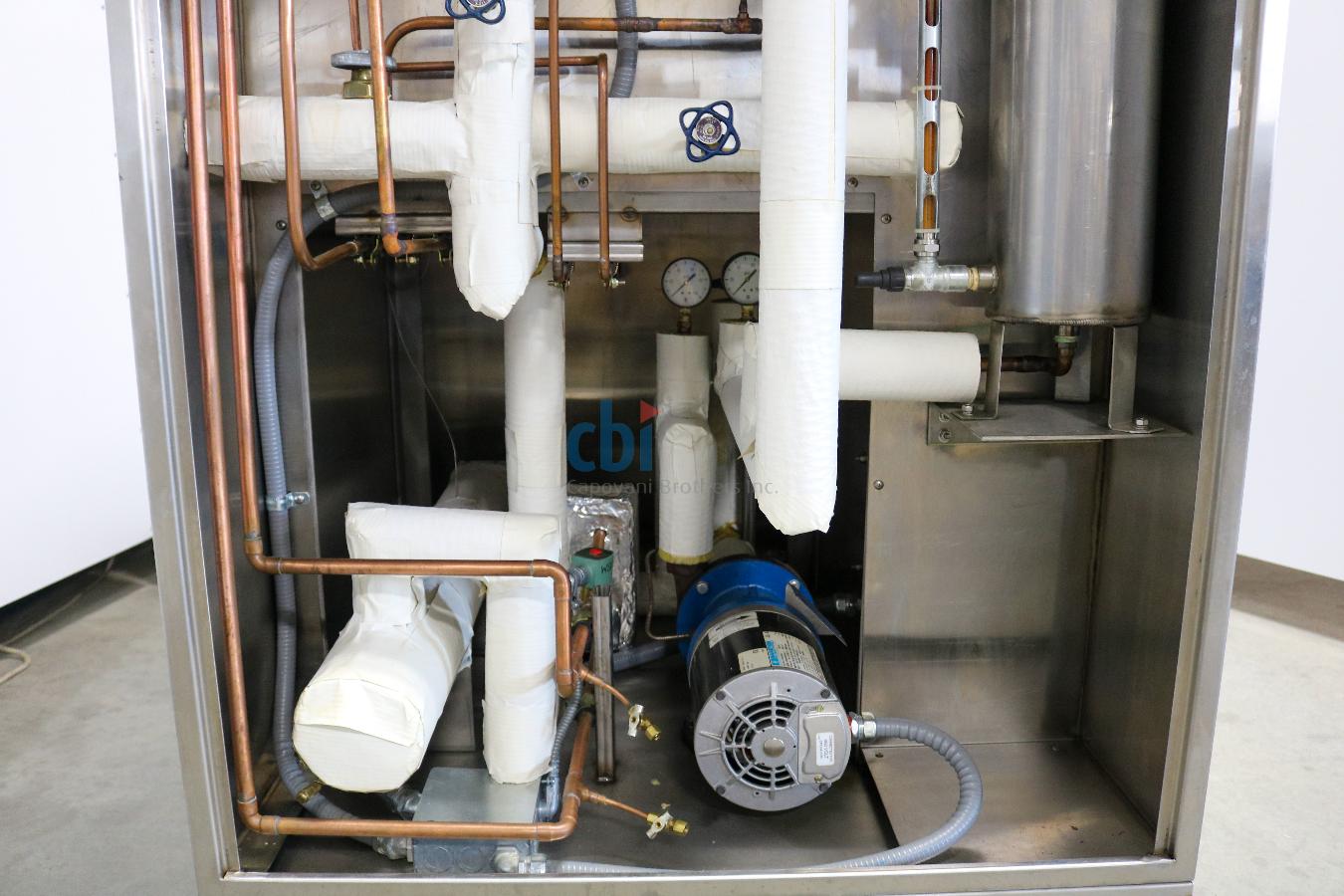

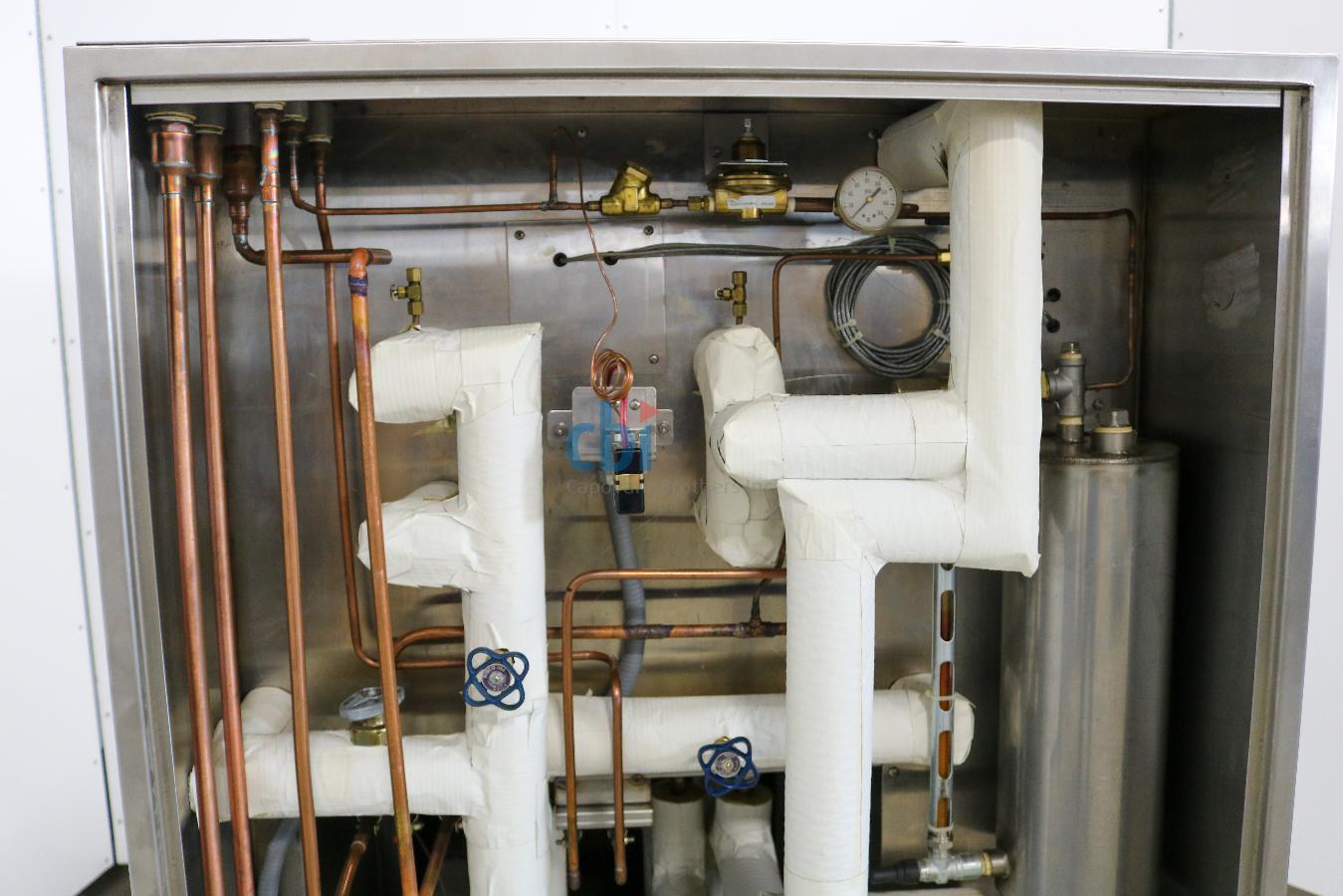

Other Information	Vacuum range: Site level to 100mmHg. Vacuum pump not included Water Requirement: 10 GPM at +20°C Heating: Fluid heating, 3KW immersion heater
Power Requirements	460 V 15.0 A 60 Hz
Year of Manufacture	2002
Exterior Dimensions
Width	39.000 in (99.1 cm)
Depth	48.000 in (121.9 cm)
Height	68.000 in (172.7 cm)
Weight	1,340 lb (608 kg)
